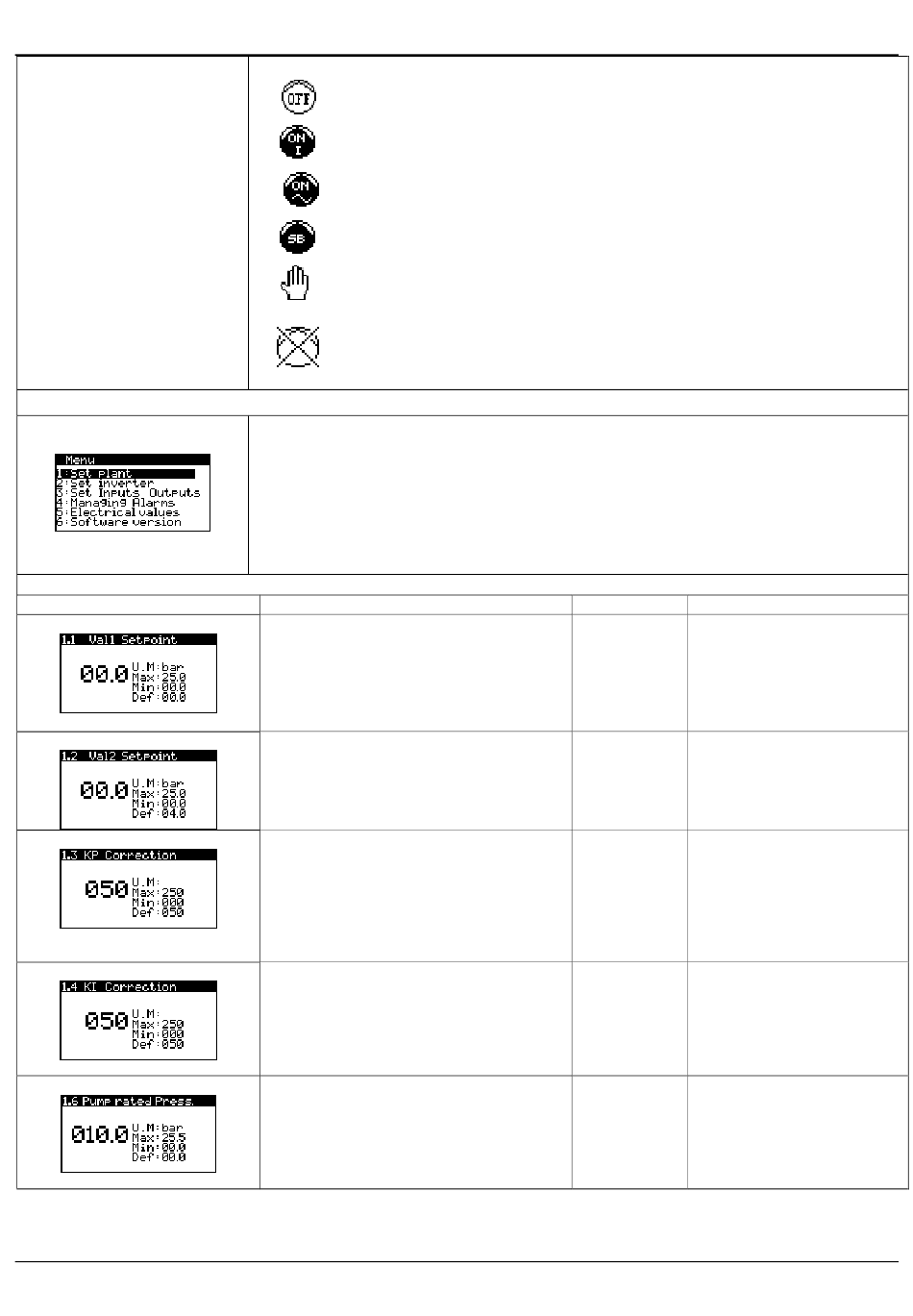

CONFIGURATION HOME
PAGE MENU
Visualization
ENGLISH
Key to electropump status:
- = all electropump operation excluded.
- = electropump supplied by the inverter.
- = electropump supplied by the mains.
- = electropump in stand-by ready to go.
- = electropump supplied by the operator in manual mode.
- = electropump excluded with permanent alarm.
Submenu SET PLANT
Viewing page of the configuration menu.
1: Set plant
2: Set inverter
3. Set inputs outputs
4: Managing Alarms
5: Electrical values
6: Software version
Submenu SET IMPIANTO – FREE ACCESS
Description
1.1 Reference pressure 1
Pressure set-point in bar, to be kept constant.
1.2 Reference pressure 2
Pressure Setpoint 2, to be kept constant,
with reference to the remote control R.C.
Page active only if is set "Change P. Set"
for the digital input (3.1)
1.3 KP correction
Instantaneous correction of error of the
system instantaneous pressure and the
reference pressure.
IF CONTROL
INVERTER SINCE 24A OR HIGHER,
SET AT 10
1.4 KI correction
Integral part of the error between the
reference pressure and the real pressure.
1.6 Pump rated pressure
Pump rated pressure in bar, at 0 litres and at
50 Hz.
Page active only plants stopped.
00.0 - 25.5 bar
00.0 - 25.5 bar
PANEL WITH
000.0 - 025.5 bar
49
Field
000 - 250
000 - 250
010.0 bar
Default
00.0 bar
00.0 bar
050
(010)
050
