EN

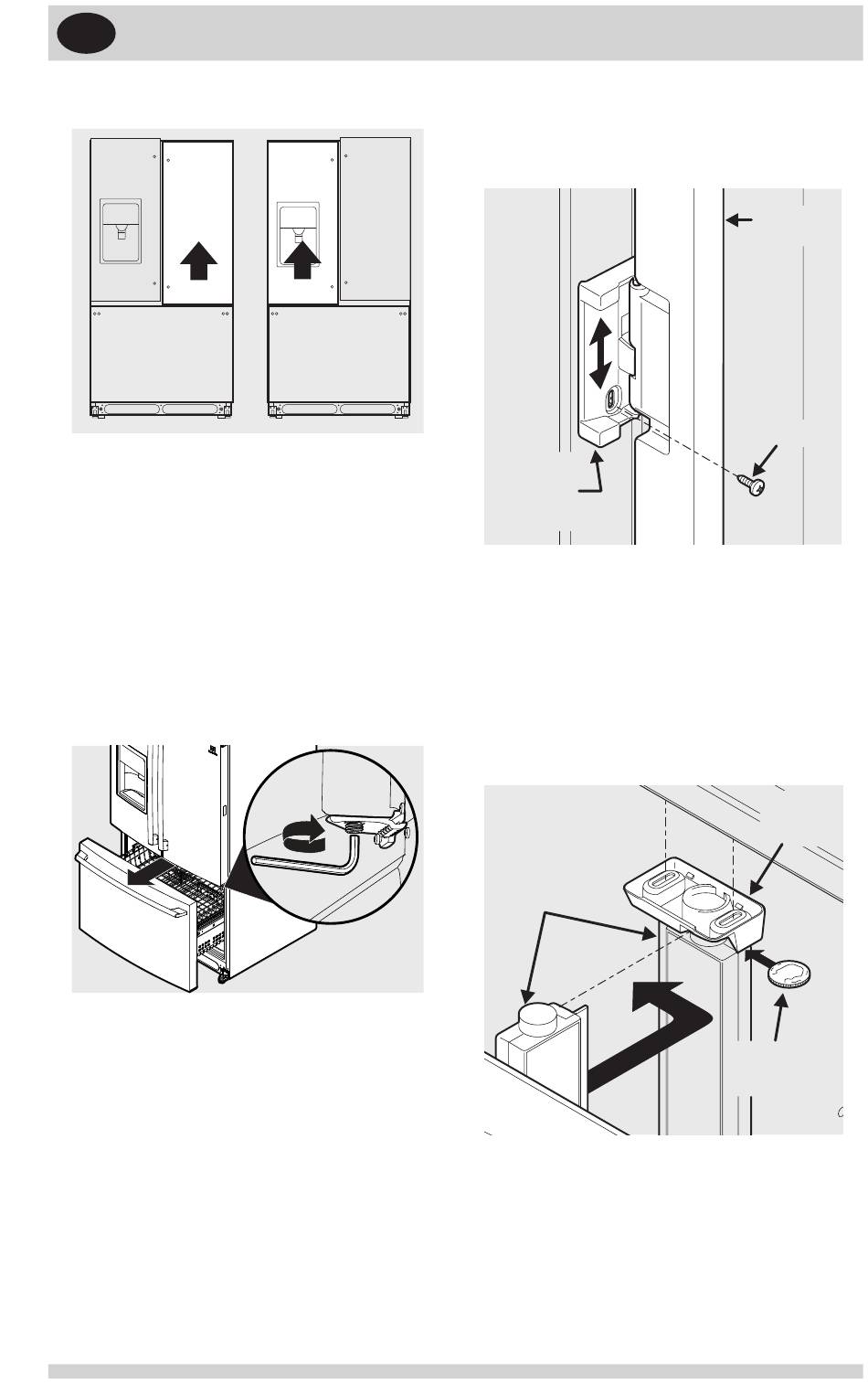

To make final door height adjustments:
Door
1. Open freezer drawer to make lower
hinge visible.
2. Insert 6mm Allen wrench into the
shaft of the lower hinge.
3. Adjust the height by turning
clockwise or counterclockwise.
Turning clockwise will lower the door.
Turning counterclockwise will raise
the door. Default setting is to the
lowest height when you receive your
appliance.
Door
Raise
INSTALLATION
To adjust the flipper mullion:
1 Loosen the screw located on the
flipper mullion hinge.
Flipper
Mullion
Hinge
Adjusting Flipper Mullion Screw
2 Adjust flipper mullion height. For
proper connection with the flipper
mullion guide, there should be a
separation about the thickness of
a coin (0.060 inches, or 1.5 mm)
between the guide and flipper
mullion.
Flipper
Mullion
Adjusting Flipper Mullion Height
3 Re-tighten screw.
Flipper
Mullion
Screw
Mullion
Guide
Thickness
of a Coin
9
