Preparation

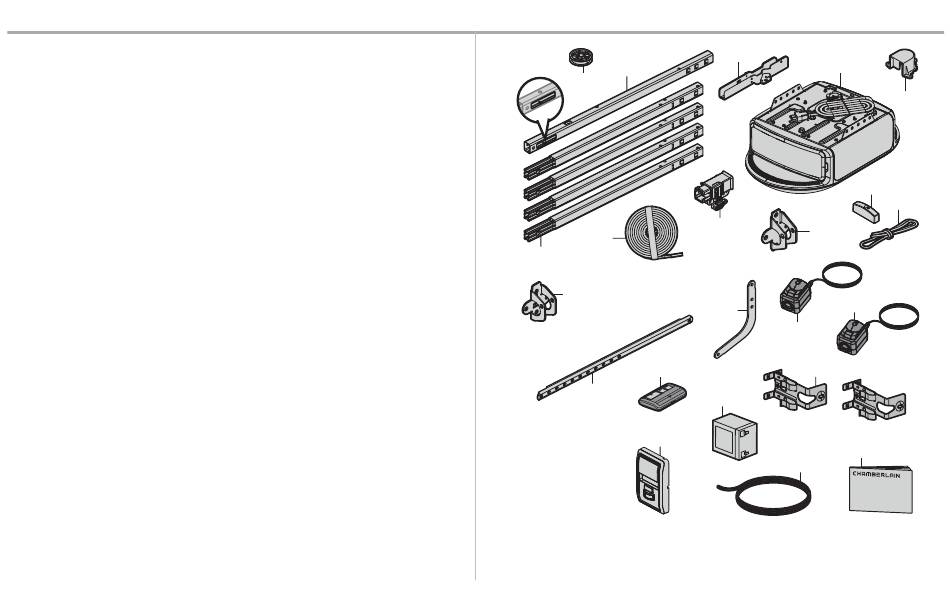

Carton Inventory

Save the carton and packing material until the installation and adjustment is complete. Instructions for the
accessories will be attached to the accessory and are not included in this manual. The images throughout this
manual are for reference only and your product may look different.
Header bracket
1.
Pulley
2.
Door bracket
3.
Curved door arm
4.
Straight door arm
5.
(Packaged inside front rail section)
Trolley
6.
Emergency release rope and handle
7.
Rail (1 front and 4 center sections)
8.
Garage door opener (motor unit)
9.
Sprocket cover and screws
10.
"U" bracket
11.
Belt
12.
The Protector System
13.
®
Safety reversing sensors with 2 conductor white and white/black wire attached: sending sensor (1),
receiving sensor (1), and safety sensor brackets (2)
Battery Backup - Models B4613TC, B6713TC, and B6753TC
14.
Remote control (2)
15.
Motion-Detecting Control Panel
16.
White and red/white wire
17.
Installation manual and all warning labels
18.
See Hardware page 8.
Go to chamberlain.com for replacement or additional accessories:
3-button remote control model 953EV-P2
Wireless keypad model 940EV-P2
8 x1
2
12
8 x4
1
5
16
5
11
6
3
4
13 x1
15
13 x2
14
17
9
10
7
7
13 x1
18
