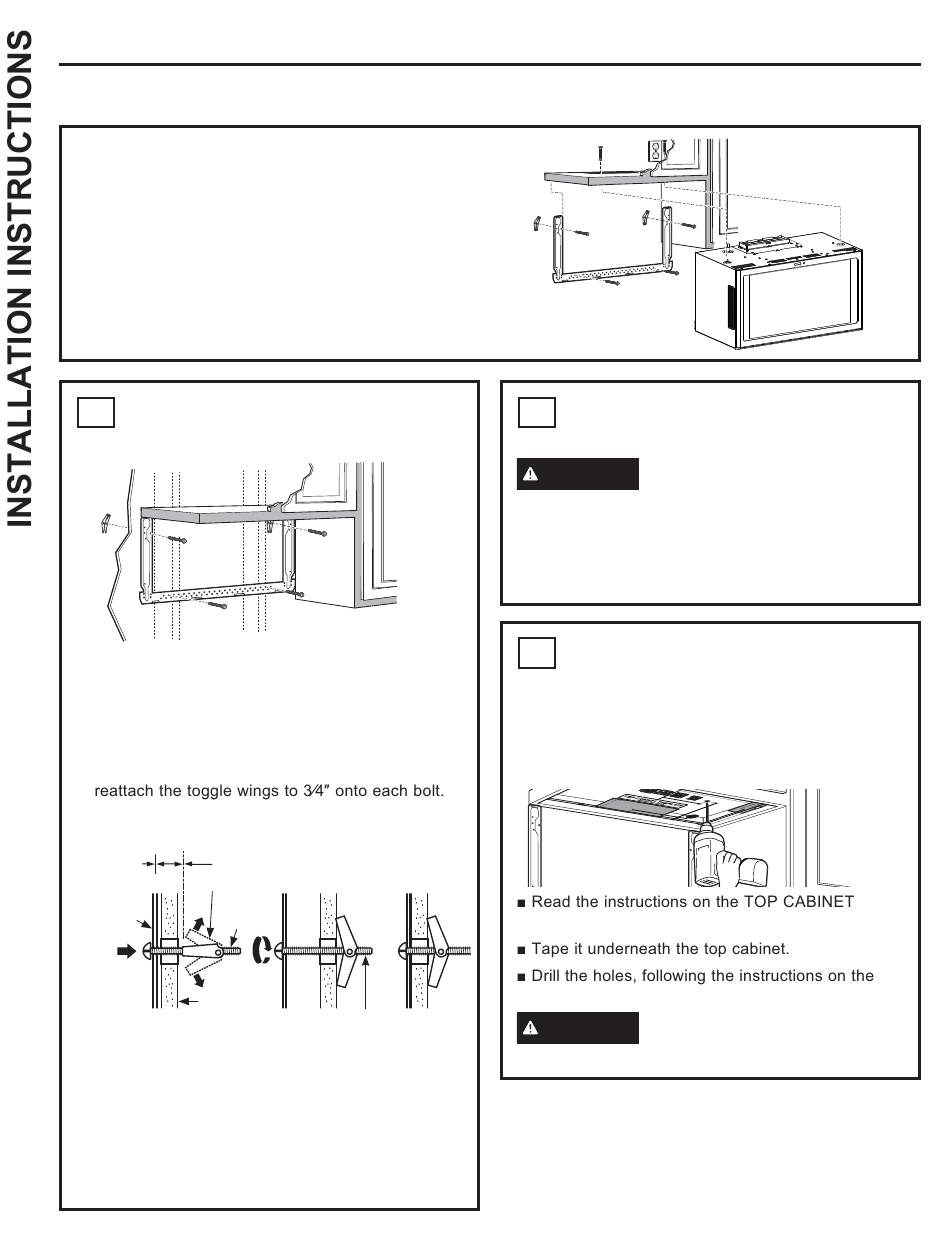

GE KITCHEN HUB UVH1301 Manuel D'utilisation Et Instructions D'installation page 22

B. RECIRCULATING
INSTALLATION OVERVIEW
B1. Attach Mounting Plate to Wall
B2. Prepare Top Cabinet
B3. Adjust Blower Exhaust
B4. Mount the Kitchen Hub™
B5. Filters
B6. Finalize Installation
B1
ATTACH THE MOUNTING PLATE
TO THE WALL
Attach the plate to the wall using toggle bolts. At
least one wood screw must be used to attach the
plate to a wall stud.
1. Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through
the holes designated to go into drywall and
To use toggle bolts:
Toggle Wings
Mounting
Plate
Wall
3. Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall to
mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet or the horizontal
level line when pushed flush against the wall and
that the plate is properly centered under the cabinet.
22
Installation Instructions
(Non-Vented Ductless)
Spacing for Toggles More
Than Wall Thickness
Toggle
Bolt
Bolt End
B1
ATTACH THE MOUNTING PLATE
TO THE WALL (Cont.)
CAUTION
Be careful to avoid pinching
fingers between the back of the mounting plate
and the wall.
4. Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
B2
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws
and a hole large enough for the power cord to fit
through.
TEMPLATE.
TOP CABINET TEMPLATE.
CAUTION
Wear safety goggles when
drilling holes in the cabinet bottom.
49-2000492 Rev. 2
