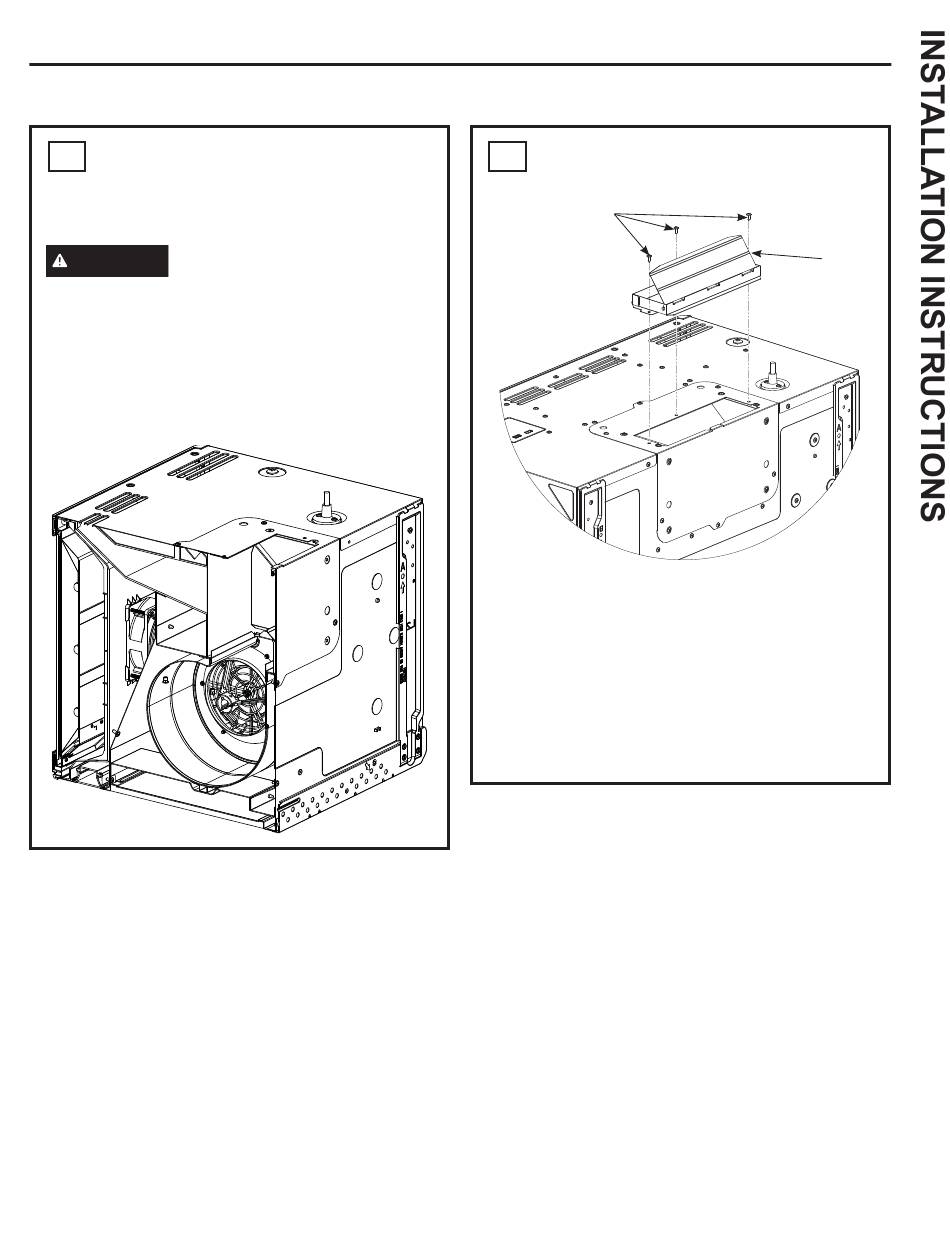

A. OUTSIDE TOP EXHAUST
A3
ADJUST BLOWER EXHAUST
The unit is shipped in the top exhaust configuration.
If configuration is not in the top exhaust direction,
follow the steps below.
CAUTION
Wear gloves to protect against
sharp edges.
1. Remove damper mounting plate and diverter.
2. Remove diverter from angled position and reinsert
vertically as shown.
3. Reattach the damper mounting plate with opening
on top of unit as shown.
49-2000492 Rev. 2
Installation Instructions
(Vertical Duct) (Cont.)
A4
ASSEMBLE AND INSTALL
ADAPTOR
Screws
1. Remove 3 screws shown above. Position the
damper on top of the damper mounting plate and
secure with removed screws.
2. Remove the tape from the damper. Make sure
that the damper pivots easily before mounting
the unit.
You will need to make adjustments to assure
proper alignment with your house exhaust duct
after the unit is installed.
Damper
19
