4.7. Installing the infrared control unit

For installation, commissioning and operation, observe the manual which
is included with the control unit. The supplied control unit only supports
the "intensity regulation" operating mode.
Connecting the power supply unit
The power supply unit of the control unit is placed under the cabin bench. Guide
the mains plug through the opening in the rear wall to the outside, and connect
the cables as described below.
Heating group 1: Back heater, IR heat panel (via switch)
Heating group 2: Front heater

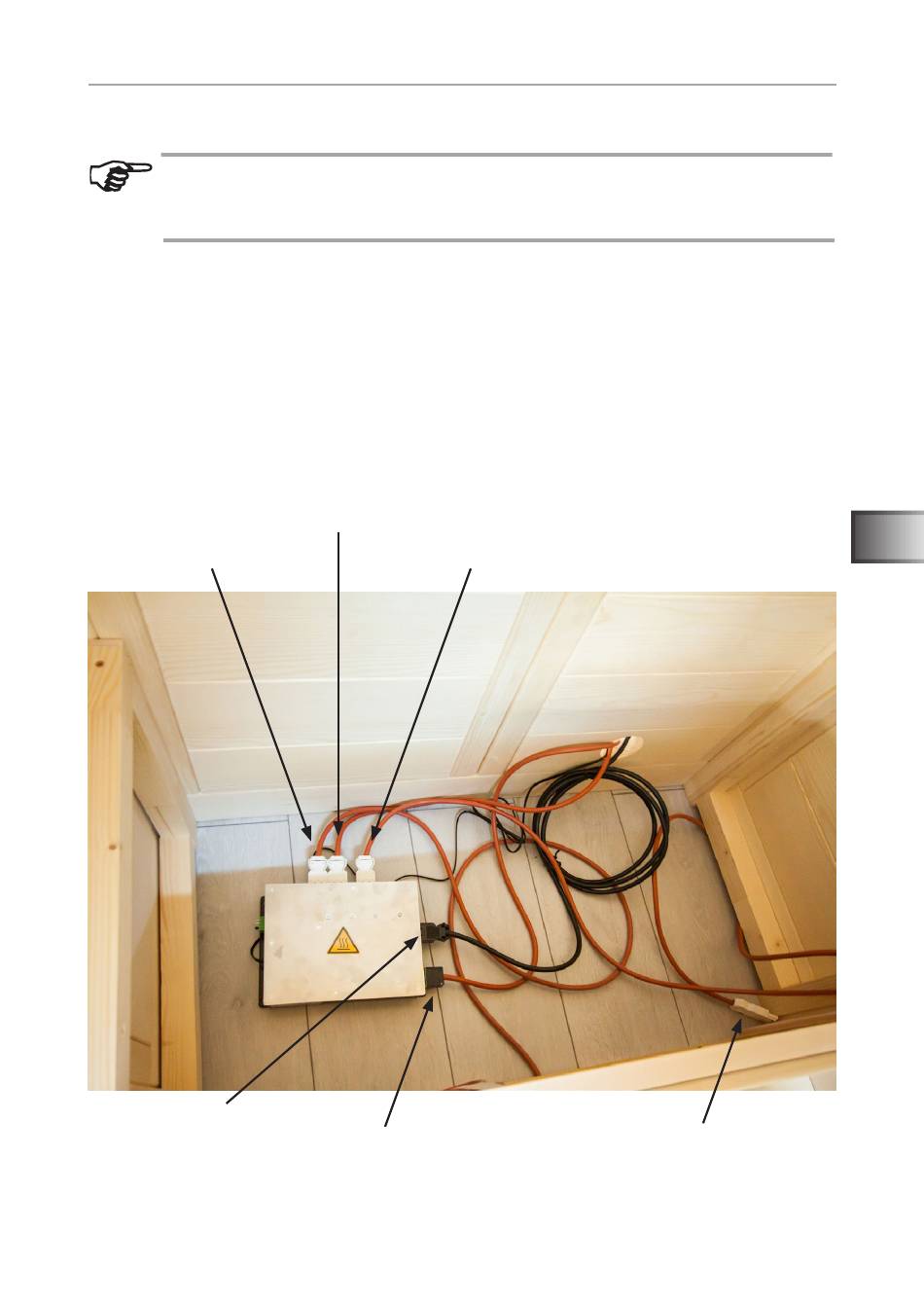

Fig. 26: Example for connection
Back heater
230 V connection cable
Switch - heat panel
Front heater
LED strip
p. 27/40
Switch - heat panel
