Compact 100-B Pressing Tool
Description, Specifications and
Standard Equipment
Description
The Compact 100-B Pressing Tool, when used with appro-
priate jaw sets, is designed to mechanically press fittings
onto tubing to create a water-tight and permanent seal.
When the switch on the Compact 100-B is depressed, an
internal electric motor powers a hydraulic pump which
forces fluid into the cylinder of the tool, forcing the ram for-
ward and applying thousands of pounds of pressing force
onto specially designed fittings.
The entire cycle duration is approximately seven (7) sec-
onds. Once the cycle begins to deform a fitting, it will auto-
matically continue until completion, even if the trigger
switch is released. LED displays on the top of the tool indi-
cate problems such as improper temperature, open jaw
mounting pin or maintenance required.
Jaw
Compact Jaw Arm
Sideplate
Jaw
Compact
Mounting
Scissor Style
Pin
Jaw Set
Switch

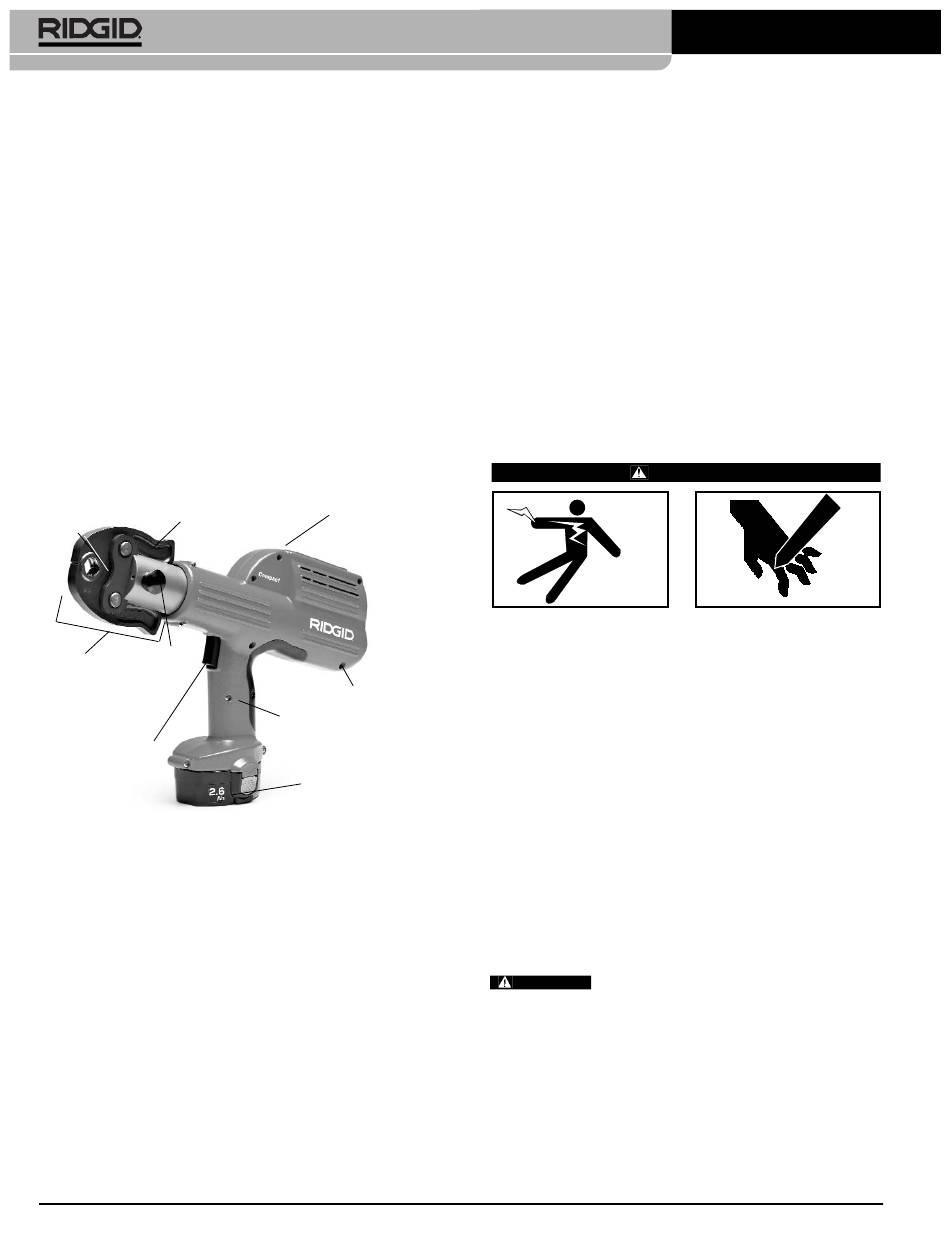

Figure 1 – Compact 100-B Pressing Tool and Compact
Series Jaw Set

Specifications

Compact 100-B Pressing Tool:
Motor
Voltage ...................14.4 VDC
Amperage ...............25.6Amp
Power .....................325 Watts
Weight ........................7.5 lbs. (3.4 Kg) with Battery
5.7 lbs. (2.6 Kg) without Battery
Ram Force.....................5,400 Lbs. (24kN)
Operating Temperature
Range...............................32° F to 122° F (0° C to 50° C)
4
LED Display
Panel (Top)
Tool Housing
Handle
Battery
Ridge Tool Company
NOTE! The Compact 100-B Pressing Tool and Compact
Jaw Sets are protected under various U.S. and
international patents and patent applications.
NOTE! RIDGID jaw sets are offered in two "series"
• Standard Series
• Compact Series
These jaw sets are not interchangeable. That is,
only compact series jaw sets will work with the
Compact 100-B Pressing Tool. Similarly, only
standard series jaw sets will work with standard
series tools. Please refer to the standard series
tools' (320-E, CT-400) operator's manuals for
further information on these tools and jaws.
Inspecting The Compact
Pressing Tool and Jaw Sets
WARNING
To prevent serious injury, inspect the Compact
100-B Pressing Tool, battery charger and Compact
Jaw Sets. Never use the Compact 100-B Jaw Set
with damaged or missing parts. The following
inspection procedures should be performed on a
daily basis:
1. Make sure the Compact 100-B Pressing Tool battery
is removed.
2. Inspect the tool housing and switch for damage.
Check for damage such as cracks in the tool housing
and exposed wires.
3. Inspect the jaw sets. If dirty, clean jaw sets. Refer to
Maintenance Section for cleaning instructions. Failure
to properly maintain jaws can result in an improper
connection that can lead to extensive property dam-
age. If any cracks are found, discard the damaged
assemblies and obtain replacement.
Always discard the entire assembly. Never
WARNING
replace individual components except for jaw return
springs. Failure to replace the entire assembly may result
in component failure and serious injury.
4. Clean any oil, grease or dirt from the tool handles.
This reduces the risk of the tool slipping from your grip.

Compact 100-B Battery Charger

Inspect the power cord and plug for damage. If the cord or
plug is damaged, do not use the charger until the cord is
