Sony PS3 Guide De Démarrage Rapide

Included Items
IMPORTANT
Read safety information in the
Safety and Support manual before
installing the PS3™ system.
Install System
HD Playback
Viewing an HD movie from a Blu-ray Disc™
requires an HDMI cable. For information
about HDMI video output settings, visit:
http://us.playstation.com/support/
HDMI cable (sold separately) and compatible TV are
required for High De nition output.
Initial Setup and
Inserting Disc
Internet Connection
SM
Sign-Up
For free registration*,
begin by selecting
[PlayStation Network]
®
on the XMB ™ menu.
*User is responsible for all applicable Internet fees.
Some services or features may require additional fees.
Registration is also possible via web browser at
www.us.playstation.com
For More Information
The examples shown are not representative of actual screens.
" ", "PlayStation" and "DUALSHOCK" are registered trademarks of Sony Computer Entertainment Inc. "
"XMB" and "xross media bar" are trademarks of Sony Corporation and Sony Computer Entertainment Inc. "SONY" and "
© 2011 Sony Computer Entertainment Inc. All rights reserved.

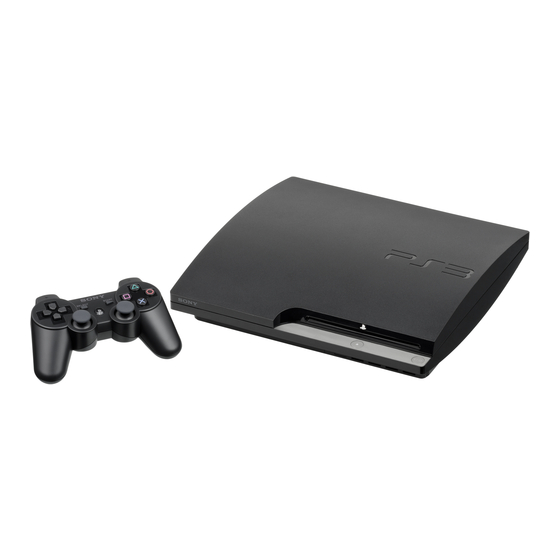

PlayStation 3 system
®
USB connectors Disc slot Eject
button
AV cable AC power cord
Connect your PS3™ system to a TV
AV MULTI OUT AV cable
connector
1. Connect the AV cable to the AV MULTI OUT connector on your PS3™
system and the corresponding colored inputs on your TV.
2. Turn on the TV and set the display to the appropriate input that the AV
cable is connected to.
Perform initial setup
1. Follow the on-screen instructions to enter settings for system language, time zone, date and time, and user name.
2. When initial setup is complete, you will have the option to continue with Internet connection settings.
Wired Connection
LAN Ethernet cable To router
connector (sold separately)
1. Connect an Ethernet cable to the LAN connector
on the PS3™ system.
2. Select (Settings) (Network Settings) [Internet
Connection Settings].
3. Select [Easy] and save settings.
1. Choose [Create New Account].
Select [Use Existing Account] if you already have a
PlayStation®Network account.
3. Create an Online ID for PlayStation®Network.
Advanced Quick Start Guide
us.playstation.com/support/PS3qsg
Support Knowledge Center
us.playstation.com/support
" and " " are trademarks of the same company.
" are registered trademarks of Sony Corporation. "Blu-ray Disc™" and "Blu-ray™" are trademarks of the Blu-ray Disc Association.
Power
LAN connector HDMI OUT
button
USB cable Quick Start Guide
Safety and Support Manual
Connect the AC power cord
AC power cord
AC IN
TV
connector
1. Connect the AC power cord to the AC IN connector on your PS3™ system
and an electrical outlet.
2. Press the power button on your PS3™ system to turn the system on.
Wireless Connection
1. Select (Settings) (Network Settings)
[Internet Connection Settings].
2. Enter required user information.
4. Visit PlayStation®Store!
Online User's Guide
manuals.playstation.net/document/
DUALSHOCK
L2 button
L1 button
Directional
buttons
AV MULTI OUT AC IN
connector connector connector
Left stick/
L3 button*
*The L3 and R3 buttons function when the sticks are pressed.
Register (pair) the controller with your
PS3™ system
USB connector
1. Connect the larger side of the USB cable to one of the USB connectors
on your PS3™ system.
2. Connect the smaller side of the USB cable to the USB connector on the controller.
3. Press the PS button on the controller to pair it with your system.
Insert discs with the label side facing up
Use the directional buttons on the controller to navigate the XMB ™ (XrossMediaBar) menu to locate inserted media.
2. Select the items above.
CECH-3001A
CECH-3001B
Printed in China
Imprimé en Chine
3 wireless controller
®
USB connector
Port indicators R2 button
R1 button
button
button
button
button
PS button
Right stick/
SELECT START
R3 button*
button button
USB cable
3. Select appropriate security settings.
4. Enter security key.
5. Save settings.
4-291-323-11(1)
SM
