3 Parts included
Parts included
After unpacking all the parts, check for any damage in
Parts included
transit and for completeness of delivery.
¡ 1x front range toe kick
¡ 1x left range toe kick
¡ 1x right range toe kick
¡ 4x black screws
4 Tools and parts needed
Tools and parts needed
Prepare these tools and accessories before you start to in-
Tools and parts needed
stall your accessory.
¡ Phillips head screwdriver
¡ Gloves
5 Installing range toe kick
Installing range toe kick

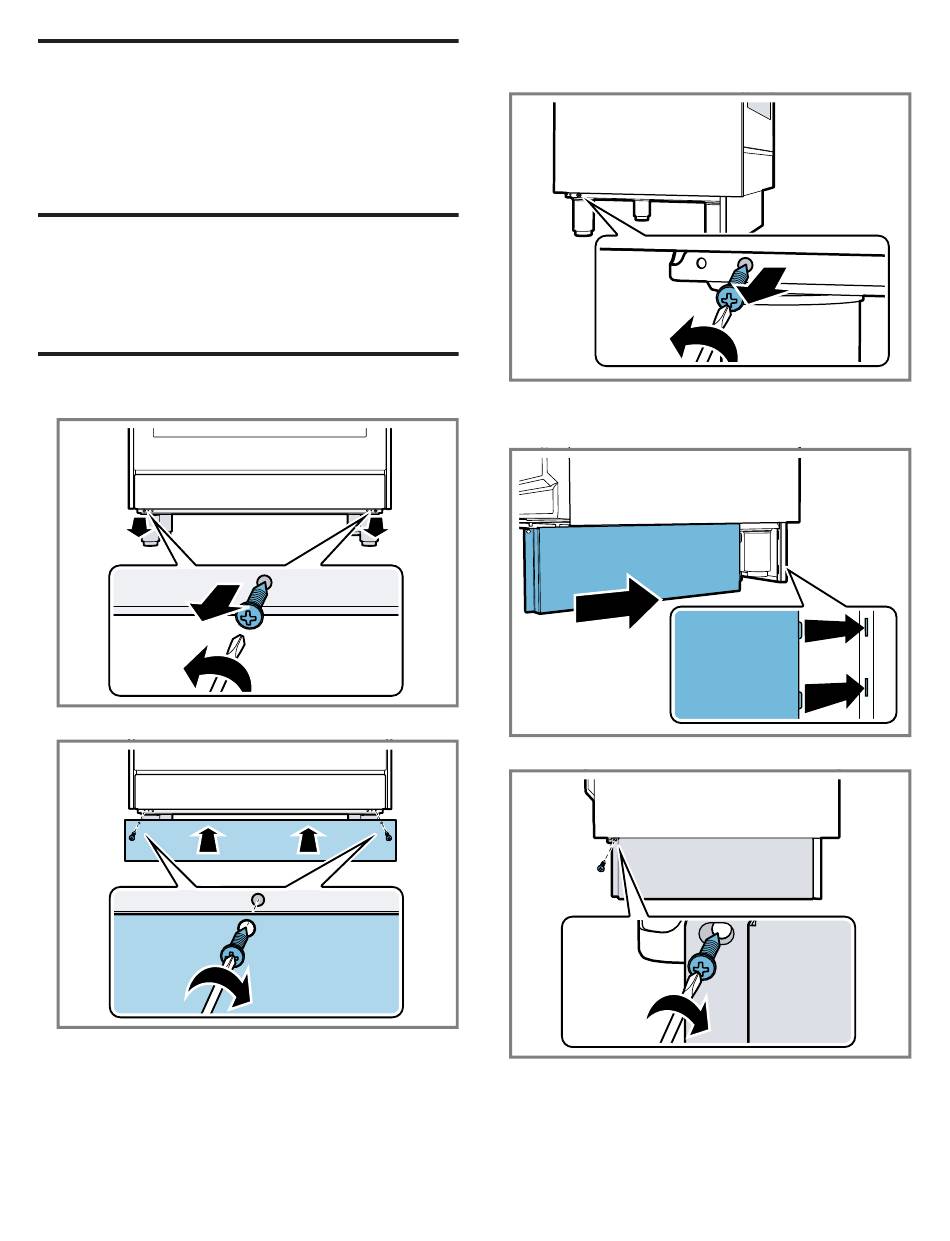

Remove the screws indicated.
1.
Installing range toe kick
Fix the front toe kick plate using black screws.
2.
Remove screw shown in diagram below from each side
3.
in preperation to install left and right toe kick support
brackets.
Take the right/ left side toe kick plate and rotate it in or-
4.
der to insert the tabs into the slots of the front toe kick
plate.
Fix the right/left toe kick plate using black screw.
5.
Parts included en-us
5
