Installation
Final Check Lists
ELECTRICAL CONTROL COMPARTMENT
115 volt single phase to unit.
Remove side panel
j
Reset high limit thermostats
j
Check fuses
j
Reinstall side panel
j
PLUMBING FINAL CHECK
Incoming water pressure within 50 PSI (mini-
j
mum)
Water solenoids are properly bracketed and
j
not leaking
24" atmospheric standpipe vent/drain proper-
j
ly installed
Water feed lines intact without leaks
j
Spray hose connected properly
j
Fill
Solenoid
Washer
Hose and Spray

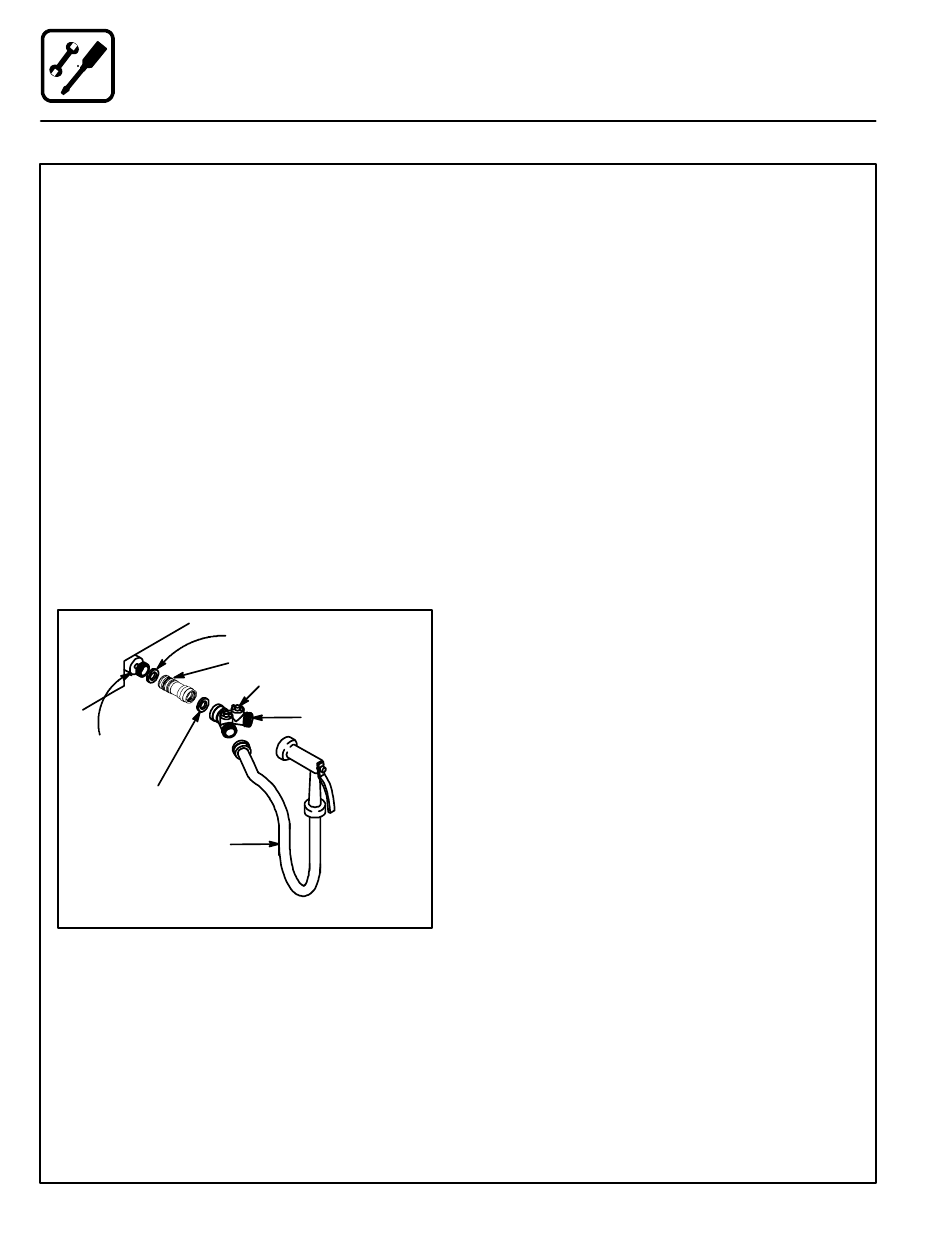

Spray Hose Connection
Figure 15
GAS FINAL CHECK
Inlet pressures to the appliance are 7---14" WC
j
for Natural gas or 12---14" WC for Propane gas
Manifold pressures are 3.5" WC for Natural
j
gas or 10.0" WC for Propane gas
Gas line properly secured
j
Washer
Regulator Assembly
"Y" Fitting
Cold water supply
Check for leaks using leak detection solution
j
Units with casters must use the gas hose re-
j
straint provided with the flexible hose
OVEN OPERATIONAL TESTS
NOTE: Checks to be made by customer or autho-
rized service agent.
Cool Down Mode (if applicable)
Turn Switch to COOL DOWN position and verify
j
that the motor operates with the door open.
Combi Mode (if applicable)
Turn to COMBI mode, set thermostat to 350_F
(177_C) and verify:
Steam generator flushes and fills
j
Steam generator preheats to 175_F (79_C)
j
then switches to hot air
When hot air reaches 350_F (177_C) hot air
j
shuts off and steam comes on
Steam Mode (if applicable)
Remove control panel, set to STEAM mode and
verify:
Check timer operation in both positions
j
1. Set timer in position other than ON, timer
should count down
2. Set timer in ON position, oven should op-
erate continuously without timer
Run light (power light) turns on
j
Unit produces steam, window fogs, door seal
j
does not leak
Quenching system working
j
Hot Air Mode (if applicable)
Turn to HOT AIR mode and set thermostat to
400_F (205_C) and verify:
Heat demand light is on
j
Oven is heating properly
j
Heat lights shuts off at 400_F (205_C) and
j
oven maintains 400_F (205_C)
18
