Installation

Baffle Installation

NOTE: Does not apply to BCS-8G convection
steamer.

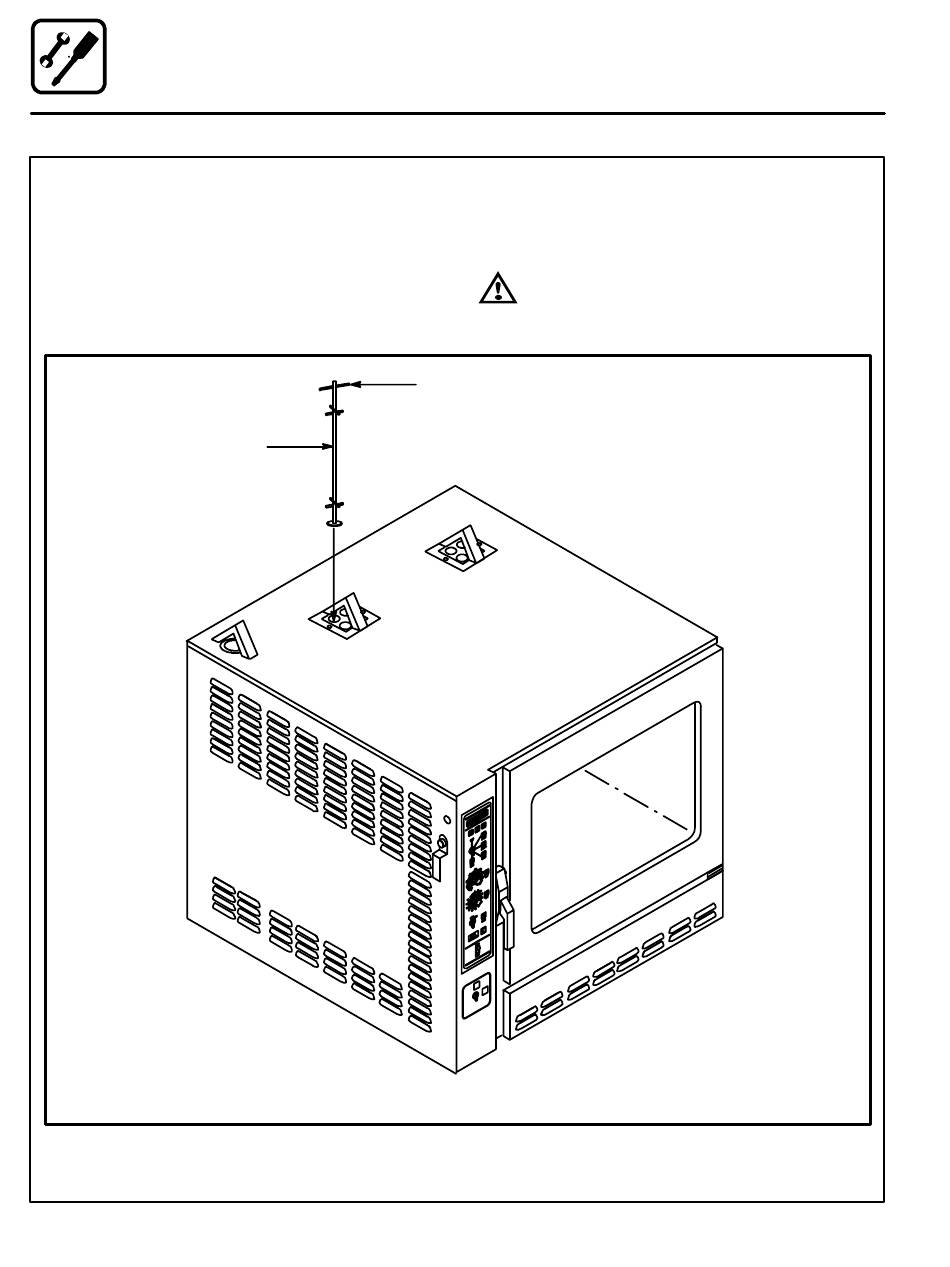

1. Insert a baffle into each heat exchange tube as
shown. There are eight baffles per oven. The
baffles are packed in a carton inside the oven
cavity.
Baffle
NOTE: The baffle support pin should be rest-
ing on top of the heat exchange tube
when the baffle is fully inserted.
WARNING!!
Failure to install the baffles will result in
reduced heating efficiency of the oven.
Support Pin
COS-8G Shown
Figure 7
