Installation
One-Piece Doors Only

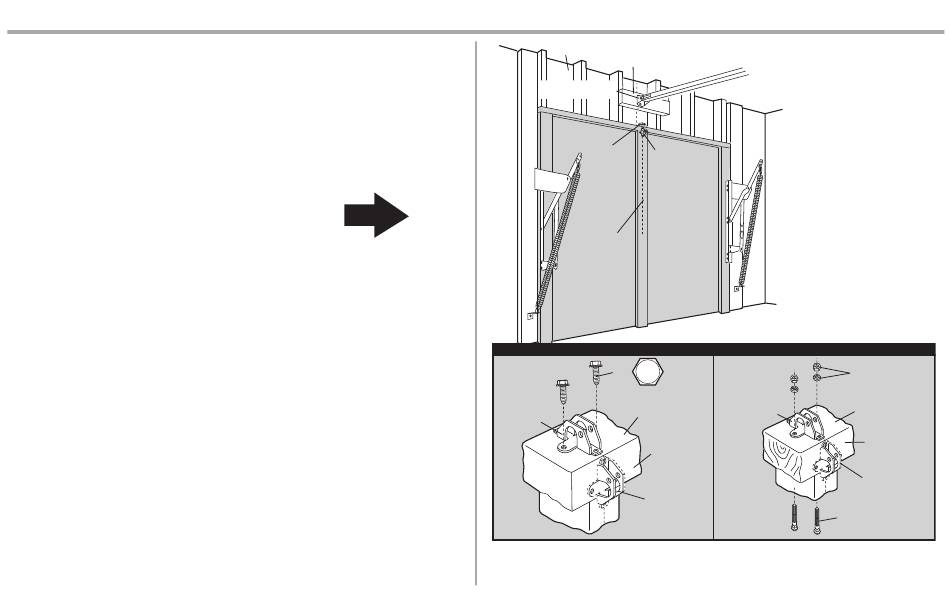

1. Center the door bracket (O) on the top of the door, in line with the header bracket as shown.
2. Mark either the left and right, or the top and bottom holes.
Metal Doors:
Drill 3/16" pilot holes and fasten the bracket with the self-threading screws (OO) provided.
l
Wood Doors:
Drill 5/16" holes and use 5/16"-18x2" carriage bolts, lock washers and nuts (not provided) or 5/16"x1-1/2"
l
lag screws (not provided) depending on your installation needs.
NOTE: The door bracket may be installed on the top edge of the door if required for your installation. (Refer to the
dotted line optional placement drawing.)
For one-piece door installation continue to page 9
