LI 9TU - LI 12TU
4

Accessories

4.1 Remote control

A remote control adds convenience and is available as a special
accessory. Operation and menu navigation are identical to
those of the heat pump manager. Connection takes place via an
interface (special accessories) with RJ 12 Western plug.
NOTE
In the case of heating controllers with a removable operating
element, this can also be used directly as a remote control.
4.2 Building management
technology
The heat pump manager can be connected to a building man-
agement system network via supplementation of the relevant
interface plug-in card. The supplementary installation instruc-
tions of the interface card must be consulted regarding the
exact connection and parameterisation of the interface.
The following network connections can be made on the heat
pump manager:
Modbus
EIB, KNX
Ethernet
5

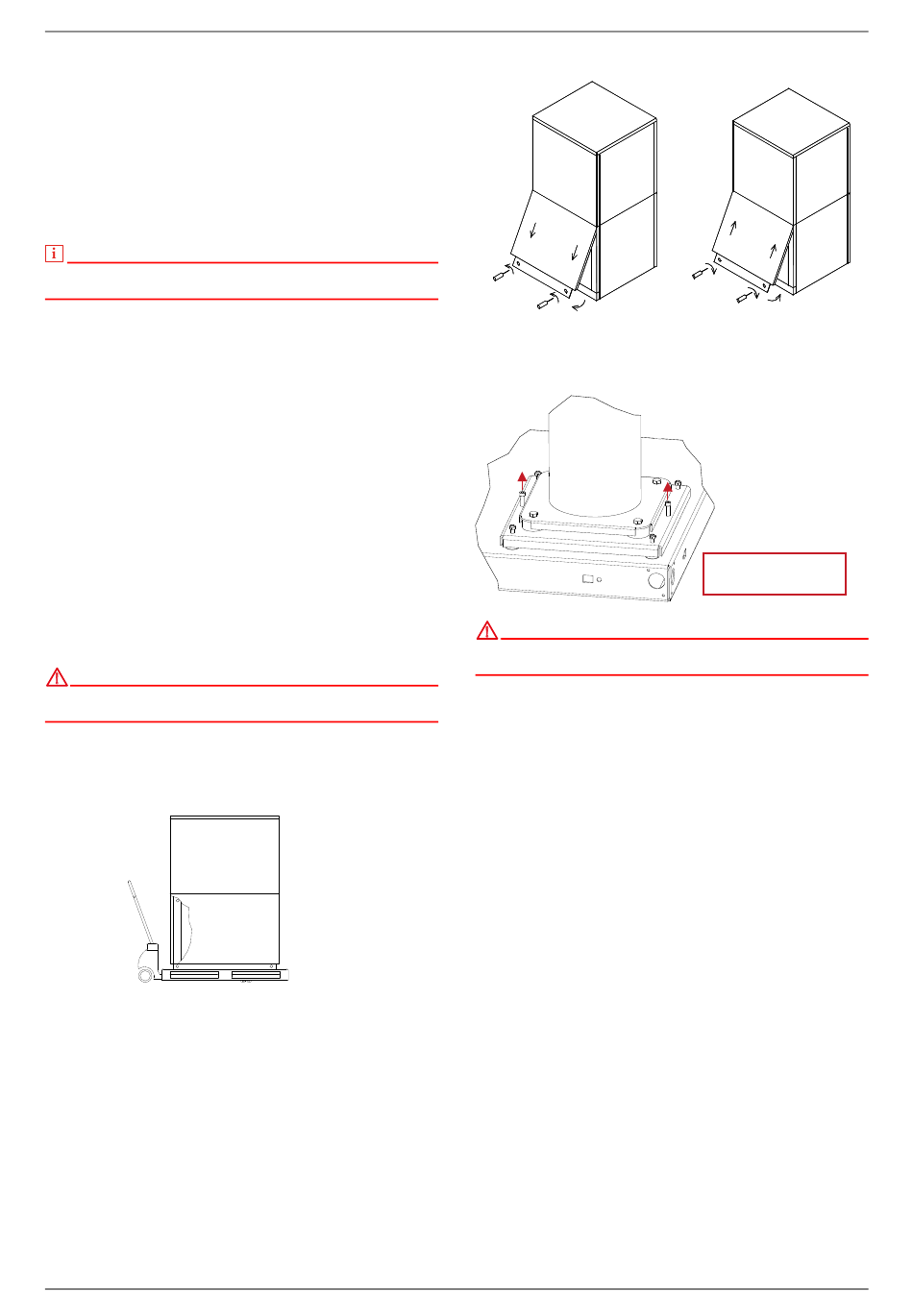

Transport

ATTENTION!
When transporting the heat pump, ensure that it is not tilted
more than 45° (in any direction).
Use a pallet for transporting the heat pump to the final installa-
tion location. The basic device can be transported with a lift
truck, hand truck or by means of 3/4" pipes fed through the
holes in the base plate or frame.
The heat pump and the transport pallet are joined by four tran-
sit bolts. These must be removed.
Before using the transport holes in the frame, it is necessary to
remove the lower side panel assemblies. This is done by loosen-
ing each of the two screws at the base and then withdrawing
the panels by unhooking them from above. Rehang the panels
by gently pushing them in an upwards direction.
Be careful not to damage any components when inserting the
pipes through the frame.
At the installation location, 8 black dust caps, which are in-
cluded in the packaging of the device, must be snapped into
the transport holes.
www.gdts.one
3.
1.
Opening the cover
After the transport, the transport securing device is to be re-
moved on either side at the bottom of the unit.
ATTENTION!
The transport securing device is to be removed prior to
commissioning.
452160.66.74 · FD 9912
3.
3.
1.
2.
Remove/screw in
transport lock
English
1.
1.
3.
2.
Closing the cover
EN-5
