Scope of Delivery

3.1 Basic Device

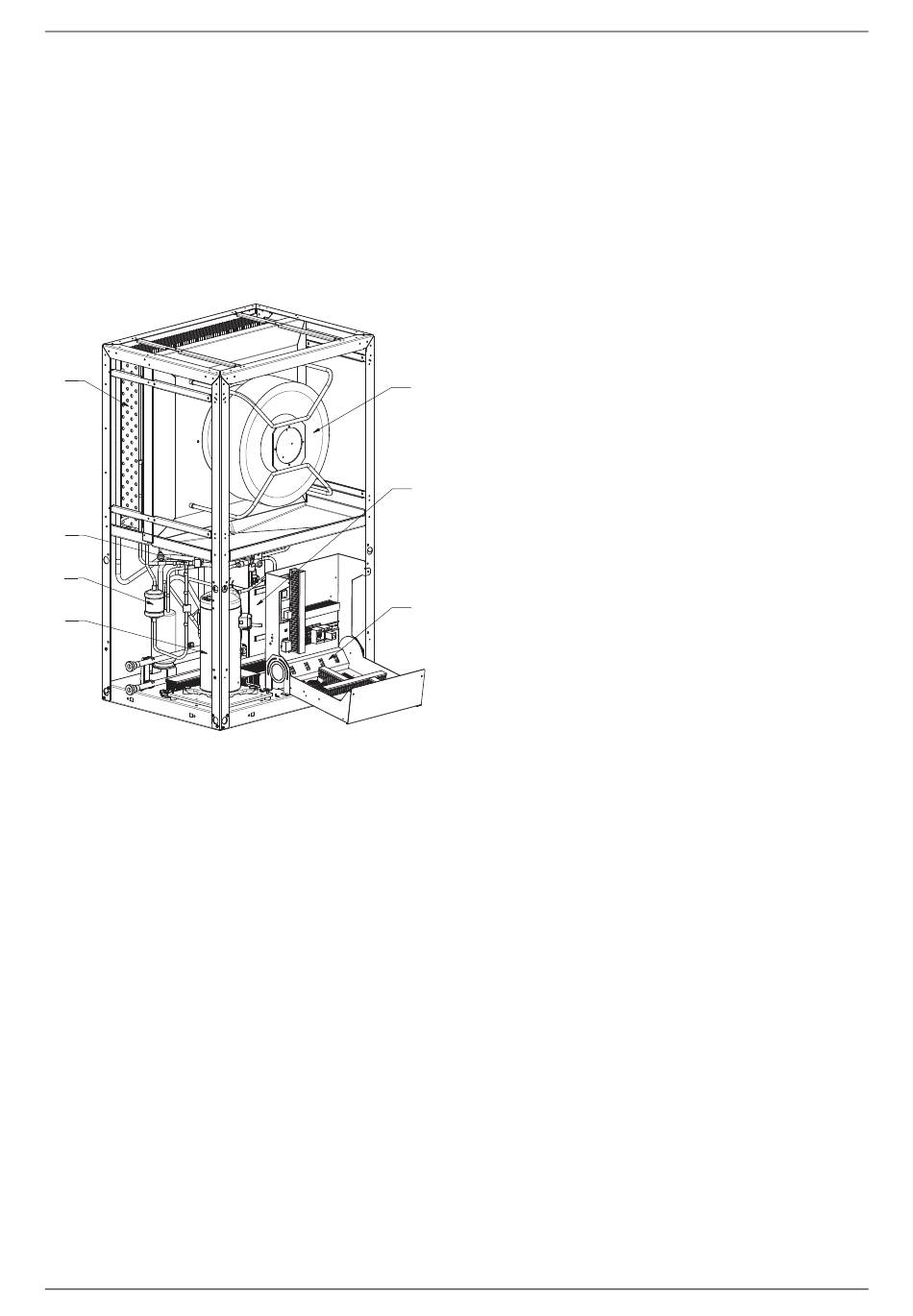

The heat pump contains the components listed below.
The refrigeration circuit is "hermetically sealed" and contains
the fluorinated refrigerant R410A included in the Kyoto proto-
col. Information on the GWP value and CO
refrigerant can be found in the chapter Device information. The
refrigerant is CFC-free, non-ozone depleting and non-combus-
tible.
1
2
5
7
1) Evaporator
2) Expansion valve
3) Ventilator
4)

Switch box

5) Filter dryer
6) Liquifier
7) Compressor
EN-4
3.2 Switch Box
The switch box is located in the heat pump. It can be swung out
after removing the lower front cover and loosening the fasten-
ing screw located in the upper right-hand corner.
The switch box contains the supply connection terminals, as
well the power contactors, the soft starter unit and the heat
pump manager.
equivalent of the
2 The heat pump manager is a convenient electronic regulation
and control device. It controls and monitors the entire heating
system on the basis of the external temperature, including hot
water preparation and safety systems.
The customer must install the external temperature sensor,
which is included in the scope of supply of the heat pump man-
ager together with the necessary fixing accessories.
The enclosed operating instructions describe the function and
3
use of the heat pump manager.

3.3 Accessories pack

On top of the heat pump:
6
1 x insulating mat, duct connection
1 x small sealing ring, air intake
1 x large sealing ring, air outlet
In the switch box:
1 x external sensor with mounting material
4
Under fan:
8 x vent plugs ø 30 - black
Outside the packaging:
1 x installation and operating manual
