1

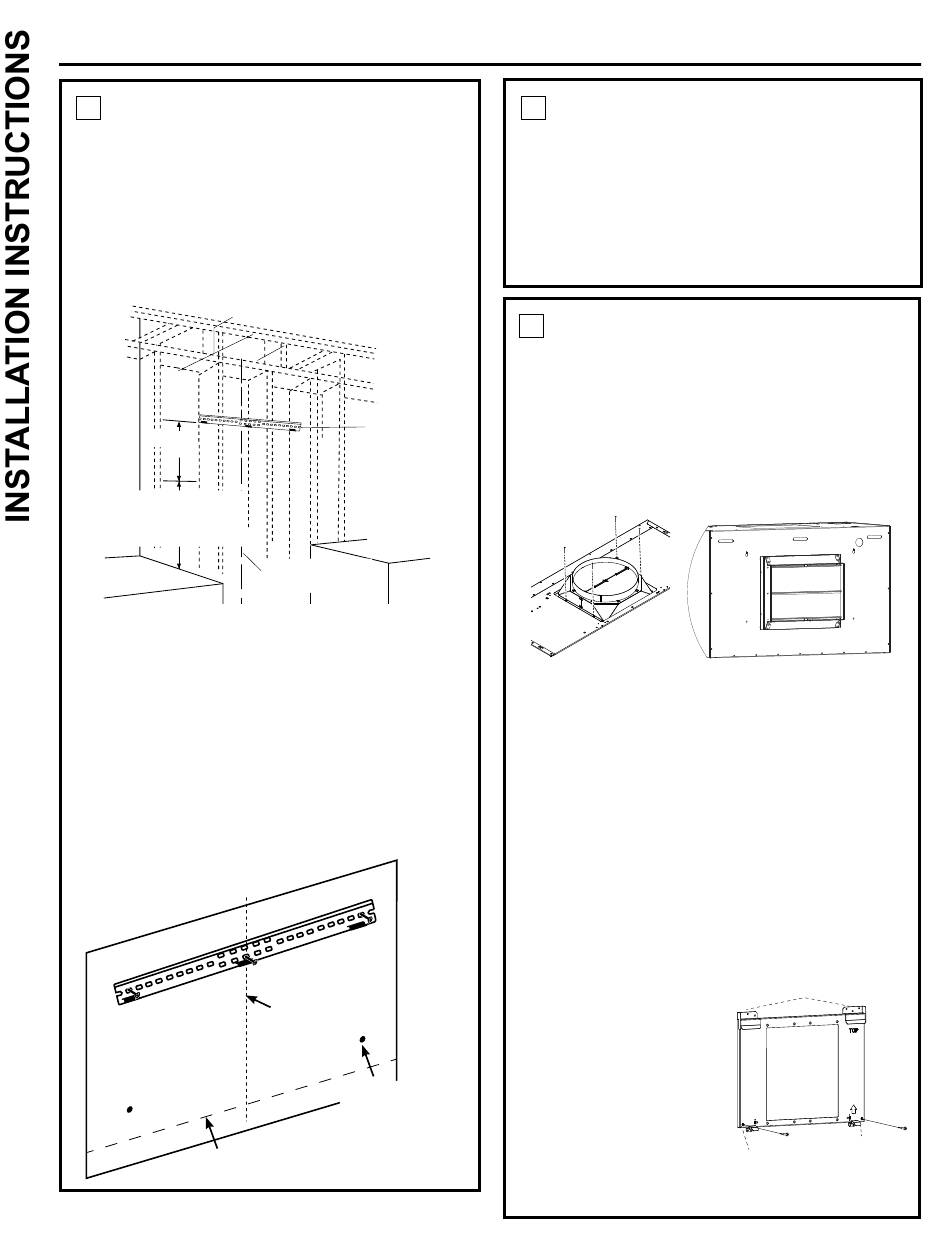

INSTALL HOOD SUPPORT
IMPORTANT: Framing must be capable of
supporting 100 lbs for 30" and 36" models and 150
lbs for 48" models.
• Locate a minimum of 2 vertical studs for the
installation bar by tapping drywall with a hammer
or use a stud finder.
• Level the installation bar and center left to right
above the marked line. Hold bar against the wall.
16-3/4"
24" minimum over electric
range or cooktop, or
30" minimum over gas
range or cooktop, and 36"
recommended maximum.
• Drill 1/8" pilot holes at the 2 vertical stud locations
through holes in the installation bracket. Secure
the installation bar with supplied screws (A) as
shown above.
Drill Bottom Mounting Hole Locations:
• Hang hood on installation bar to mark anchor
locations. Mark hole locations through the back of
the hood. NOTE: If installing to the soffit or cabinet,
push hood flush to the soffit or cabinet before
marking screw hole locations.
• Remove the hood and drill 5/16" clearance holes
centered at the marks you made.
Bottom of Hood
1" = 2.5 cm; 1' = 0.3 m
18
Installation Instructions
Installation Bar
Centerline of
Installation Space
Centerline of
Installation Space
Wall Anchor
Locations
1
INSTALL HOOD SUPPORT (Cont.)
• Install wall anchors (C) by tapping the anchors
with a hammer to seat the teeth of the flanges into
the wall. This keeps anchor from rotating.
• Drive the anchor screws until the barrels crimp
against the inside of the wall.
• Remove the screws from the wall anchors before
installing the hood.
2
INSTALL DAMPER
IMPORTANT: Remove shipping tape from damper
and check that damper moves freely.
Install Top Damper:
• The motor mounting plate comes pre-installed in
the hood for top venting.
• Install the top damper to the hood body as shown
in Figure A using screws (B) from top of hood.
Figure A
Install Back Damper:
• In case of back venting through the wall, back
damper accessory UXBDA812 must be purchased
separately.
• Remove the square knockout panel on hood body
for back venting.
• Install the back damper to the hood body as shown in
Figure B using screws provided with the accessory.
• Uninstall the motor mounting plate from top
venting position. Save the screws.
• Install the metal plate provided with the accessory
to cover the opening for top damper.
• Remove the two screw knockout holes on the
motor mounting plate as shown in Figure C.
• Install the motor
mounting plate so
that arrow is pointing
upwards and on right
side.
• Slide plate into the
metal brackets and
push in until metal clips
at the bottom engage.
• Fasten the plate
through the two screw hole knockouts as shown in
Figure C. Use the two screws you saved.
Figure B
Figure C(Single motor will look different)
Metal Brackets
Metal Clips
Screw Knockouts
49-2000707 Rev. 3
