Connecting to a Macintosh or
compatible computer
Connect the RGB 2 IN connector on the front or the
RGB 1 IN connector at the rear of the monitor to the
video/audio outputs of the computer using the
supplied RGB signal cable (D-sub 15 pin ˜ D-sub 15
pin) and the supplied Macintosh adaptor.

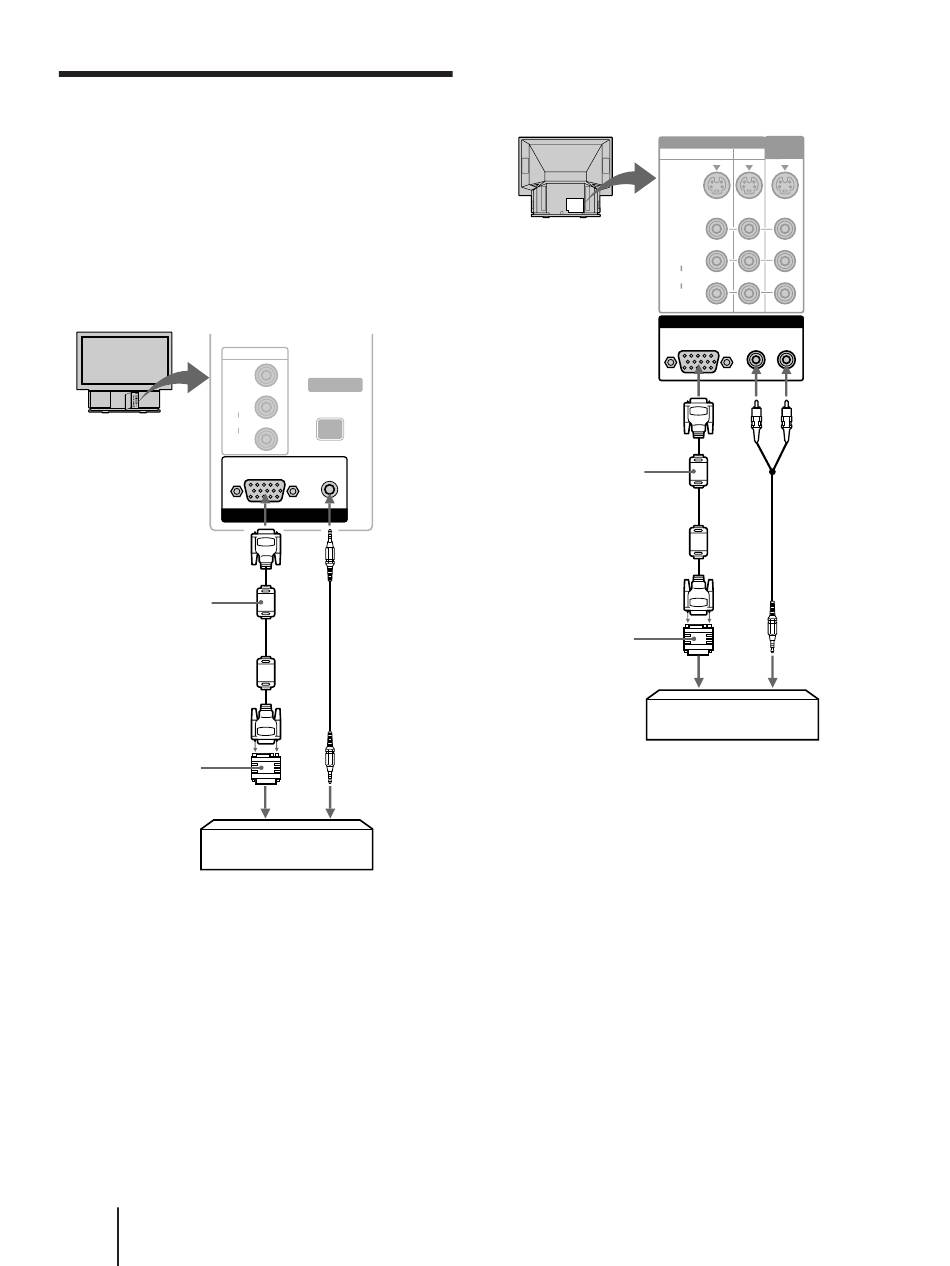

Using the front RGB 2 IN connector
Front of the monitor
VIDEO 2 IN
VIDEO
L
AUDIO
R
RGB signal cable
(supplied)
Macintosh adaptor
(supplied)
to video output
Macintosh or compatible
computer
8 -EN
Getting Started
INPUT SELECT
RESET
RGB AUDIO
RGB 2 IN
Audio connecting
cord
(stereo minijack ˜
stereo minijack)
(not supplied)
to audio output
Using the rear RGB 1 IN connector
Rear of the monitor
S VIDEO
VIDEO
AUDIO
RGB signal cable
(supplied)
Macintosh adaptor
(supplied)
to video output
Macintosh or compatible
computer
About the supplied Macintosh adaptor
The supplied Macintosh adaptor is compatible with
Macintosh LC, Performa, Quadra and Power
Macintosh series computers. Macintosh II series and
some version of PowerBook models may need an
another adaptor with micro switches (not supplied).
VIDEO IN VIDEO
OUT
1 3
L
R
RGB 1 IN
AUDIO
RGB
L
R
Audio connecting
cord
(phono plug × 2 ˜
stereo minijack)
(not supplied)
to audio output
