Zodiac AquaLink Z4 Manuel D'installation page 9

24 VAC power plug from
transformer connects into a
3-pin terminal on the back of the
Power Controller Board
FILTER PUMP
(240 VAC)

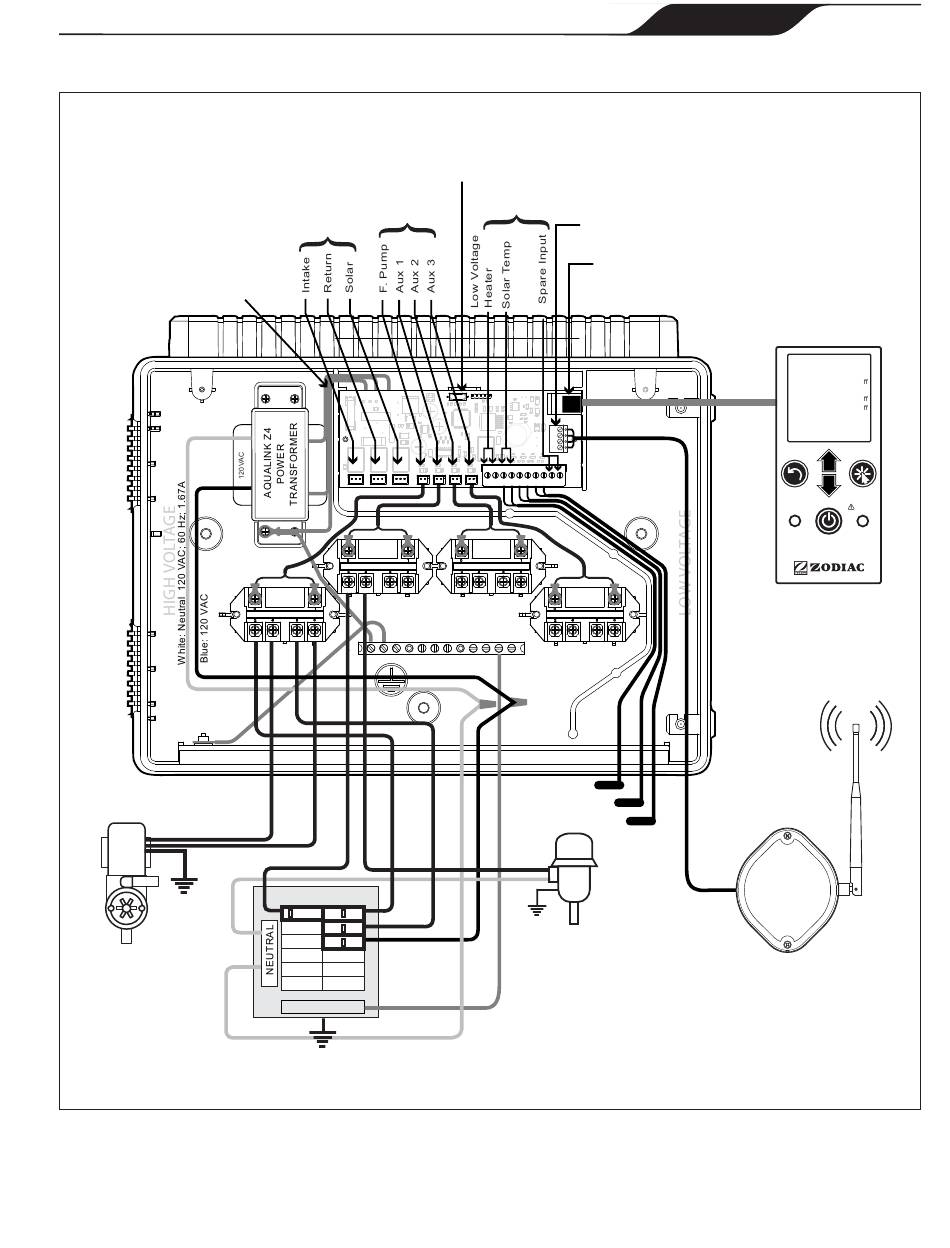

Figure 2. AquaLink Z4 Controller Electrical Wiring Diagram
AquaLink Z4 Controller
®
Power Controller Board
Relay Sockets
JVA Sockets
(24 VDC output)
(24 VAC output)
AQUALINK Z4 PCB
INTAKE RETURN SOLAR
AUX 1
FILTER
PUMP
GROUND BAR
BREAKER
GROUND
|
Installation Manual
Green Terminal Bar
RS485 Network
(Red Terminal Bar)
User Interface Connector
(Black Modular
Connector)
G
Y
B
R
1 2 3 4 5 6 7 8 9 10
AUX 2
AUX 3
Solar Temp Sensor
Water Temp Sensor
Air Temp Sensor
BLOWER
(120 or 240 VAC)
ENGLISH
Page 9
ZODIAC
12:40PM
Pool Mode O
Pool Heater 80°F
Spa Mode O
Spa Heater O
Settings >
Devices >
Service Mode >
Back
Select
Power
Alert
®
AQUALINK Z4
USER INTERFACE
iAQUALINK™ J-BOX
