The Display Screen

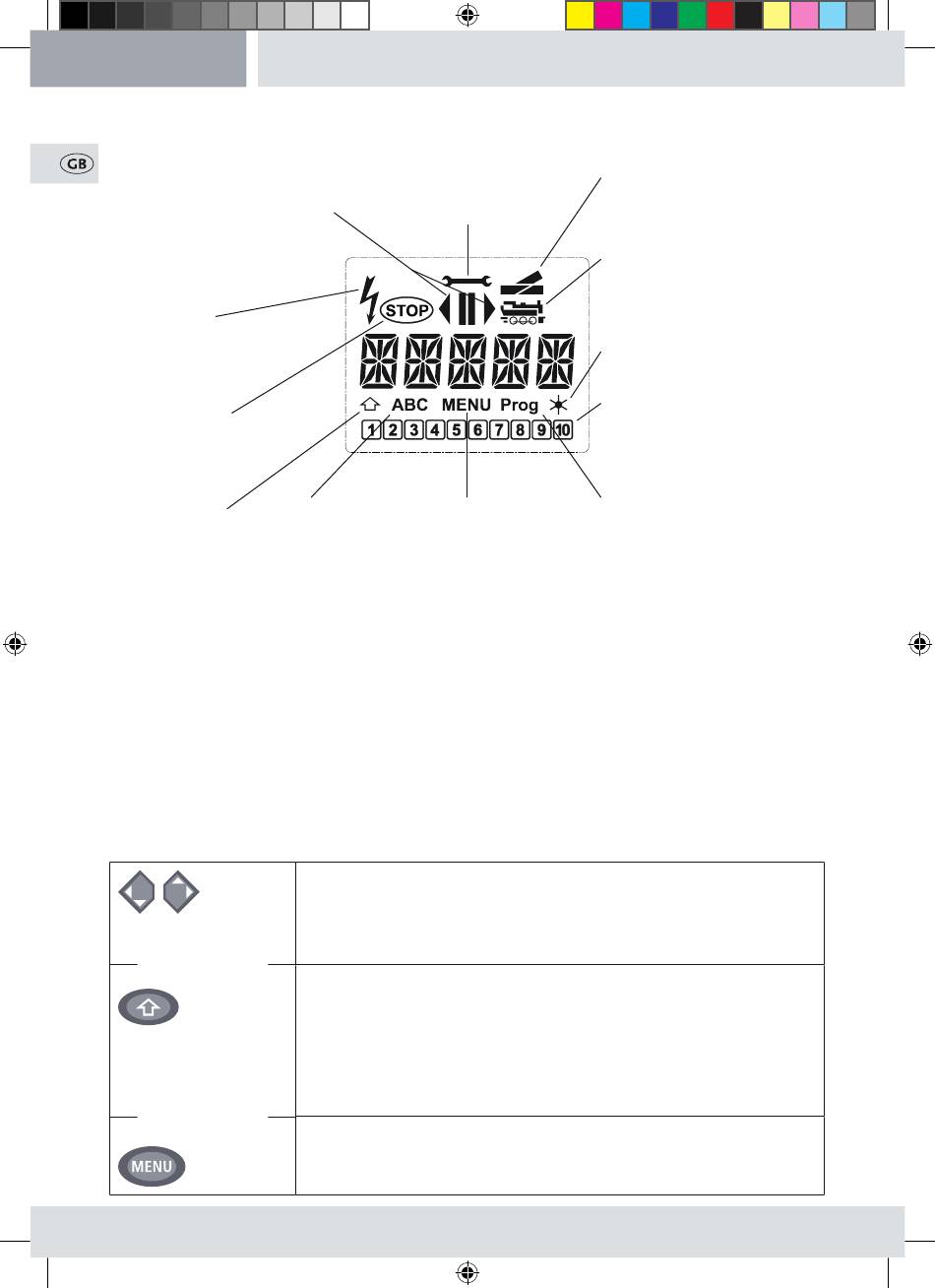

All the functions of the multiMAUS can be checked on the large LCD with backlight. The symbols are as follows:
Drive symbols
Arrows shows the direction of travel
▪
of the selected locomotive
"II" denotes that the locomotive is at
▪
a standstill (by controller or selected
emergency stop)
Short circuit
the symbol flashes in the event of a
▪
short circuit or an overload
Stop (stop key)
the symbol flashes in the event
▪
of an emergency stop or
short circuit
Shift symbol
is shown as confirmation
▪
of the shift key

The Keys

The clear concept of the multiMAUS reduces the number of the keys to an expedient quantity. Functions needed
for ordinary playing can mostly be called by the particular keys. These keys will be shown here. Please also note fig.
1 on page 60.
Note: The "arrow keys" – like all other keys – only have one single function despite having two arrows printed on
them.
When selecting key combinations using "Shift" – same as the "MENU" key – and another key, the "Shift" key has to
be pressed before any other key – like on a computer keyboard.
Arrow keys
in combination with
Shift key
in combination with
menu key
34
34
Wrench
the multiMAUS is in the
▪
"SETTINGS" menu level
ABC MENU
lights up when text is
the multiMAUS is in
▪ ▪
being entered
the menu level
Scroll through the locomotive library (library menu)
▪
Search for locomotive addresses (locomotive address mode)
▪
Set the turnout (straight or branch-off, turnout mode)
▪
Scroll through a menu level
▪
In library mode:
Freshly arrange order of locomotives by shifting
▪
In locomotive address mode:
Scroll 100 positions (search functions)
▪
In turnout mode:
Scroll through the turnout numbers (search function)
▪
In locomotive address mode:
Rearrange speed steps
▪
Turnout symbol
(locomotive / turnout key)
the multiMAUS is in the turnout
▪
mode
Locomotive symbol
(locomotive / turnout key)
drive mode
▪
with "MENU": "LOCO" menu
▪
Light symbol (light / OK key)
locomotive light switched on
▪
Function symbols ( 1 – 10)
display the currently activated
▪
special locomotive functions
showing sub-item ranks in the
▪
menu level
Prog
lights up as a confirmation when
▪
programming
the multiMAUS is in the
▪
"PRO GRAMMING" menu level
