KS2 R2 (cod.ABKS160)

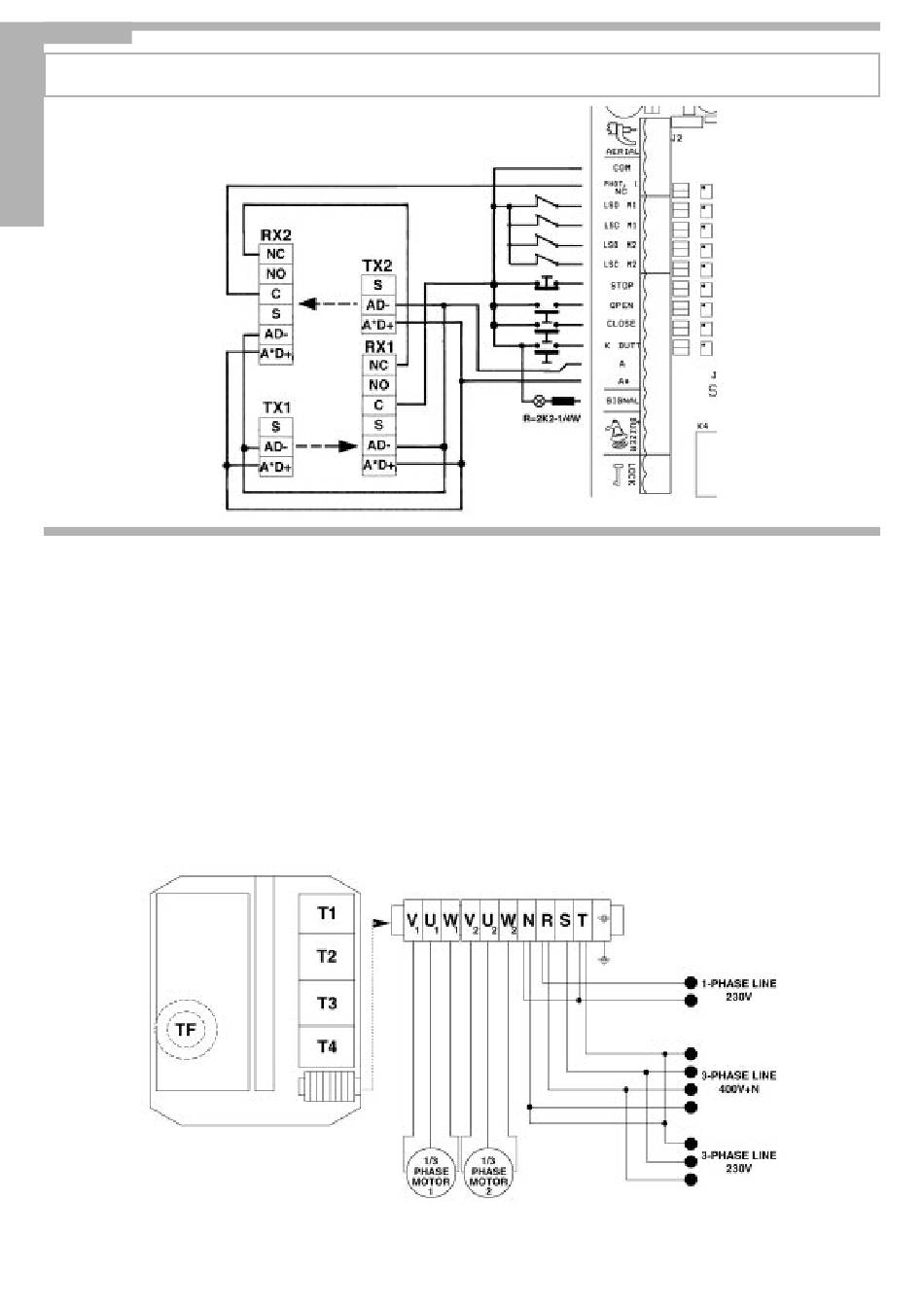

Execute the connections of the powez supply and of the motor as
described in the scheme. It is possible to feed the board at 230V 1-
phase, 3-phase or at 400V 3-phase, based on the type of motor used.
IMPORTANT - The TORQUE trimmer must be turned completely in
clockwise sense (in order to avoid an annoying buzz).
ELECTRIC CONNECTIONS
TECHNICAL CHARACTERISTICS
- Range of temperature
- Moisture
- Power supply voltage
- Frequency
- Max. power consumption of the card
- Transient power mains drops
- Max. capacity of the warning light - gate open - 3 W (corresponding to
one 3W lamp or to 5 LEDS with 2,2 kΩ resistance in series)
- Max. load at blinker output
- Available current for photocells and accessories 0,4 To ±15% 24Vac
- Available current for the radio connector 200mA 24Vac
- All inputs must be used as clean contacts without being earthed,
because power supplied is generated In the card and is arranged so
as to allow for double or reinforced Insulation with respect to live parts.
- All inputs are controlled by a programmed integrated circuit, that
carries out a self-control cycle every time the gate is operated.
T1-T2-T3-T4 = 4KW Teleruptors
0 ± 70°C
< 95% without condensation
230V~ ±10%
50/60 Hz
60 mA
100ms
40W with resistive load
