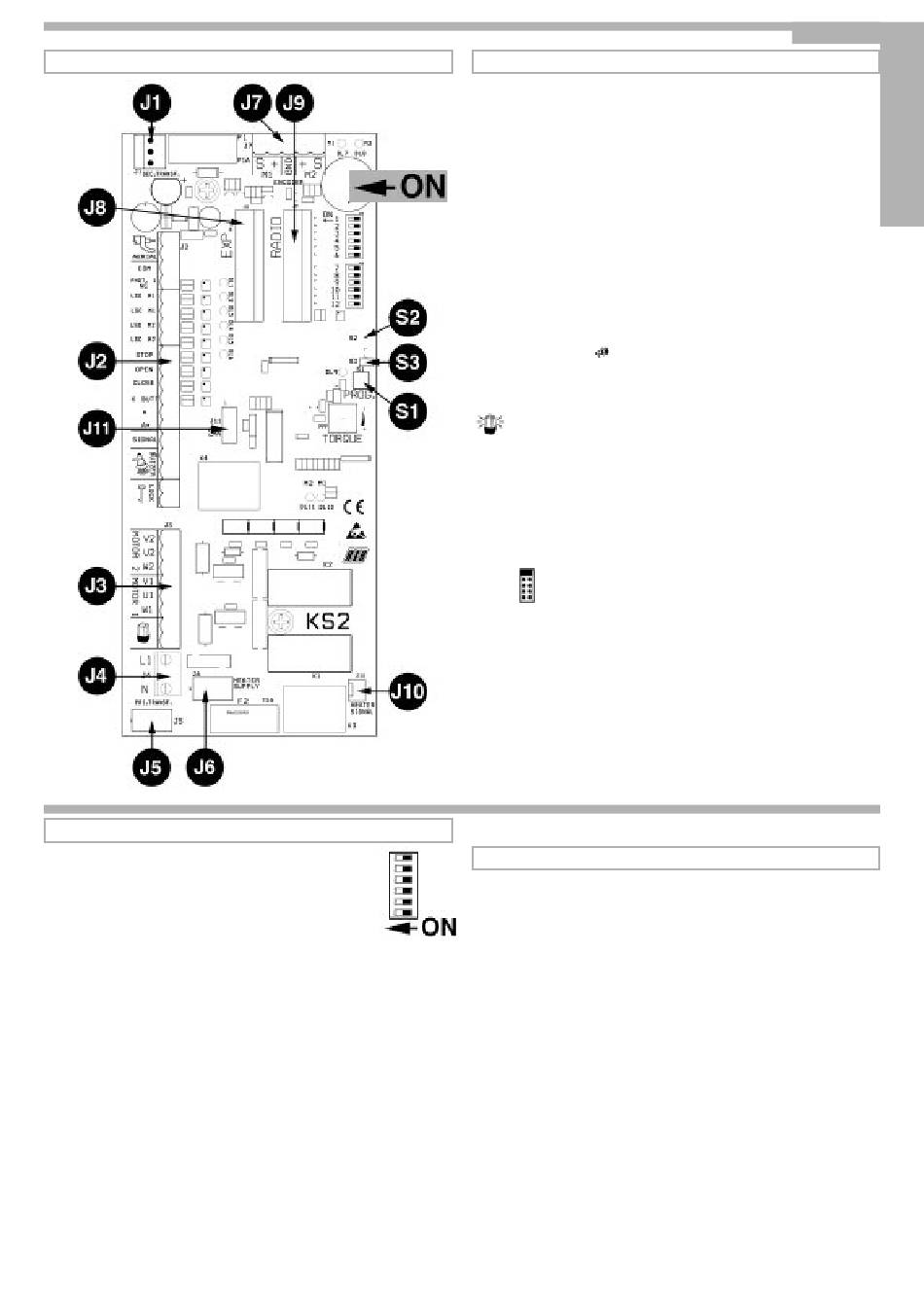

ELECTRONIC BOARD KS 2
B - OPERATING MICROSWITCH
DIP 1 CHECKING THE ROTATION DIRECTION OF THE MOTOR
(ON) (POINT C)
DIP 2 TIMING (ON) (POINT C)
DIP 3 Pausing time before automatic closing in normal and
pedestrian mode (ON)
DIP 4 Jogging radio receiver (OFF) - automatic (ON)
DIP 5 Single impulse command (K BUTT) jogging (OFF) - automatic (ON)
Photocells always active (OFF) - Photocells active only on closure (ON)
DIP 6
DIP 7 NOT AVAILABLE (OFF)
DIP 8 Pre-blinking (ON) - Normal blinking (OFF)
DIP 9 NOT AVAILABLE (OFF)
DIP 10 Electric Lock (ON-operated)
DIP 11 Release pulse in opening phase (ON- operated)
DIP 12 NOT AVAILABLE
S1 => "PROG." Programming button
S2 => Select operation with 1 or 2 motors (default closed track 2 motors)
S3 => Timed operation jumper (open) or electric limit switches (close)

LED SIGNALS

DL1 Photocell contact (NC)
DL2 M1 opening limit switch contact (NC)
DL3 M1 closing limit switch contact (NC)
DL4 M2 opening limit switch contact (NC)
DL5 M2 closing limit switch contact (NC)
DL6 Stop contact (NC)
DL7 NOT AVAILABLE
DL8 NOT AVAILABLE
DL9 Programming active
DL10 Closing gate M1
Code BC07048
A - CONNECTIONS
J1 => SEC.TRANSF. Secondary transformer connector
J2 => AERIAL Radio antenna
COM Common contact unit
PHOT.1 NC Photocell contact (NC)
LSO Stop opening limit switch M1 (NC)
LSC Stop closing limit switch M1 (NC)
LSO Stop opening limit switch contact M2 (NC)
LSC Stop closing limit switch contact M2 (NC)
STOP Stop button contact (NC)
OPEN Opening button contact (NO)
CLOSE Closing button contact (NO)
K BUTT. Single pulse contact (NO)
A*A Accessory power supply at 24Vac
SIGNAL Gate open light 12Vdc
BUZZER Wiring acoustic warning (12Vdc max 200 mA)
LOCK Electric lock connection (Max 15W 12V)
J3 => NOT AVAILABLE
BLINKER (max 40W )
J4 => L1 - N NOT AVAILABLE
J5 => PRI.TRANSF. Connector for transformer primary connection
J6 => HEATER SUPPLY NOT AVAILABLE (DO NOT TOUCH THE GUARD! )
J7 => ENCODER
NOT AVAILABLE
J8 => EXP. Connector for EXPANDER board
J9 => RADIO
Connector for 24Vac radio receiver
J10 => HEATER NOT AVAILABLE
J11 => DO NOT TOUCH THE JUMPER !
IF IT IS REMOVED THE OPERATOR DOESN'T MOVE !
DL11 Closing gate M2
C - MOTOR DIRECTION OF ROTATION CONTROL
This control facilitates installation of the system and allows further checks to be
performed.
1 - Release the motor and move the gate to half open position.;
2 - Put Dip 1 in the On mode => The LED DL9 starts blinking;
3 - Press the PROG button and hold it (the gate now is controlled in a dead man mode:
open, stop, close, stop, open) => THE RED LED DL10 and the DL11 come on and the
gate starts closing. The second leave closes four seconds after the first one. If this
does not happen, invert the wires of the motors V1,W1 and V2, W2);
4 - Press the PROG button and hold it => the gate starts opening. The two gate leaves will
open with a two second difference;
5 - Adjust the mechanical stoppers in opening;
6 - Press the hold the PROG button until both gate leaves reach the completely close
position and are now ready for the timing programming;
7 - Set the electrical limit switches if provided;
8 - At the end of the procedure, switch DIP1 to OFF. LED DL9 goes off to confirm exit
from the check procedure.
N.B. During this check, the photocells are not active.
