SIGFOX PULSE - Mode d'emploi / User guide version V1.5.1

1. SIGFOX PULSE

IMPORTANT NOTE: the SIGFOX PULSE can only be started or restarted using a magnet.
Description
• ADEUNIS RF's SIGFOX PULSE is a ready to use radio transmitter that can be used to transform any type of meter into a wireless meter
(smart meter).
• Connection to meters (water, gas, electric, heat) is simple via a system that is compatible with pulse interfaces. Configuration is intuitive via
mechanical switches.
• Two meters may be controlled by a single Adeunis RF SIGFOX PULSE transmitter thus permitting a significant reduction in implementation
and deployment costs.
• An embedded application is used to adjust the data transmission cycle and alerts concerning fraud.
• This document contains essential recommendations for the optimal implementation of ADEUNIS RF's SIGFOX products. Following these
recommendations will enable you to obtain communication over the distances advertised by the manufacturer according to the model
chosen.
• SIGFOX PULSE transmitters use a Lithium battery guaranteeing a product life in excess of 10 years under normal conditions of use.
IMPORTANT NOTE: The SIGFOX PULSE is delivered with an ID+PAC SIGFOX information, allowing the user to visualize its product on the
SIGFOW Network provided that the user a signed a network access contract with SIGFOX or SNOs.
Package composition
The product is supplied in a cardboard package containing the following elements:
• Upper case, electronic board, case plate.
• Compression gland with nut, 3 compression seals, 2 CBLZ 2.2 x 19mm screws, 2 Fischer SX4 plugs.

1.1. General description

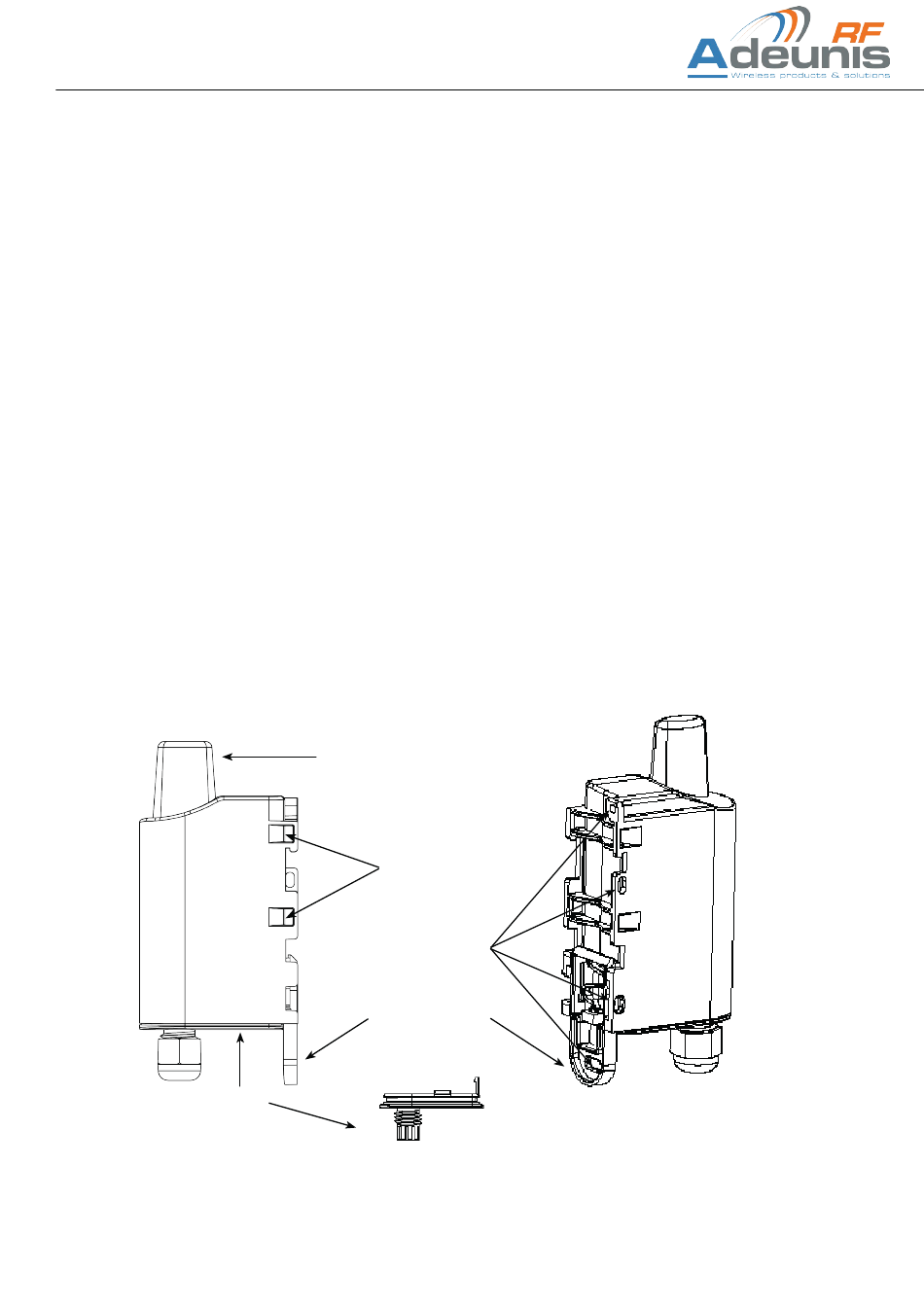

Case plate
Antenna
2 channels for
clamping collars
4 holes for fixing
screws
DIN-Rail unlocking
lever
Case plate details
Cable outlet
compression
gland
