9
FURTHER INFORMATION
9.1 - ADVANCED SETTINGS
9.1.1 - Adjusting the parameters (using the transmitter memorised in Mode 1)
The transmitter can be used to set a number of control unit operating parameters:
• Pause time: time during which the gate leaves remain open before re-closing automatically (if the "complete cycle" function is set); see Par. 9.1.1.1
• Pedestrian opening: partial opening mode of the gate leaves, to allow pedestrians to pass through; see Par. 9.1.1.1
• Motor force: maximum force applied by the motor to move the gate leaves; when this value is exceeded, the control unit interprets the occurrence
as an obstacle stopping the gate leaves and, consequently, inverts the direction of movement; see Par. 9.1.1.1
• Step-by-Step (SbS) function: sequence of gate leaf movements associated with each "Step-by-Step" (SbS) command; see Par. 9.1.1.1
• SbS input configuration: adjusts the duration of the motor's "short reversion" after the closing manoeuvre is executed, in order to reduce the final
residual force; see Par. 9.1.1.2
• Flash output configuration: adjusts the duration of the motor's "short reversion" after the opening manoeuvre is executed, in order to reduce the
final residual force; see Par. 9.1.1.2
• Discharging of Motor 1 and Motor 2 upon closing: adjusts the duration of the motor's "short reversion" after the closing manoeuvre is executed,
in order to reduce the final residual force; see Par. 9.1.1.2
• Discharging of Motor 1 and Motor 2 upon opening: adjusts the duration of the motor's "short reversion" after the opening manoeuvre is execut-
ed, in order to reduce the final residual force; see Par. 9.1.1.2
The adjustment can be effected by means of any transmitter memorised in Mode 1 (as those supplied, see Paragraph 9.3.1). If there is no transmitter
memorised in Mode 1, it is possible to memorise one solely for programming purposes then cancelling it (see Paragraph 9.4).
9.1.1.1 - Parameter adjustment procedure: Pause time - Pedestrian opening - Motor force - Step-by-Step function
All parameters can be adjusted as desired, with the exception of the "motor force" parameter, which requires special attention:
• Do not use high force values to compensate for abnormal friction points along the gate's path: exces-
sive force may adversely affect the operation of the safety system or damage the gate itself.
• If the "motor force" control is used to assist the impact force reduction system, measure the force again
after each adjustment in compliance with the EN 12445 and EN 12453 standards.
• Weather conditions may affect the movement of the gate, so the latter should be readjusted periodically.
Before proceeding, check the parameter to be modified in Table 2 and the action to be performed:

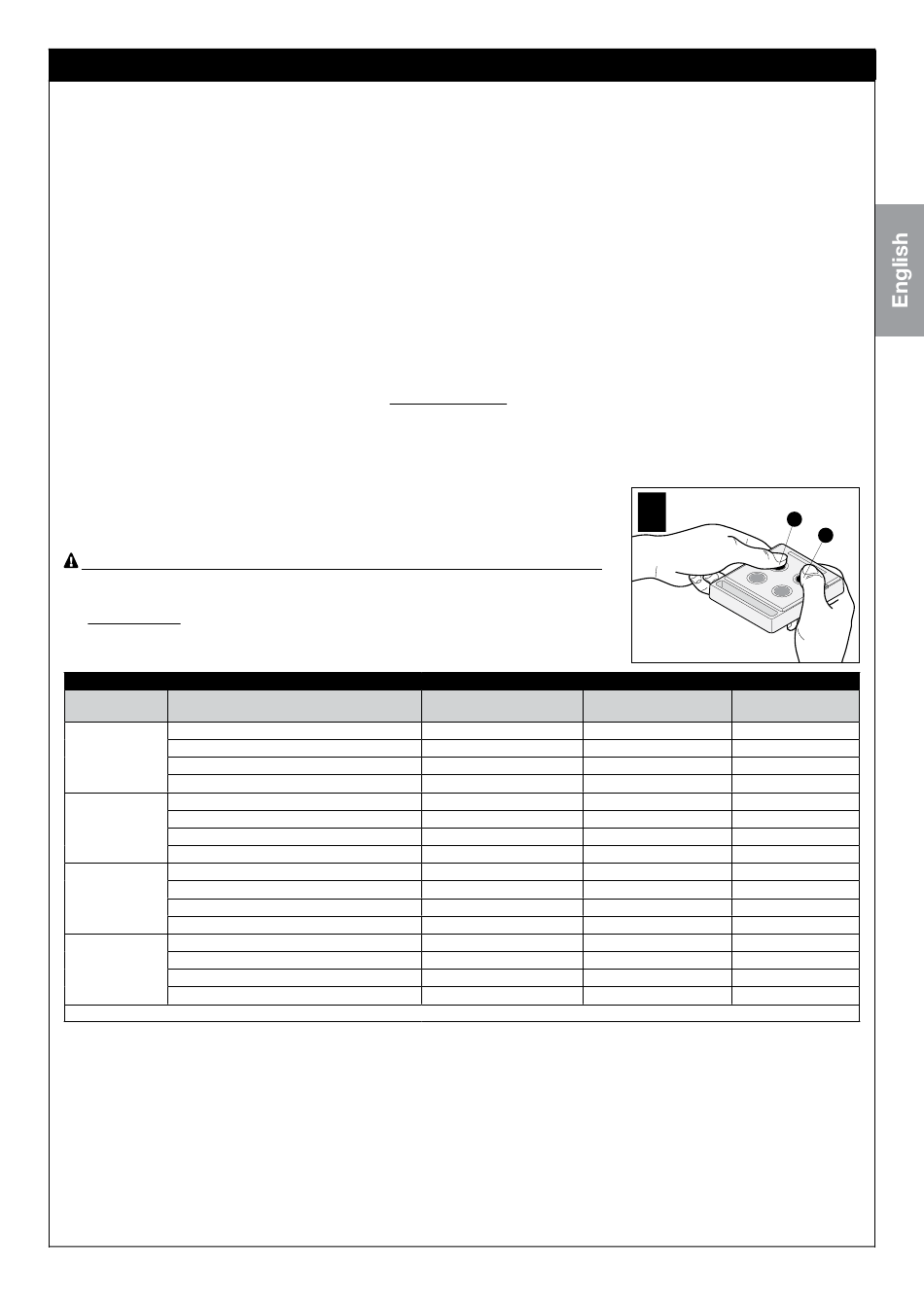

01. On the transmitter (Fig. 22) simultaneously press and hold buttons T1 and T2 for 5 seconds then
release them.
02. Within 3 seconds from releasing them, perform the action specified in Table 2 to modify the desired
parameter.
Parameters
Value
Pause time
10 sec
20 sec *
40 sec
80 sec
Pedestrian
Opening to midway of gate leaf 1
opening
Full opening of gate leaf 1 *
1/4 opening of the two leaves
Midway opening of the two leaves
Motor force
Low
Medium-low *
Medium-high
High
Step-by-Step
Open - Stop - Close - Stop
(SbS)
Open - Stop - Close - Open *
function
Open - Close - Open - Close
Opening only
* Factory value
TABLE 2
No. of flashes emitted by
Transmitter key to be
the flashing light
used
1
T1
2
T1
3
T1
T1
4
T2
1
2
T2
3
T2
4
T2
1
T3
T3
2
T3
3
4
T3
1
T4
2
T4
3
T4
T4
4
22
1
Actions to be per-
formed
Press T1 once
Press T1 twice
Press T1 three times
Press T1 four times
Press T2 once
Press T2 twice
Press T2 three times
Press T2 four times
Press T3 once
Press T3 twice
Press T3 three times
Press T3 four times
Press T4 once
Press T4 twice
Press T4 three times
Press T4 four times
English – 11
2
