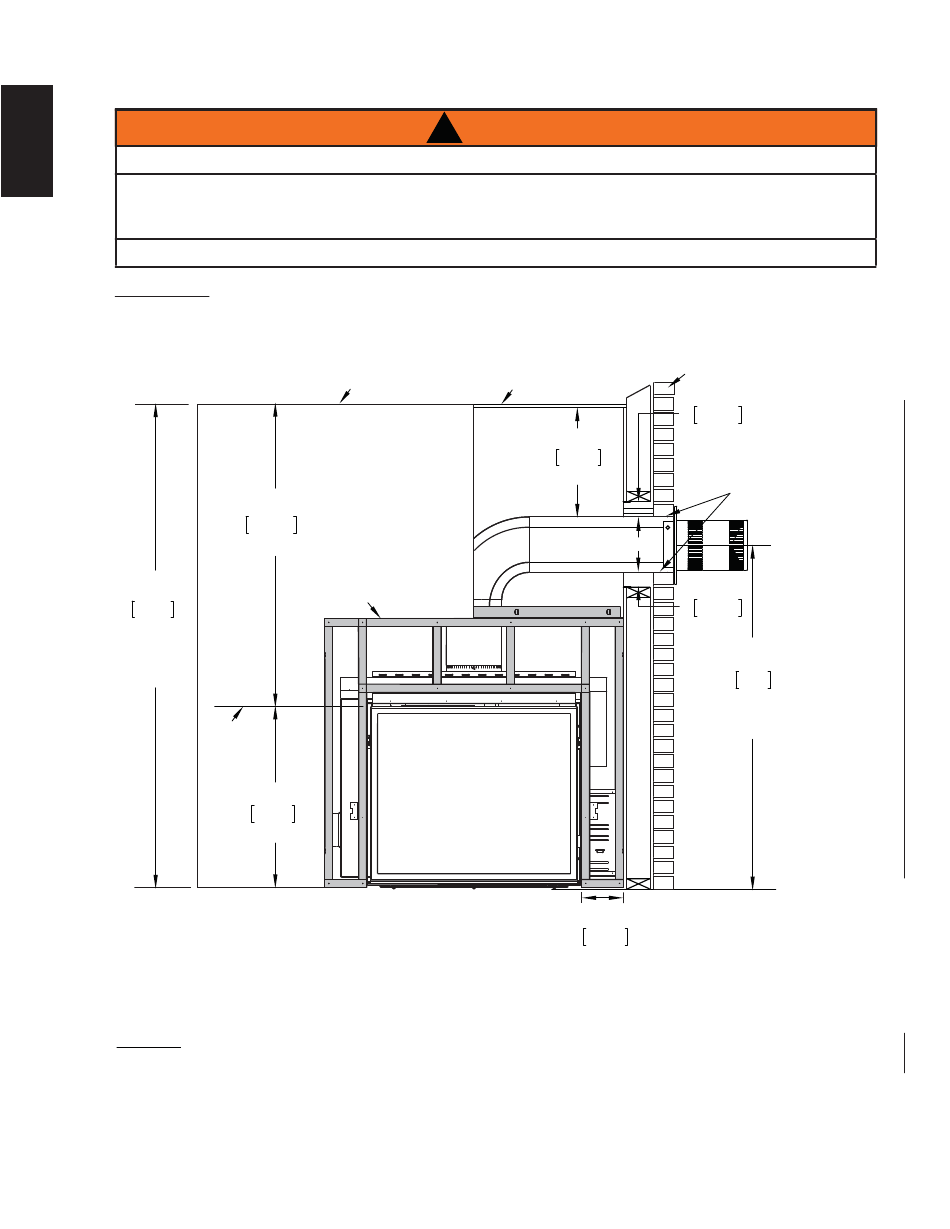

MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES
EN
THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS
SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT COVER
THE STEEL STUD FRAMING KITS WITH CEMENT BOARD PROVIDED MUST BE INSTALLED.
IMPORTANT: This appliance requires a minimum inside enclosure height of 84" (213cm), measured from
the bottom of the appliance. For temperature requirements, this area must be left unobstructed. It is
recommended that the enclosure be ventilated at the top and bottom to circulate the air.
84"
213cm *
MINIMUM
ENCLOSURE
HEIGHT
TOP OF
APPLIANCE
OPENING
* Refer to "VENTING" section.
** NOTE: Within the appliance enclosure a 3" (76.2mm) clearance between the vertical vent run and
the combustible materials on the front facing of the enclosure is required. Similarly, a 11 5/8" (29.5cm)
clearance to combustible materials from the top of the horizontal vent run is required. All other
clearances within the enclosure, including where the vent pipe exits the enclosure are subject to 2"
(50.8mm) for horizontal and 1" (25.4mm) for vertical.
W415-2201 / A / 12.14.16
THE APPLIANCE OPENING.
COMBUSTIBLE
MATERIAL
50 9/16"
128.4cm
MINIMUM
STEEL STUD
FRAMING
33 7/16"
84.9cm
MINIMUM
WARNING
!
RISK OF FIRE!
TOP OF ENCLOSURE
11 5/8"
29.5cm
MINIMUM **
7 5/8"
194mm
MINIMUM
BRICK
2" 50.8mm
0" (0mm) IF NON-
COMBUSTIBLE FINISHING
IS USED SUCH AS BRICK
AND STONE
2" 50.8mm
66 7/8"
1.7m
MINIMUM
PLUS RISE *
