Parts and their functions

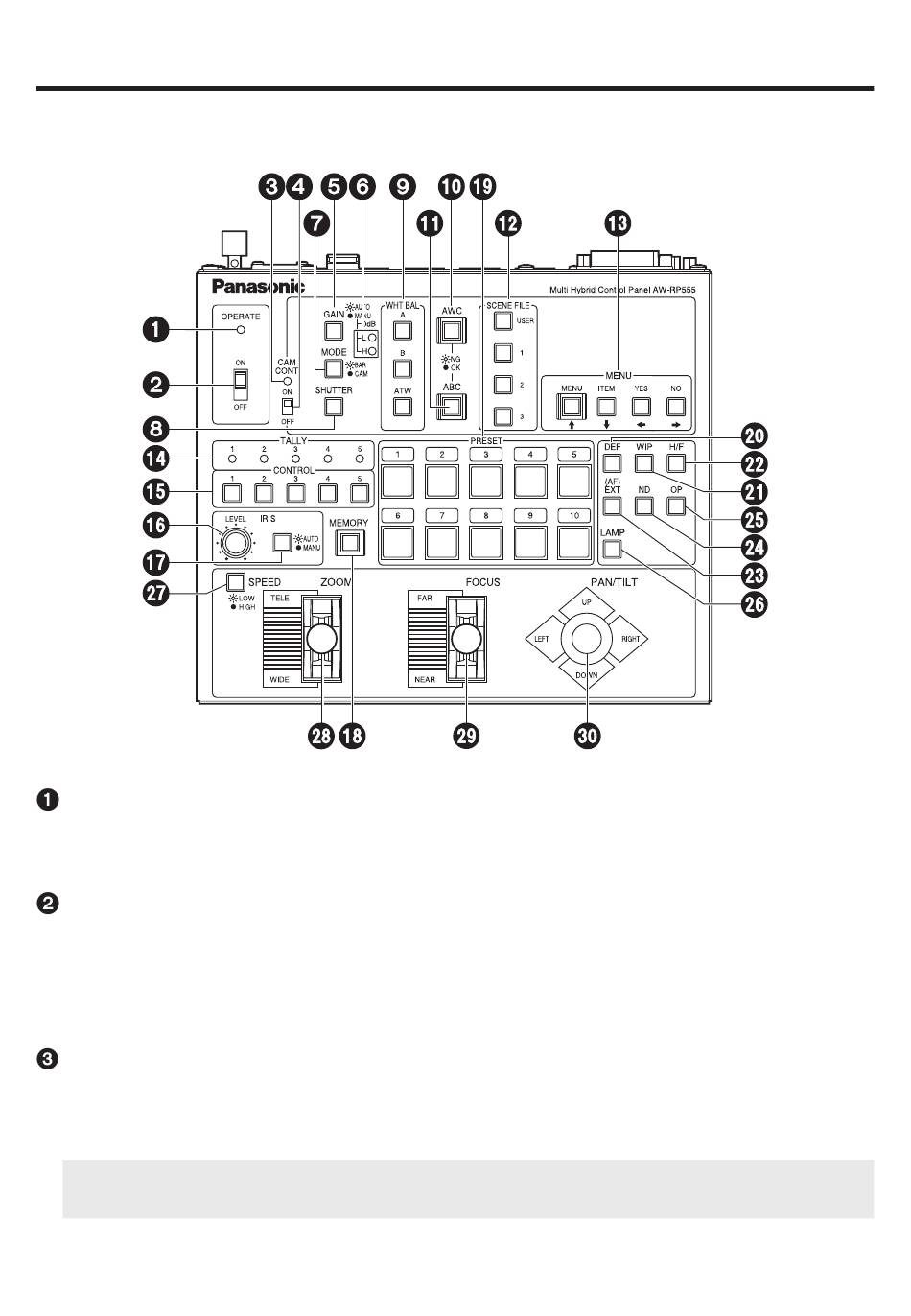

wControl panel
OPERATE lamp
This lamp will come on when power is supplied to this unit and the OPERATE switch is
on.
OPERATE switch
This controls the power of all pan/tilt head systems (pan/tilt head and convertible
camera) connected to this unit. Allow at least 5 seconds between ON/OFF operations.
Setting the OPERATE switch to OFF will not turn the power to this unit off. To turn the
power to this unit completely off, the power switch of AC adapter must be turned off.
CAM CONT lamp
This lights when the CAM CONT switch is at ON and communication with the camera
of the pan/tilt head system currently selected is taking place successfully. It goes off if
trouble occurs in the communication.
When using a pan/tilt head other than the AW-PH350, AW-PH360 or AW-PH650, it
remains off even when communication is taking place successfully.
5 (E)
