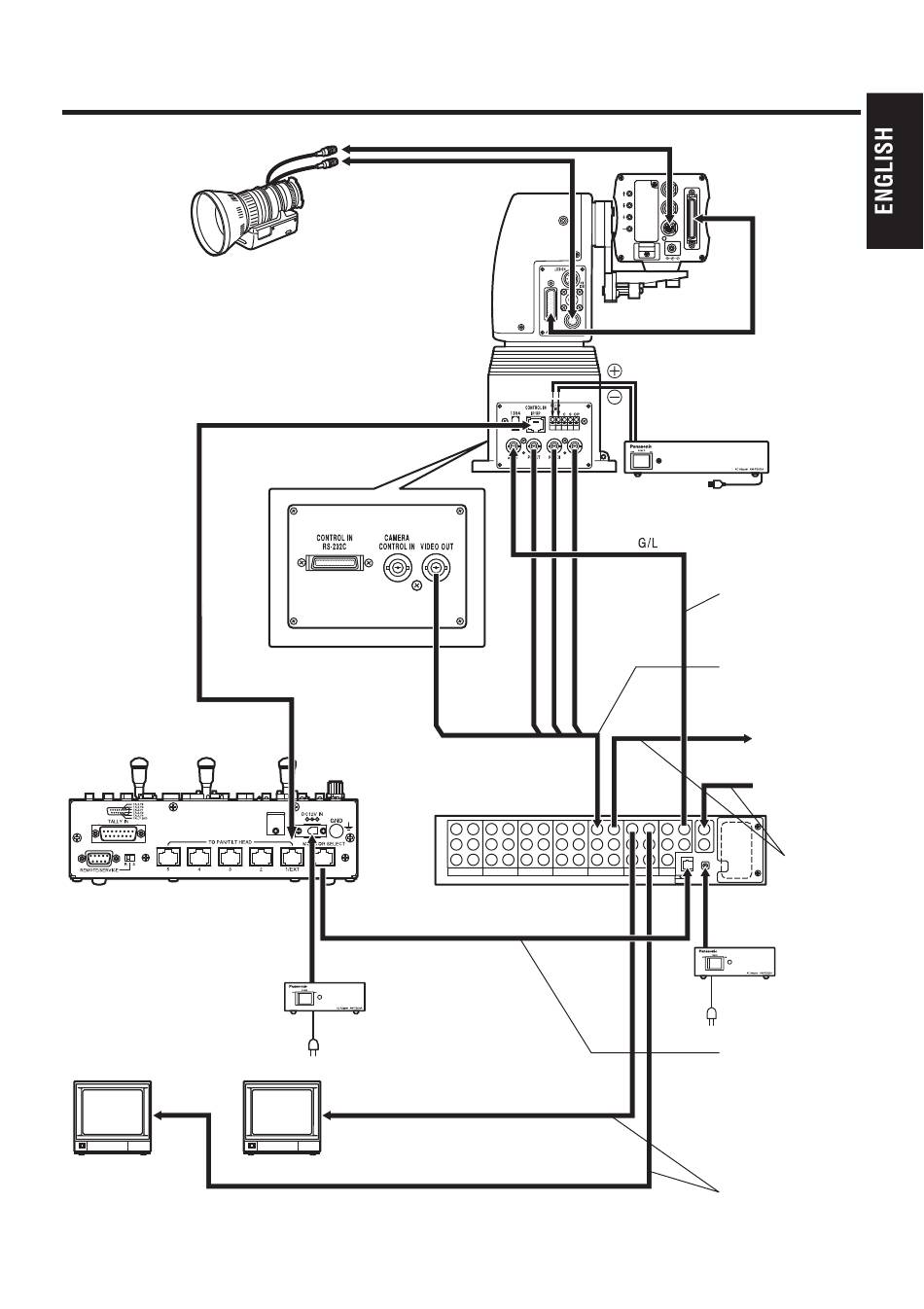

Connections
Zoom lens
10BASE-T (equivalent to UTP
category 5) straight cable
Multi Hybrid control panel
AW-RP555
Monitor
Base connector front
panel
Cable compensation unit
AW-RC400
Monitor switching signals
AC adapter: AW-PS505A
Monitor
Monitor signals 1
Monitor signals 2
VIDEO or Pb Pr Y
20 (E)
Convertible camera
Camera
cable
(supplied)
Nominal cross section
2
1.25 mm or more
AC adapter: AW-PS300A
Coaxial cable
(BBC No.PSF1/2M,
BELDEN 8281)
Coaxial cable
(BBC No.PSF1/2M,
BELDEN 8281)
Video signal
out
G/L signal in
Coaxial cable
(BBC No.PSF1/
2M, BELDEN
8281)
AC adapter:
AW-PS505A
10BASE-T
(equivalent to
UTP category 5)
straight cable
Coaxial cable
(BBC No.PSF1/2M,
BELDEN 8281)
