Autopan; Patrol; Motions Recall; Preset Parameters - Videotec ULISSE NETCAM Manuel D'instructions

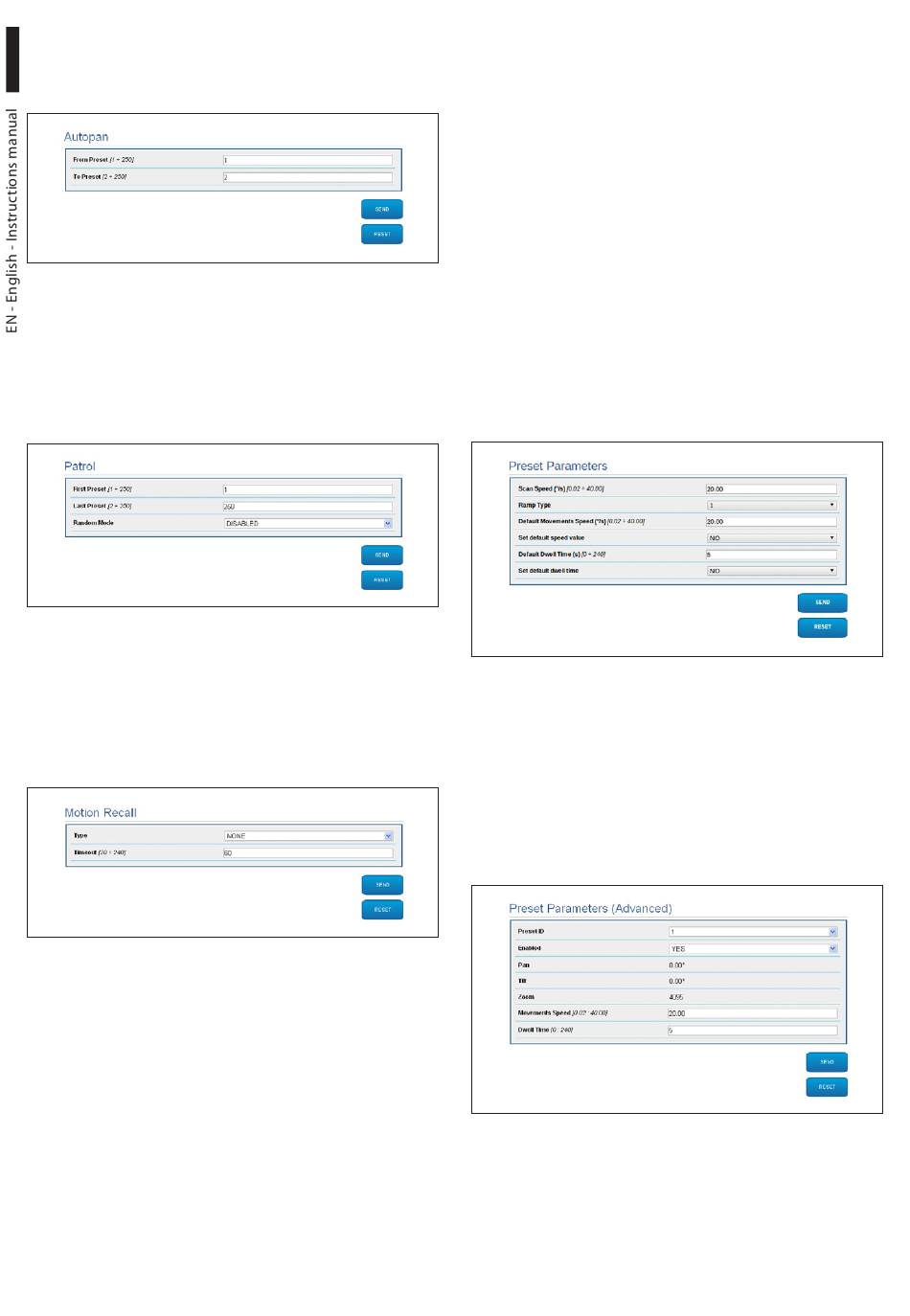

9.1.8.1 Autopan

In the Autopan subsection it is possible to specify the
preset autopan start and end..
Fig. 66

9.1.8.2 Patrol

In the Patrol subsection it is possible to specify the
preset patrol start and end. It is possible to specify
whether the scan of the presets needs to be carried
out randomly or otherwise.
Fig. 67

9.1.8.3 Motions Recall

In the Motion Recall subsection it is possible to
specify a time interval of inactivity after which Pan
& Tilt will carry out one of the following functions:
return to Home position, start autopan or start patrol.
Fig. 68
34

9.1.9 Preset Parameters

From menu entry Preset Parameters a number of
parameters relative to the presets can be configured:
• Scanning Speed: The speed, measured in degrees
to the second, at which a preset is reached by
explicit operator request.
• Ramp type: This allows you to select the Pan & Tilt
accelerations.
• Speed Of Movements (Default): The speed used
in autopan and patrol operations.
• Impose default speed: The default speed will also
be set as the scanning speed for all presets.
• Default Dwell Time: The amount of time, in
seconds, it stays in each preset by default.
• Impose default pause: The default pause will be
set for all presets.
Fig. 69

9.1.10 Preset Parameters (Advanced)

In the Preset Parameters (Advanced) section it is
possible to customise the speed and pause values
for each preset, in addition to enabling/disabling
the presets themselves. The settable options are
therefore similar to those shown in the previous
screen.
Fig. 70
