Installation
Location
The RBSS should be located near the scale assembly to simplify wiring. The wheel
should ride on the return belt, either just before or just after a return belt idler.

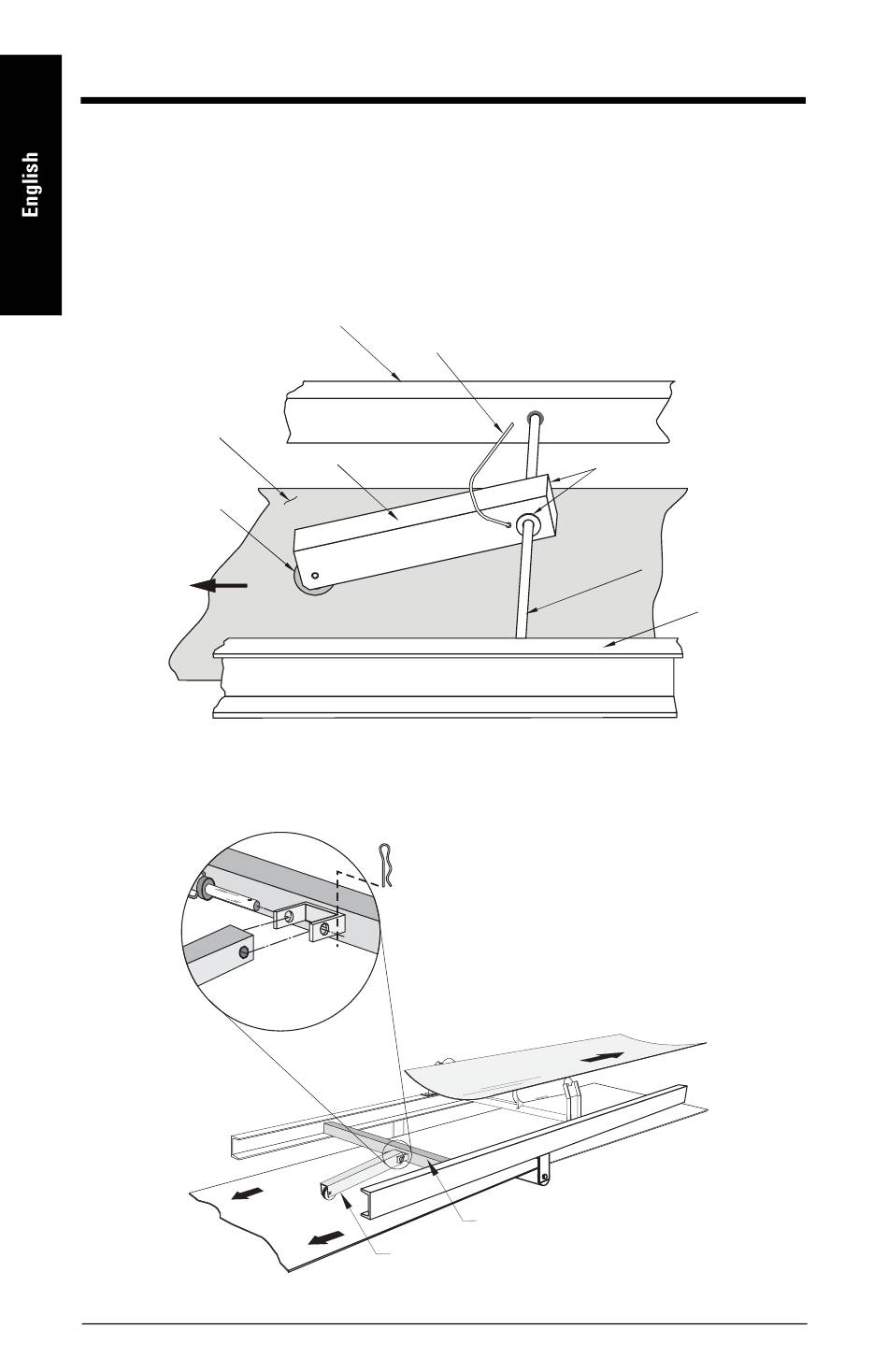

RBSS without mounting bracket
The standard RBSS mounting attaches to the conveyor stringers via a customer-supplied
1" cross bar, cut and fastened to the stringers.
belt
wheel
return belt
travel
RBSS with mounting bracket
The RBSS speed sensor attaches to a customer-supplied structural cross member via a
pivot and bracket assembly.
Page EN-4 RBSS Speed Sensor – INSTRUCTION MANUAL
stringer
cable
RBSS
pin clip
RBSS
24 mm (1") washers, 2 places
(customer-supplied)
cross member (customer-supplied)
24 mm (1") diameter
cross bar (customer-
supplied)
stringer
7ML19985GX63
