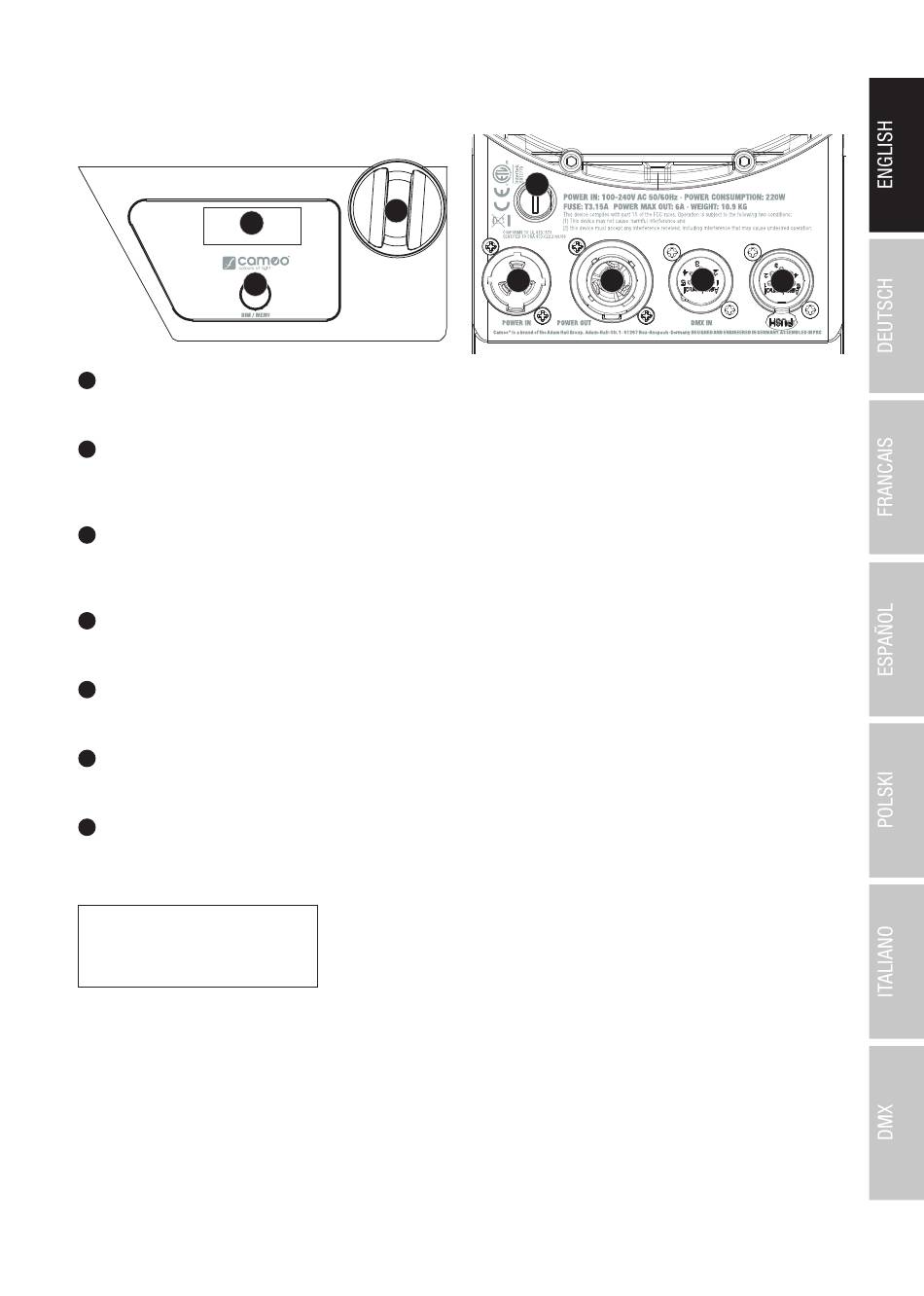

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

6
7
1
POWER IN
TRUE1 compatible mains input socket. Operating voltage 100–240 V AC/50–60 Hz.
2
POWER OUT
TRUE1 compatible mains output socket for power supply to additional CAMEO spotlights. Ensure that the total current consumption of all
connected devices does not exceed the value specified on the device in amperes (A).
3
FUSE
Fuse holder for 5 x 20mm micro fuses. IMPORTANT: Replace the fuse only with a fuse of the same type and value (T3,15A/250V). In the
event of repeated fuse failure, please contact an authorised service centre.
4
DMX IN
Male 5-pin XLR socket for connection to a DMX control device (e.g. DMX console).
5
DMX OUT
Female 5-pin XLR socket for sending the DMX control signal.
6
OLED DISPLAY
Displays currently active mode and the menu items in the Edit menu.
7 DIM/MENU
Rotary-push encoder for the adjustment and control of the spotlight.
DIM – If one of the DMX modes is enabled and there is no DMX signal to the device, the encoder serves as master dimmer control and you
can set the brightness of the spotlight with values from 000 to 255 by turning the encoder (Quicklight).
Quicklight
000-255
MENU – Push the encoder to access the main menu and select menu items by turning the encoder.
