Remove and Replace Freezer Drawer Front

IMPORTANT: Two people may be required to remove and replace
the freezer drawer. Graphics are included later in this section.
Remove Drawer Front
1. Open the freezer drawer to full extension.
2. Loosen the four screws attaching the drawer glides to
the drawer front. See Drawer Front Removal graphic.
NOTE: Loosen screws three to four turns. Keep the screws
in the drawer front.
3. Lift drawer front upward and off the screws. See Drawer
Front Removal graphic.
4. The refrigerator leveling/roller assembly protrudes from each
side of the cabinet base. Remove the three screws attaching
each assembly, and remove the assemblies. See Refrigerator
Leveling/Roller Assembly graphic.
Replace Drawer Front
1. Align the leveling/roller assembly with the holes on each side of
the refrigerator cabinet. Using the screws removed, reinstall the
assemblies to the cabinet base. Tighten the screws completely.
2. Slide the drawer glides out of the freezer compartment. Insert
the screws in the top of the drawer front into the slots in the
drawer brackets. See Drawer Front Replacement graphic.
3. Pull the drawer brackets toward you to position the two
screws in the bottom of the drawer front into the brackets.
Completely tighten the four screws. See Drawer Front
Replacement graphic.

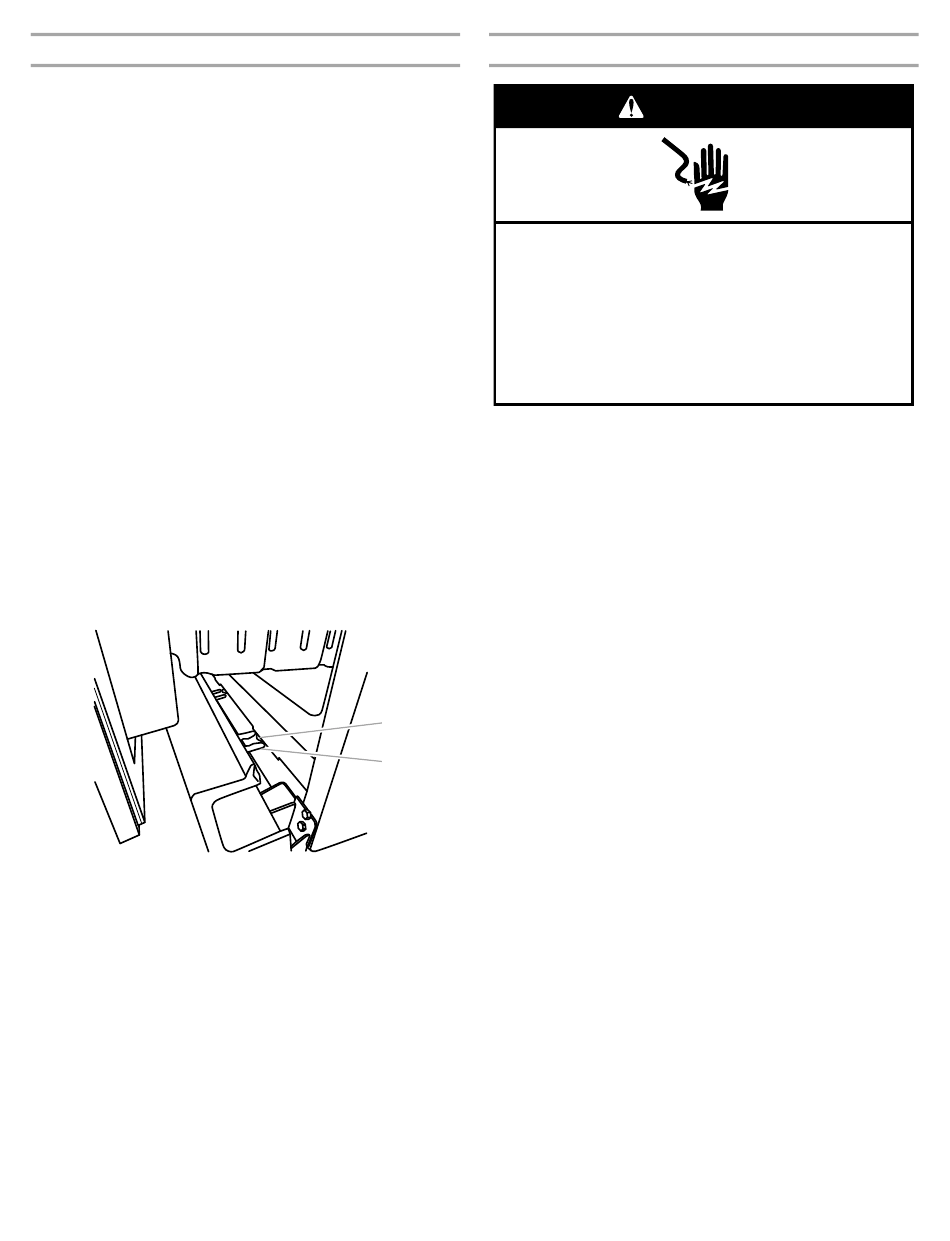

4. Replace the base grille.
■
Pull open the freezer drawer.
■ Align the three clips on the back of the base grille
with the three tabs at the base of the refrigerator.
■
Push the base grille in toward the refrigerator until
it is firmly in place.
A
B
A. Tab
B. Clip

Final Steps

WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
2. Return all removable parts to doors and drawer and
food to refrigerator and freezer.
