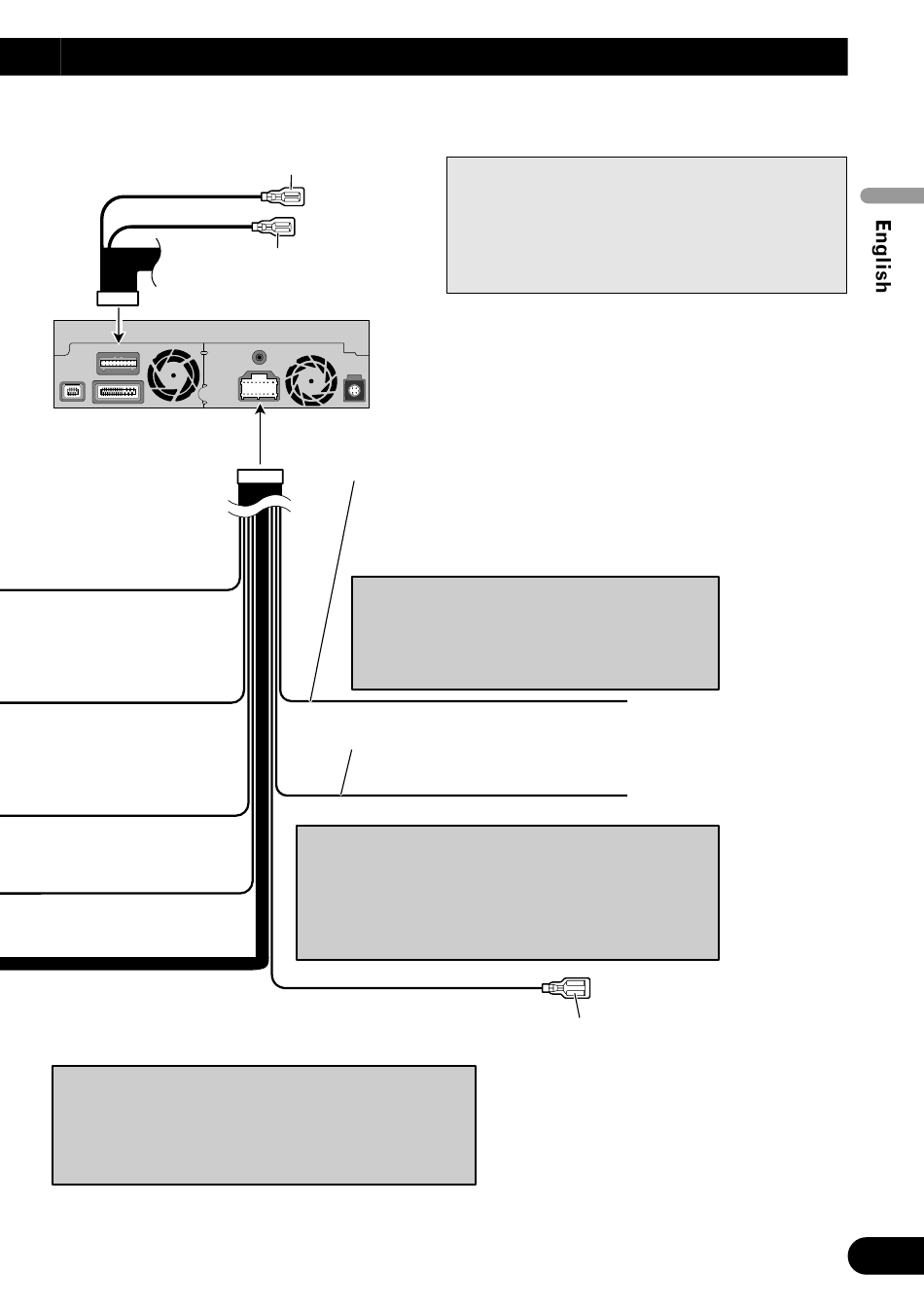

Display unit
Note:
When a subwoofer is connected to this product instead
of a rear speaker, change the rear output setting in
the Initial Setting. (Refer to the Operation Manual.)
The subwoofer output of this product is monaural.
See Page 12.
GUIDE ON
SYSTEM REMOTE
CONTROL
See Page 13.
Yellow/black
If you use equipment with a mute function (e.g. cellular
telephones), connect that equipment to the Audio Mute
lead. If not, keep the Audio Mute lead free of any
connections.
Note:
Audio source will be set to mute or attenuate,
while the voice guidance of the navigation
will not be muted or attenuated. For details,
see the Operation Manual.
Light green
See Page 11.
Note:
When the auto antenna function is used by connecting
the blue lead to the vehicle with the auto antenna
function, either turning off the ignition switch or
detaching the front panel will retract the auto antenna
of the vehicle.
Note:
Cords for this product and those for other products
may be different colors even if they have the same
function. When connecting this product to another
product, refer to the supplied manuals of both prod-
ucts and connect cords that have the same function.
Blue
To Auto-antenna relay control
terminal. If the vehicle has a
glass antenna, connect to the
antenna booster power supply
terminal (max. 300 mA 12 V DC).
