6 Installation

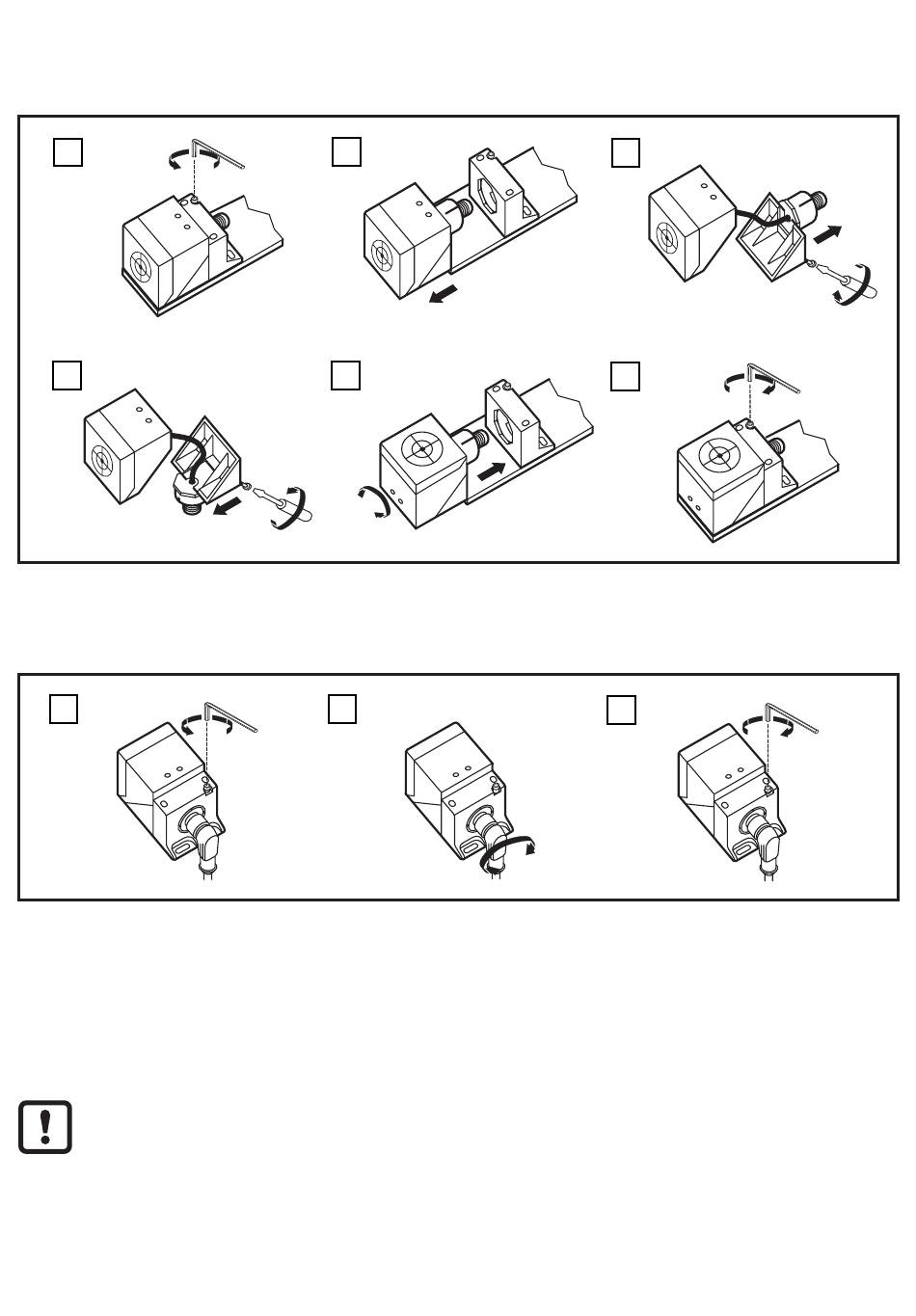

6.1 Alignment of the sensing face

1
4
*) max. 1 Nm
The socket is rotatable:
7
► Tighten the socket according to the manufacturer's indications. Observe the
socket tightening torque 0.6...1.5 Nm.

6.2 Installation conditions

The unit is non-flush mountable according to IEC 60947-5-2, type I2C40SP2.
Flush installation of the fail-safe sensor is not permitted since this can result
in an increase of the sensing range up to enabling of the outputs (OSSDs).
8
2
5
*)
8
3
6
9
