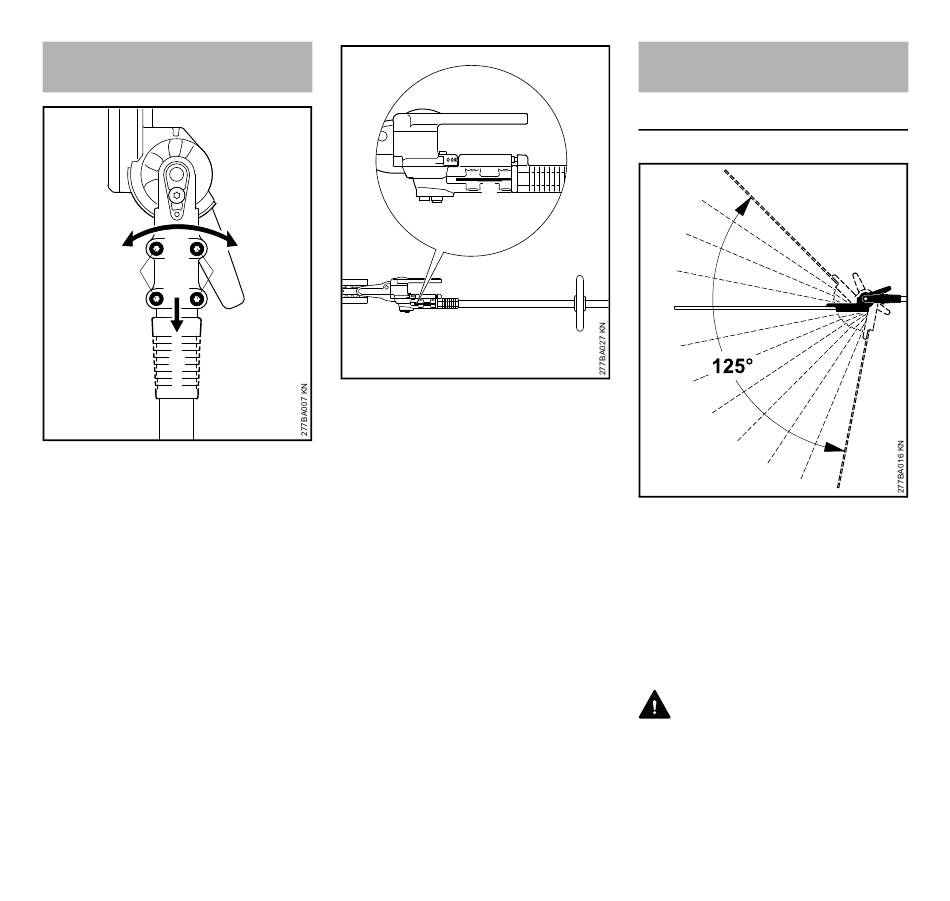

Mounting the Gearbox

1
1
3
2
4
Loosen the clamp screws (1).
N
Line up the sliding sleeve (2) – it
N
must be in line with the opening in
the angle drive.
Push the gearbox (3) onto the drive
N
tube (4), turn the gearbox back and
forth as necessary.
34
3
5
Once the end of the drive tube is
N
inserted beyond the slot in the
clamp (5), push the gearbox fully
home.
Tighten down the clamp screws
N
moderately.
Line up the gearbox (3).
N
Tighten down the clamp screws
N
firmly.

Adjusting the Cutter Bar

Adjustment mechanism 125°
In this version, the angle of the cutting
bar relative to the shaft is adjustable
from 0° (completely straight) to 45° (in
4 stages upward) and to 80° (in 7 stages
downward). Twelve individually
adjustable working positions are
possible.
Additionally, the cutting bar can be set to
a defined transport position.
WARNING
Make adjustments only when the cutting
blades are at a standstill – motor
switched off.
HLE 71, HLE 71K
