Overlay Series Custom Panels and Handle
Custom overlay panels allow you to blend the exterior of your
refrigerator into the overall kitchen decor, and to use custom
handles for additional design flexibility.

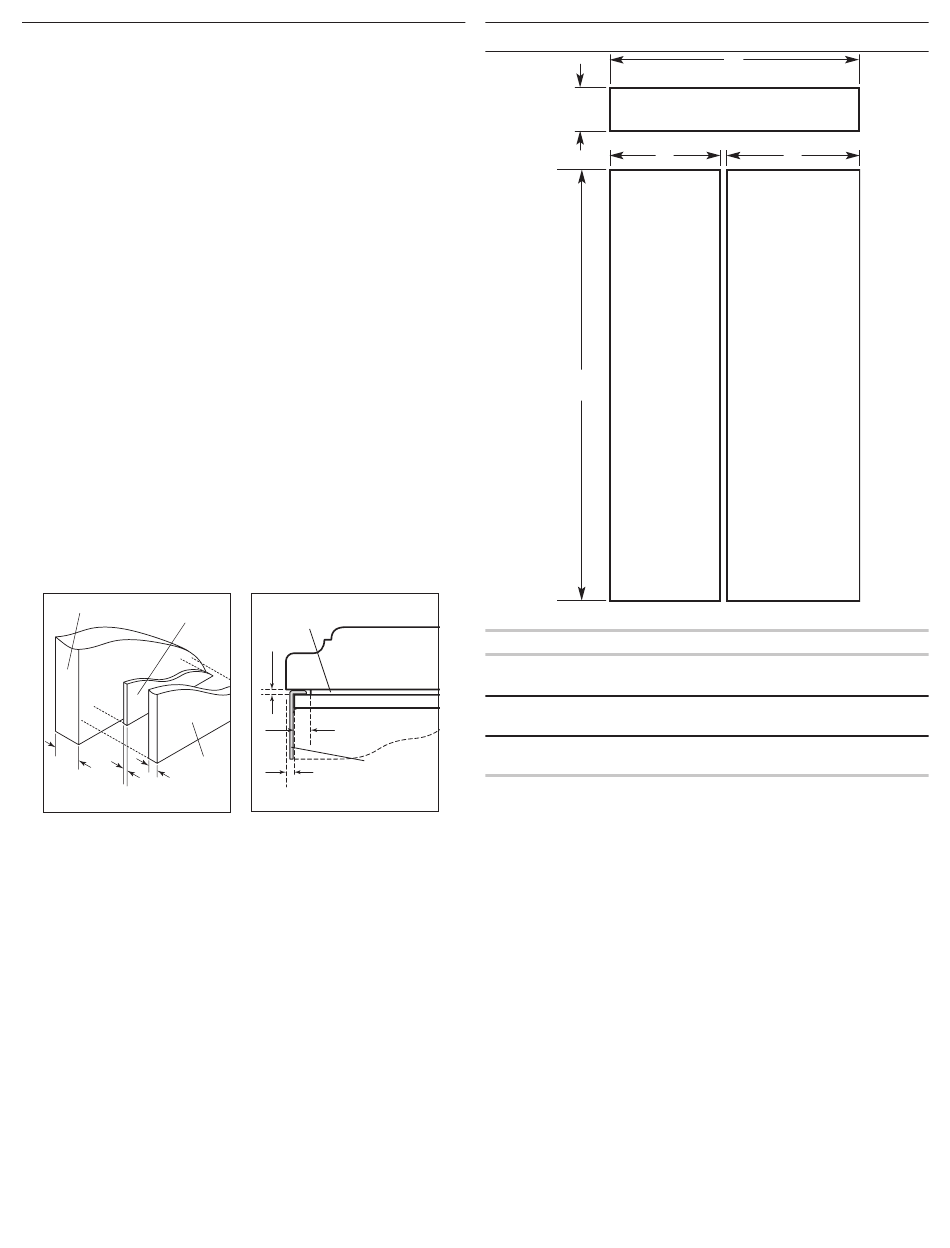

The custom panels must have backer panels attached in order to
mount them to the refrigerator. It is most common to work with
three panels, as shown in the following graphic: a decorative
overlay panel, a 1/8" (3.18 mm) spacer panel or spacer strips and
a 1/4" (6.35 mm) backer panel.
In some cases, your cabinet manufacturer may choose to work
with one panel routed for the different dimensions. Follow these
panel dimension and placement instructions to be sure that the
custom overlay panels will fit properly.
IMPORTANT:
The weight of the refrigerator door overlay panel cannot
■
exceed 50 lbs (23 kg).
The weight of the freezer door overlay panel cannot exceed
■
40 lbs (18.1 kg).
The weight of the top grille overlay panel cannot exceed
■
10 lbs (4.5 kg).
To minimize panel weight, you may use 2" (5.08 cm) spacer strips
around the perimeter in place of full-sheet solid spacer panels. The
spacer strips must be set in at least 1" (2.54 cm) from the top,
bottom and sides edges of the backer panel. If you use spacer
strips, it is also recommended that you use two 2" (5.08 cm) strips
horizontally centered for added support.
Overlay Panel
Spacer Panel
Backer Panel
5/8" to 3/4"
(15.88 to
1/4"
19.05 mm) (6.35 mm)
1/8"
(3.18 mm)
12
Kits
Spacer Panel
1/8"
(3.18 mm)
Overlay Panel
Backer Panel
1" minimum
(2.54 cm)
Door/Grille Trim
Offset Dimension
Decorative Overlay Panel
7 ⁄ "
1
4
(18.4 cm)
A
Freezer
72 1 ⁄ "
Door Panel
4
(183.5 cm)
(Non-Dispenser)
Model A
36
14³/ "
4
(37.47 cm)
42 17¹/ "
4
(43.82 cm)
48 19³/ "
4
(50.17 cm)
C
Grille Panel
B
Refrigerator
Door Panel
B C
19³/ " 34³/ "
4 4
(50.17 cm) (88.27 cm)
23¹/ " 40³/ "
4 4
(59.06 cm) (103.51 cm)
26³/ " 46³/ "
4 4
(67.95 cm) (118.75 cm)
