23 cyan intensity, negative signal. Difference of 5V
OR: DMX512 IN; negative signal
24 DMX512 OUT; negative signal
25 Ground
After connecting select „LASER ON - ILDA IN" on the Remote Control Pad.
8.3 External Interlock
The Remote Control Pad has a built-in emergency stop. If there is need for an external inter-
lock, please disconnect the Remote Control Pad and use the ‚Control' connection (RJ-48 con-
nector) to connect it with an external interlock. Pins 7 and 8 are the emergency stop.
page 8 / 33

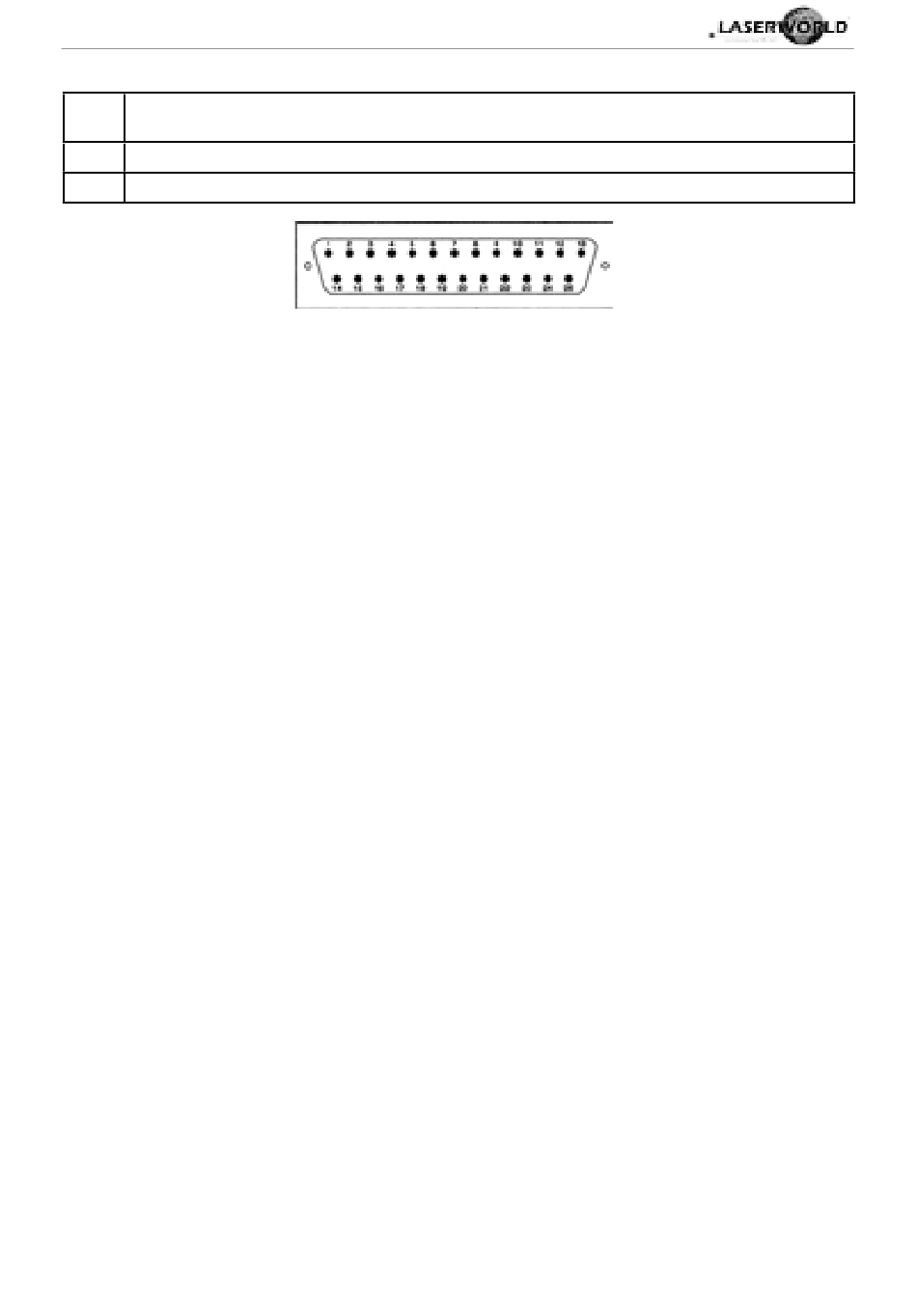

DB-25 ILDA connector
