OPERATION

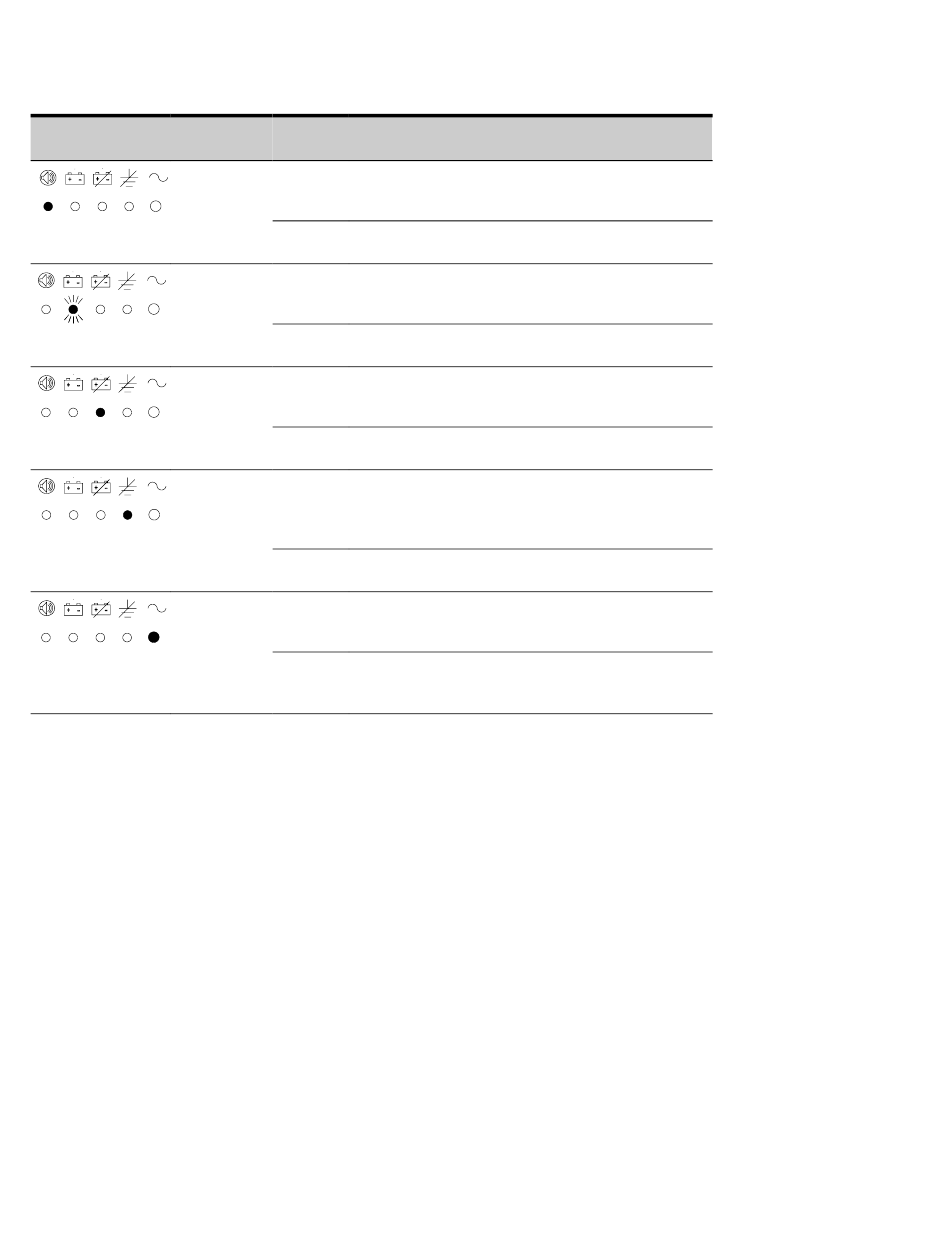

Table 8. Configuration Mode Indicators and Options
Configuration Mode
Option
Indicators
100/200-208V
Nominal Input
Voltage g
110/220V
Nominal Input
Voltage g
120/230V
Nominal Input
Voltage g
127/240V
Nominal Input
Voltage
Site Wiring
Fault Alarm
22
EATON Powerware
Indicator
Explanation
Status
On Selecting this option changes the nominal input voltage on
low voltage models to 100V and to 200-208V for high voltage
models.
Flashing 100/200-208V is disabled; one of the other input voltage
options is selected.
On Selecting this option changes the nominal input voltage on
low voltage models to 110V and to 220V for high voltage
models.
Flashing 110/220V is disabled; one of the other input voltage options is
selected.
On Selecting this option changes the nominal input voltage on
low voltage models to 120V and to 230V for high voltage
models.
Flashing 120/230V is disabled; one of the other input voltage options is
selected.
On* Selecting this option changes the nominal input voltage on
low voltage models to 127V and to 240V for high voltage
models.
*Default for P33.
Flashing 127/240V is disabled; one of the other input voltage options is
selected.
On Alarm sounds when the polarity of the outlet is reversed or
the ground connection is missing; have a qualified electrician
repair the outlet wiring.
Flashing* Alarm DOES NOT sound when the polarity of the outlet is
reversed or the ground connection is missing.
*Site Wiring Fault is not available for 100, 200, or 208V models.
®
