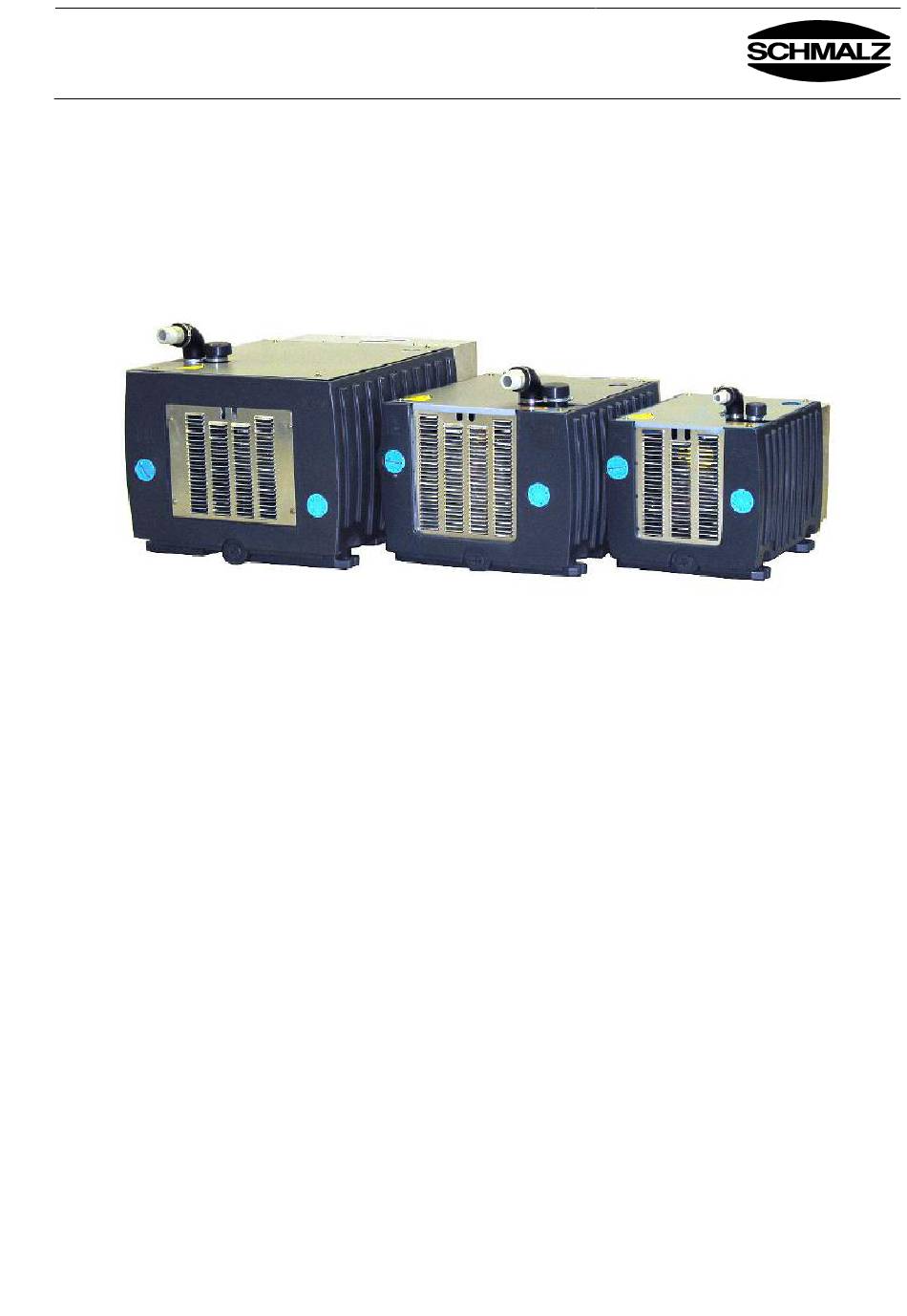

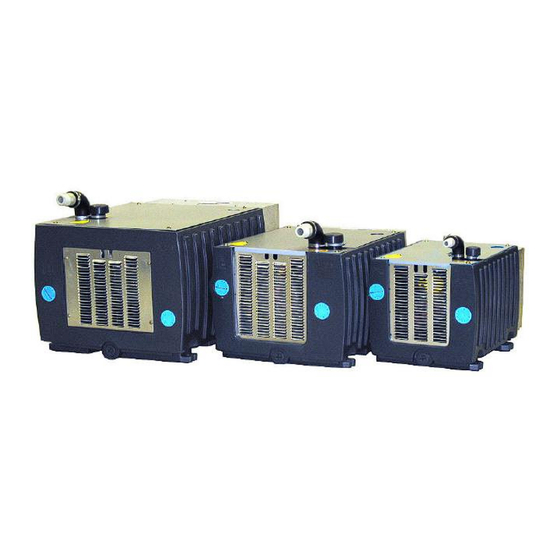

J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 3/22 Conception du système...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 4/22 Sécurité...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 6/22 Conditions préalables à...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 7/22 Vérifiez le sens de rotation.
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 11/22 Préparatifs pour une immobilisation prolongée...
Page 12
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 12/22 Encrassement/problème...
Page 13
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 13/22 Encrassement/problème...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 14/22 10.2 Réparations/élimination des pannes...
Page 15
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 16/22 10.3 Service client...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 17/22 Vue éclatée EVE-WR-25D...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 18/22 Vue éclatée de EVE-WR-45D...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 19/22 Vue éclatée de EVE-WR-65D...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 20/22 Montage du régulateur d’alimentation...
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 21/22 Certificat d’absence de risques lors du démontage...
Page 22
J. Schmalz GmbH Instructions de service Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Pompe à vide EVE-WR 25 - 65 Fax +49 +7443 / 2403 - 259 http://www.schmalz.de e-mail: schmalz@schmalz.de 30.30.01.00097 Status 01.2013 / Index 00 page 22/22 L’unité/la machine a été...
