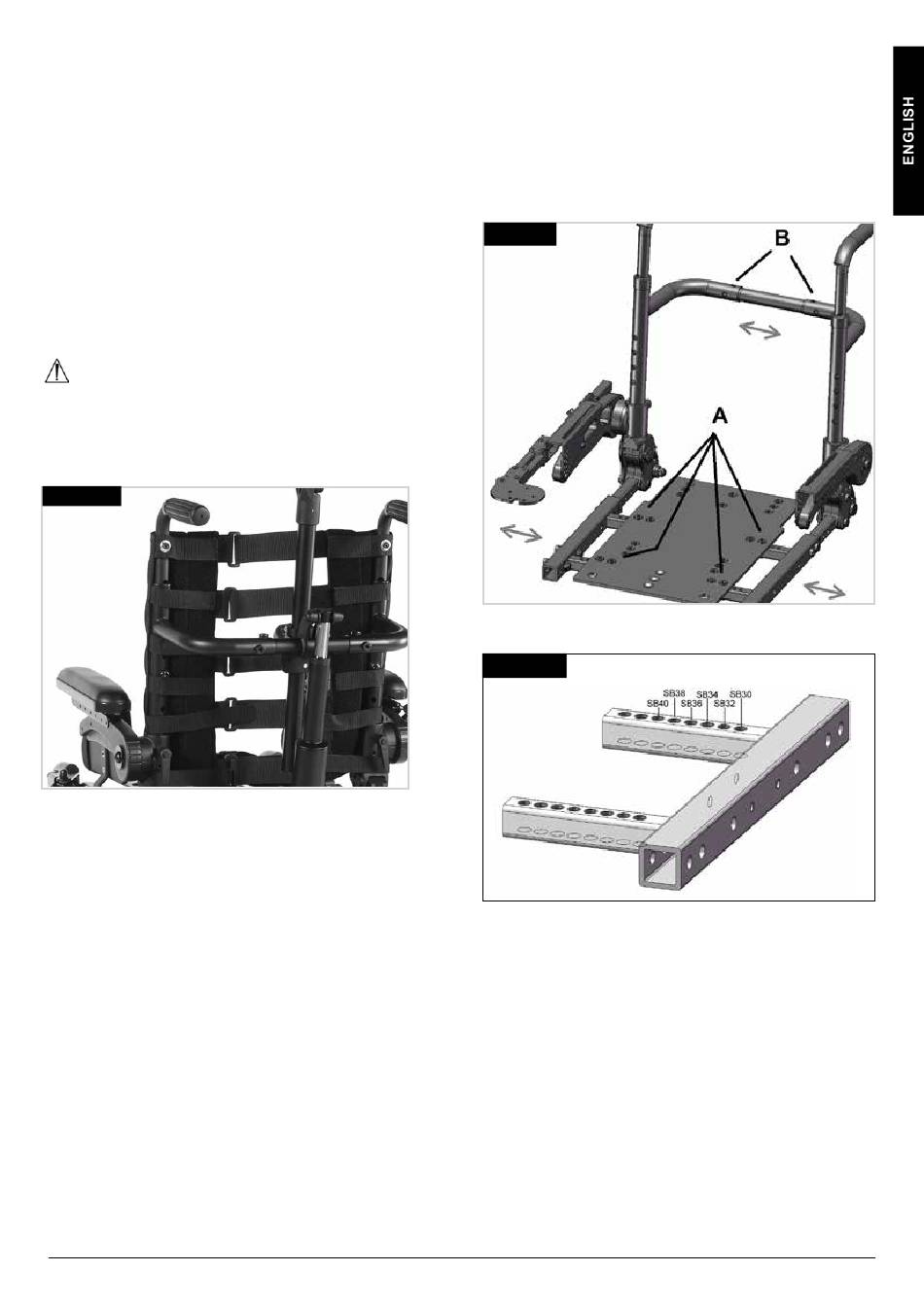

6.4 Backrest upholstery (Fig 6.4)

The wheelchair is supplied with optima backrest
upholstery, which can be adjusted in tension to the
individual's requirements.
Tension adjustable back:
To change the shape and/or tension of the 'Optima' backrest,
remove the padded cover from the rear of the backrest and
expose the tension straps. Loosen or tighten the straps to suit.
(The most comfortable and supportive position is achieved
with the wheelchair user seated in the wheelchair). Ensure the
straps are securely fastened and replace the padded cover
(Fig.6.4)
prior to use, .

6.5 JAY backrests

The rehab backrest assembly will allow the fitting of a
JAY backrest, which is available as an optional extra.
WARNING!
You must ensure all 4 screws are securely tightened and
the backrest is correctly and firmly in position prior to
using your wheelchair.
Fig. 6.4
Rev.C

6.6 Seat width adjustment

1. Remove the width adjustment bolts (A) and the towel
bar adjustment bolts (B), (Fig.6.5) .
2. Move the left and right side seat rails, armrests and
backrest assembly to the desired position. See seat
width position settings (Fig.6.6). Refit bolts and tighten to
10Nm, (A-B)
Fig. 6.5
Fig. 6.6
31
ZIPPIE SALSA M Mini
2
