Maintenance
Removing and Replacing the TEKPROBE™ Interface Collar
To remove the TEKPROBE interface collar, firmly grasp the
compensation box body with one hand, and the TEKPROBE
interface collar with the other hand. Firmly pull the interface collar
off.
To replace the collar, first note the pin configuration on the
compensation box, and their holes in the interface collar. The group
of three pins fit through the smaller of the two holes in the interface
collar. See Figure 4- - 8.
Align the tab to the slot and gently press the two pieces together. See
Figure 4- - 8.
Once installed, the TEKPROBE collar should rotate freely to lock
and unlock.
Slot

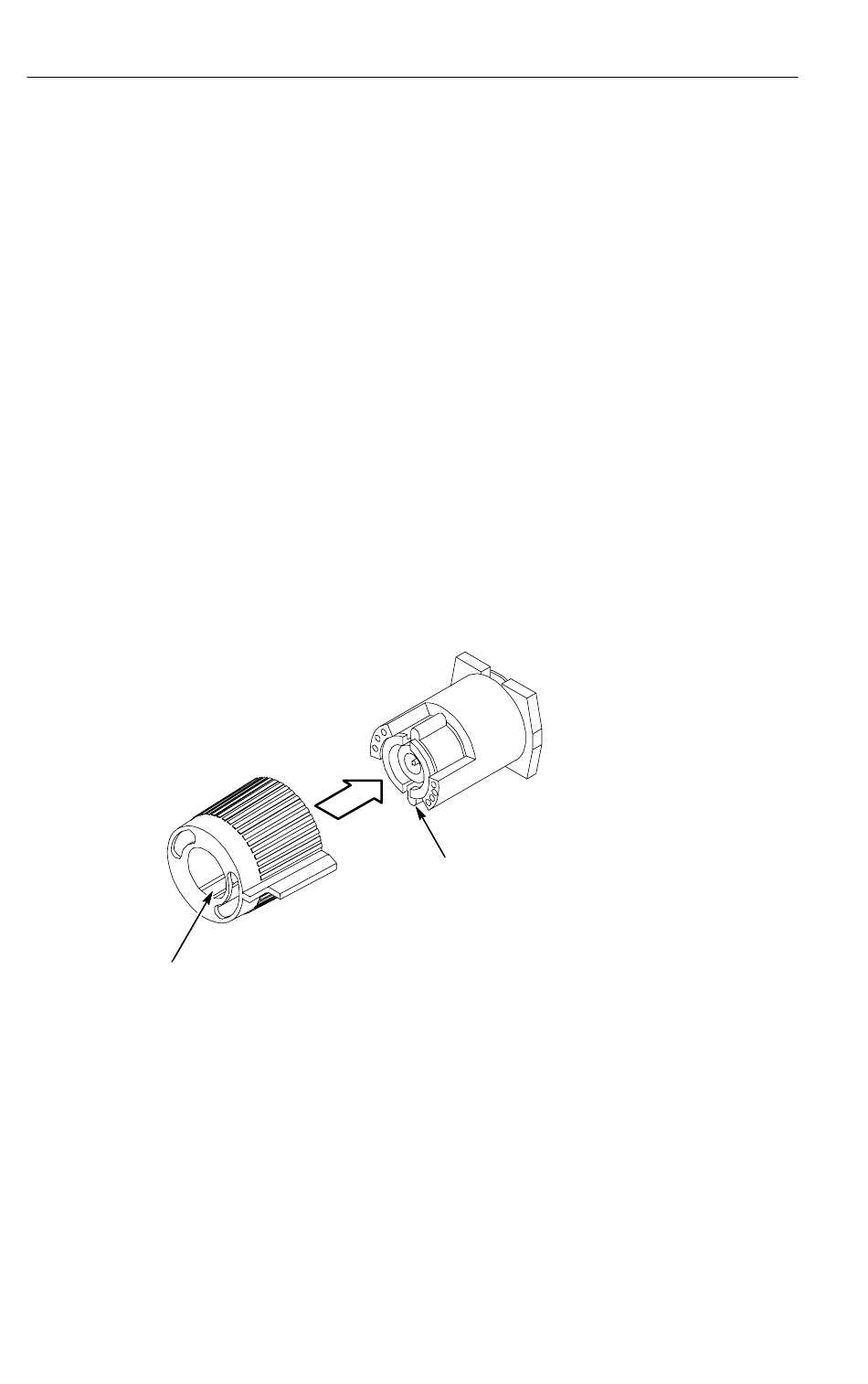

Figure 4- 8: Replacing the TEKPROBE collar

4- 16
Tab
P6245 Instruction Manual
