WA

Connecting to terminals:

1. The shield can be accessed through a notch in the cable sheath
(see Fig. 3.2).
2. Place the shield flat on the body of the casing.
Fitting to a connector:
Place the cable shield flat on the connector housing (see chap. 7.1).

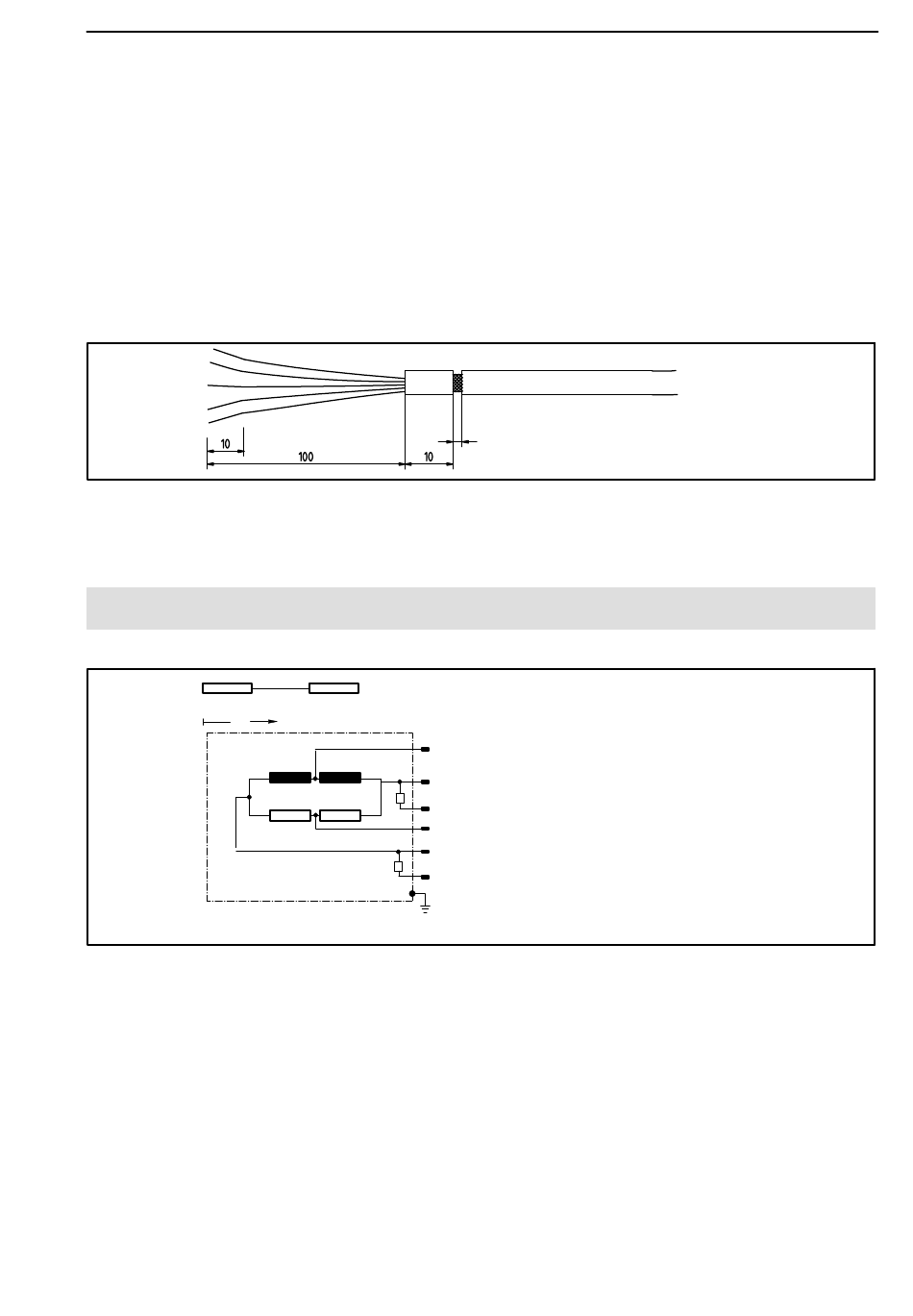

Fig. 3.2: Notched cable sheath

3.4 Principle of measurement, wiring assignment: WA2

É É É
0
Fig. 3.3: General electrical wiring‐diagram, full bridge with 80mV/V
A0546-8.5 en/de/fr
É É É
)
WH (white)
BU (blue)
GN (green)
RD (red)
BK (black)
GY (gray)
Cable shield
Cable sheath cut open at the circumference
Measurement signal ())
Excitation voltage (+)
Sensor circuit (+)
Measurement signal (*)
Excitation voltage (-)
Sensor circuit (-)
Transducer housing
11
