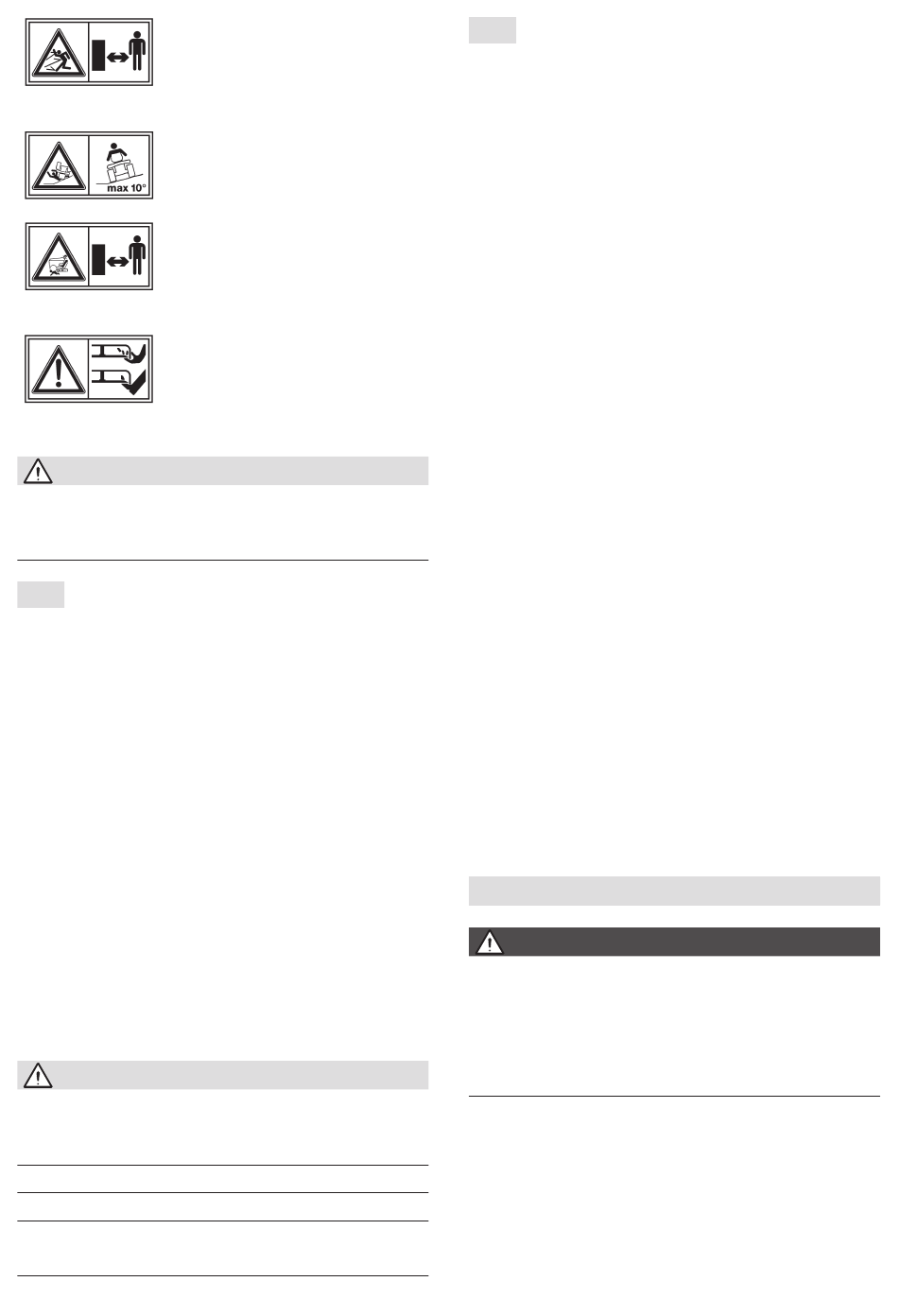

HAZARD OF EJECTED OB-
JECTS.
Keep all persons away and
outside the work area during
machine use.
RISK OF MACHINE ROLL-
OVER:
Do not use the machine on
gradients in excess of 10°.
CRUSHING HAZARD
Make sure that children remain
at a safe distance from the
machine when the engine is
running .
CUTTING HAZARD
Cutting means in operation.
Do not insert hands or feet into
the cutting means housing.
SAFETY INSTRUCTION
Any damaged or illegible decals must
be replaced. Order replacement decals
from an Authorised Service Centre.

4.3 IDENTIFICATION LABEL

The identification label includes
the following data (fig. 1):
1. Sound power level.
2. Conformity marking
3. Year of manufacture.
4. Type of machine.
5. Serial number.
6. Name and address of Manufacturer.
7. Article code.
8. Max. motor operation speed.
9. Weight in kg.
10. Electrical protection rating.
11. Rated voltage.
12. Battery capacity.
Write the identification data of the
machine in the specific space on the
label on the back of the cover page.
SAFETY INSTRUCTION
State the identification data on the product
identification label whenever you contact
an Authorised Service Centre.
NOTE
An example of the Declaration of Conformity
is provided on the last pages of this manual.

4.4 MAIN COMPONENTS

The machine comprises the following
main components having the
following functions (Fig.1 ) :
A. Cutting means assembly: this is
the assembly comprising the casing
housing the rotating cutting means
assembly and the cutting means.
B. Cutting means: these are what cut the
grass; the fins at the ends help convey the
cut grass towards the discharge chute.
C. Discharge chute: the is the connecting
element between the cutting means
assembly and the grass catcher.
D. Grass catcher: apart from collecting
the cut grass, it also constitutes a safety
element, preventing any objects picked
up by the cutting means from being
propelled away from the machine.
E. Rear discharge guard (available upon
request): mounted in place of the grass
catcher, it prevents any objects picked
up by the cutting means from being
propelled away from the machine.
F. Driving seat: this is where the
machine operator sits. It has a sensor
connected to safety devices for detecting
the presence of the operator.
G. Blade motors: drive the cutting means.
H. Drive motor: drives the wheels.
I. Batteries: provide power to the motor and
all electrical components of the machine.
J. Steering wheel: turns the front wheels.
K. Pushbutton panel : interface
comprising all the main commands
for using the machine.

5. ASSEMBLY

WARNING
The safety regulations to be followed are
described in chapter 2. Strictly comply
with these instructions to avoid serious
risks or hazards. Do not use the machine
until all the instructions provided in the
"ASSEMBLY" section have been carried out.
For storage and transport purposes,
some components of the machine are
not installed in the factory and have to
be assembled after unpacking.
Unpacking and completing the assembly
should be performed on a flat and stable
surface, with enough space for moving
EN - 9
