MMCS 563 System Unit L
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +24 V via microphone line
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 100 mA
AF-frequency response. . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Hz to 19,000 Hz
T.H.D.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤ 1%
Signal-to-noise ratio with microphone . . . . . . . . . . . . . . . 59 dB related to 1 Pa
AF-Output (+6 dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . balanced, microphone line
Limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . compensates variations in speaking distance, cannot be switched off
6 DIP-switches (No. 1 to 5) . . . . . . . . . . . . . . . . . . . . . . . Address of the microphone units (Binary code)
DIP-switch No. 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . no function
Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 x 3 m long cable with 15-pin Sub-D plug, microphone line, on request the
Removable terminal board with 12 connections for . . . . . Priority button
Dimensions (without microphone) . . . . . . . . . . . . . . . . . . Length: 203 mm
Weight (with connecting cable) . . . . . . . . . . . . . . . . . . . . 862 g
Ambient temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +50°C
Optional. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Piezo button with dual colour LED ring (Order # 546.658)

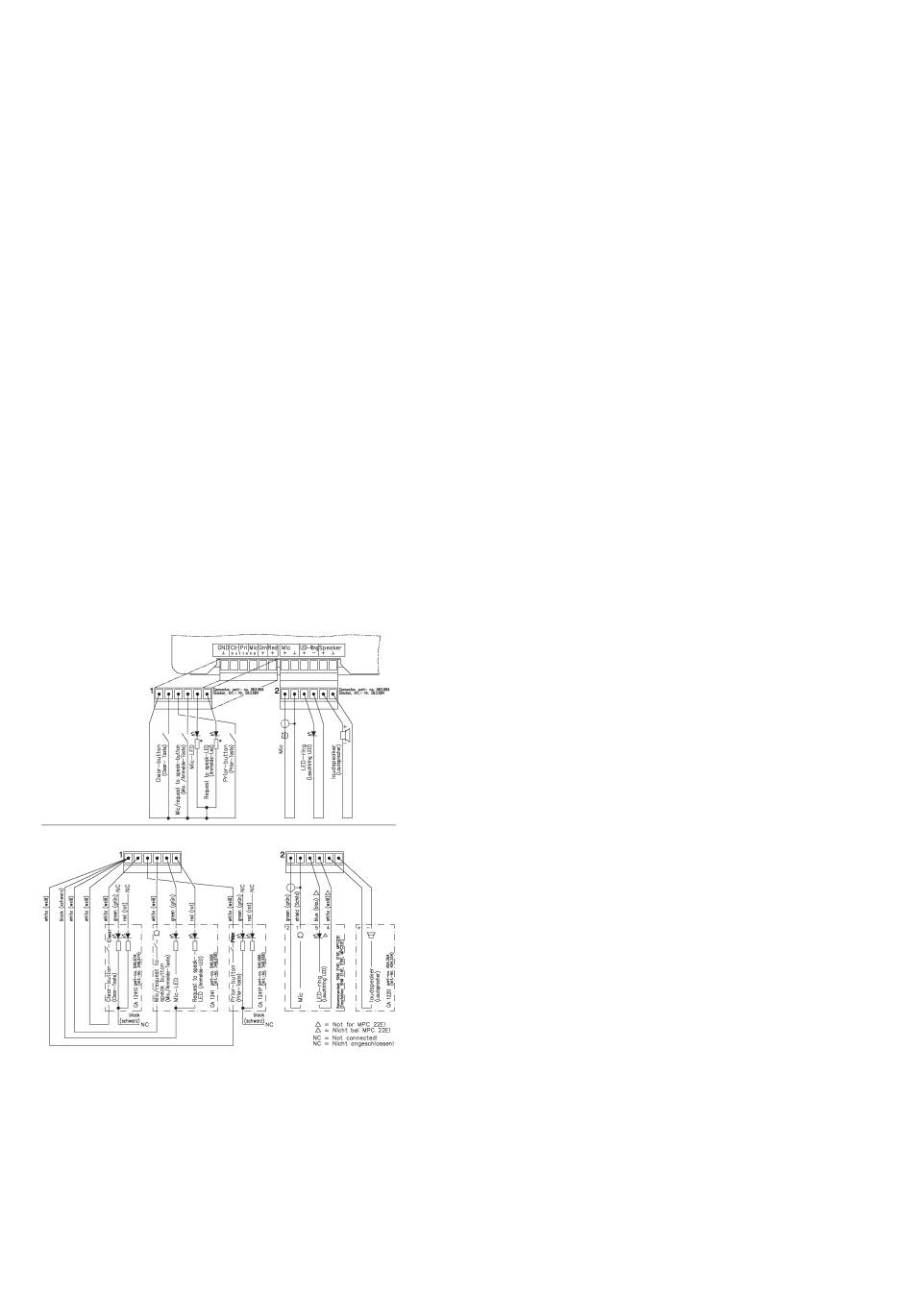

Connection MCS 563 L
ATTENTION:
For the connection of microphone units to the MCS Control Unit and for connection from microphone unit to microphone unit use only
connecting cables recommended by beyerdynamic (refer also to the chapter "Optional Accessories").
If you use other cables make sure that you use cables with the correct wiring (refer also to the chapter "Technical Specifications", otherwise the
microphone units and the control unit may be damaged. This will invalidate the guarantee.
Important:
The power cable and signal conducting cables must run in a sufficient distance to each other and to the microphone unit.
50
(only on customer's request)
cable can be supplied individually and in special lengths,
prices and more information on request
1 x 15-pin Sub-D socket, microphone line
Microphone button
Clear button
LED indication "Microphone on" (green)
24 V / 20 mA without drop resistance
LED indication "Request-to-Speak" (red)
24 V / 20 mA without drop resistance
Microphone
Loudspeaker connection
Width: 97 mm
Height: 47 mm
Piezo button with "Clear" description (Order # 546.674)
Piezo button with "Prior" description (Order # 546.666)
