OPERATION AND MAINTENANCE
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation
and maintenance of the power tool. Some illustrations in this Instruction Manual may show details
or attachments that differ from those on your own power tool.

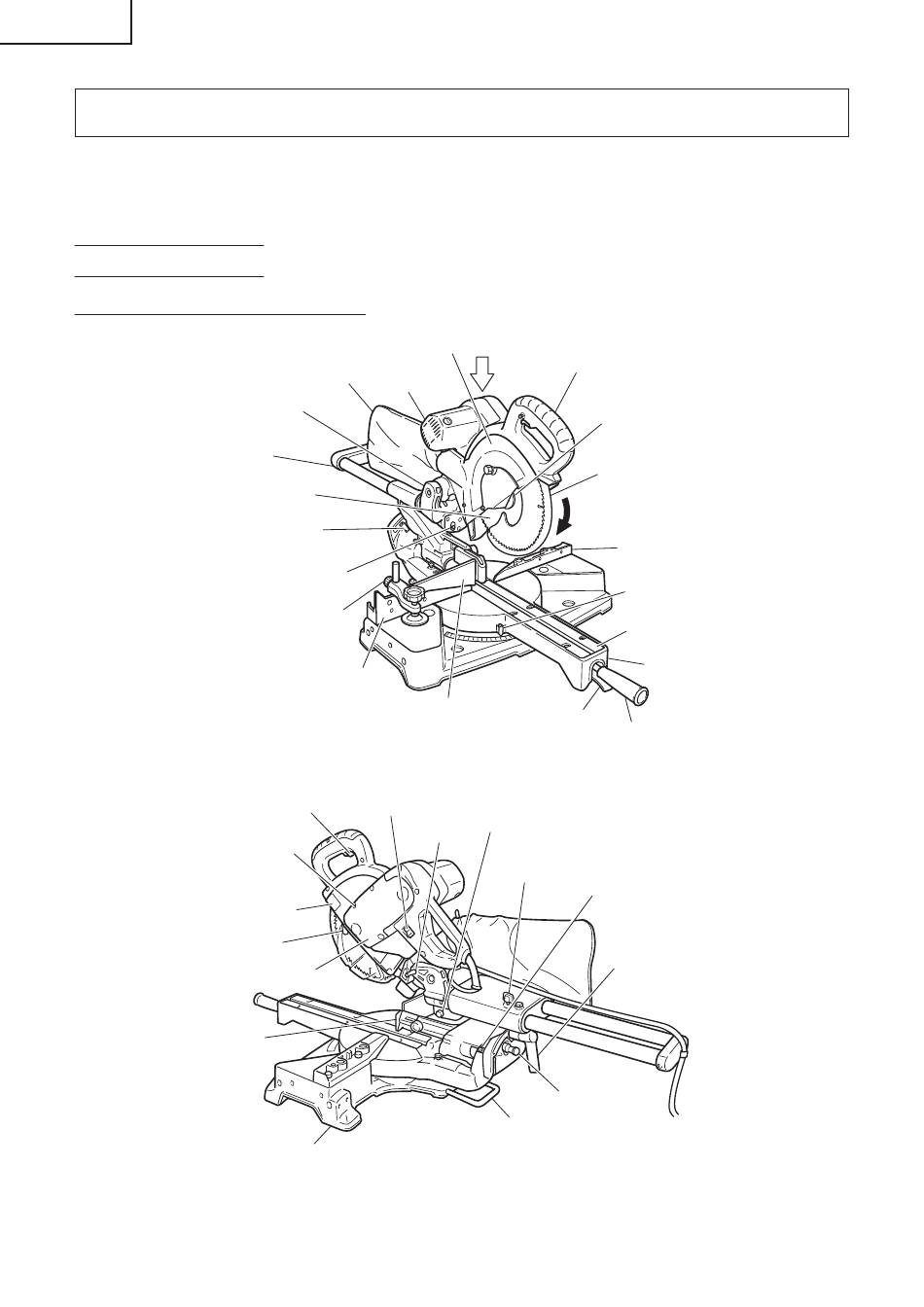

NAME OF PARTS
MODEL C10FSH/MODEL C10FSB
(For right bevel scale)
8
Dust Bag
Hinge
Holder (A)
Saw Blade
Indicator
Leser Marker
(Only C10FSH)
Vise Assembly
Fence (B)
Switch
(for Laser marker)
(Only C10FSH)
Trigger Switch
5mm Screw
Nameplate
Spindle Lock
Belt Cover
Guard
Base
Gear Case
Motor Head
Moter
Sub Fence
Fig. 1
Adjuster (Only C10FSH)
(for Laser marker)
Locking Pin
Slide Securing Knob
Fixing Pin
Holder
Fig. 2
Handle
Spindle Cover
Safety Cover
Rotation
Direction
Fence (A)
Indicator
(For miter scale)
Table Insert
Turntable
Lever
Side Handle
Indicator
(for left bevel scale)
Clamp Lever
