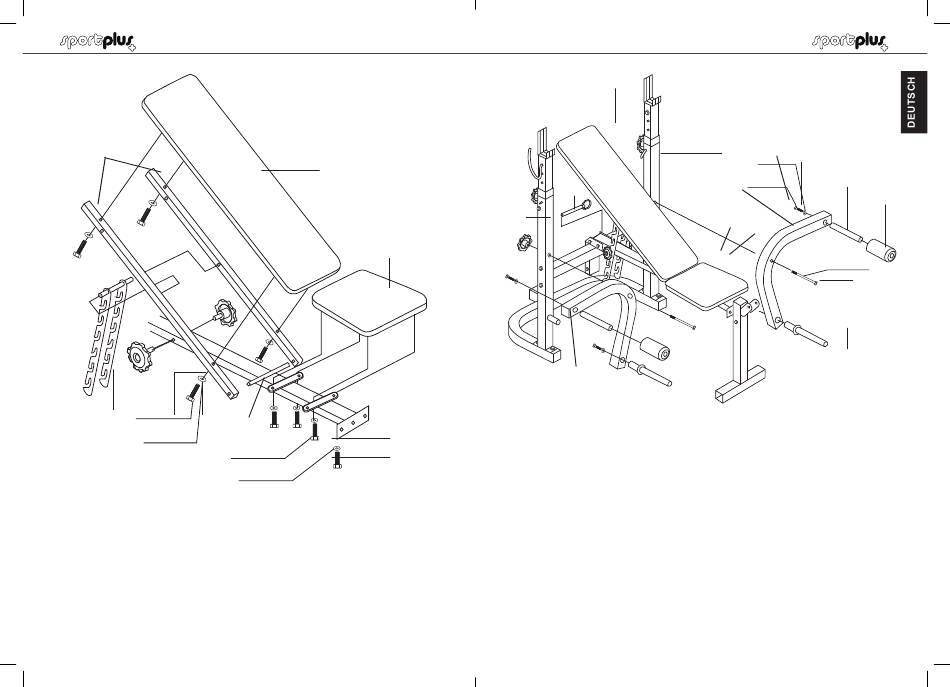

STEP 5:
• Attach the seat (11) to the center cross bar (4). Secure with 4 screws M6x16 (28)
and 4 washers M6 (34).
• Backrest: Insert the backrest adjuster (8) into the openings of the two support
frames (9). Fix the adjustable frame to the center cross bar (4) using 2 locking
knobs (36).
• Install the support frames (9) on the axle of the center cross bar (4). Align the
mounting holes of the backrest (10) with the holes of the support frame (9). Secure
with 4 sets of screws M6 x 40 (27) and washers M6 (34).
SP-WB-003-B-IM-DE+GB+FR-02.indb 32-33
10
11
4
34
28
36 x2
32
35
40
2
5
33 x4
21 x4 26 x2
STEP 6:
• Attach the right butterfly brace (6) to the right standpipe (2). Secure with 1 screw
M10 x 155 (26) and 1 locking knob (35).
• Insert the foam tube (15) into the opening of the right butterfly brace (6). Secure with
1 screw M10 x 20 (21) and 1 washer M10 (33). Then slide the padding (16) onto the
foam tube (15).
• Insert the barbell rack (14) into the opening of the right butterfly brace (6). Secure
with 1 screw M10 x 20 (21) and 1 washer M10 (33).
• Install the left butterfly brace (5) to the left standpipe (2) following the same
instructions.
• Insert the locking pins (40) into the holes on the bottom of the upper cross bar (7).
33
21
33
2
15
6
16
21
33
26
14
35 x2 40 x1
