USB INTERFACE

USB interface for updating the device firmware. In the Service menu, set the status for USB Update to Yes. When available, download the
latest firmware from the product page at www.cameolight.com, unzip it and copy the files to a folder without special characters on a USB
stick. Disconnect the Moving Head from the mains and all input connections (DMX / Ethernet), connect the USB stick to the USB interface
and reconnect the Moving Head to the mains. The USB stick is automatically recognized and shown in the display. Now navigate to the
corresponding folder on the USB stick and confirm with "ON". The update procedure begins. If updates are required for several components,
the procedure must be carried out individually for all updates. Do not remove the USB stick or disconnect the Moving Head from the mains
during the update procedure.

BATTERY-POWERED DISPLAY

The battery-powered display can be activated, even if the device is not connected to the mains. To do this, press and hold the rotary-push
encoder for approximately 2 seconds. You can now access device information to change and save system settings without mains connec-
tion. The external control of the spotlight is not activated in this case. For this reason, the display shows that there is no DMX signal even if a
DMX signal is available at the device.
14
13
LOCK UNLOCK
LOCK
UNLOCK
15

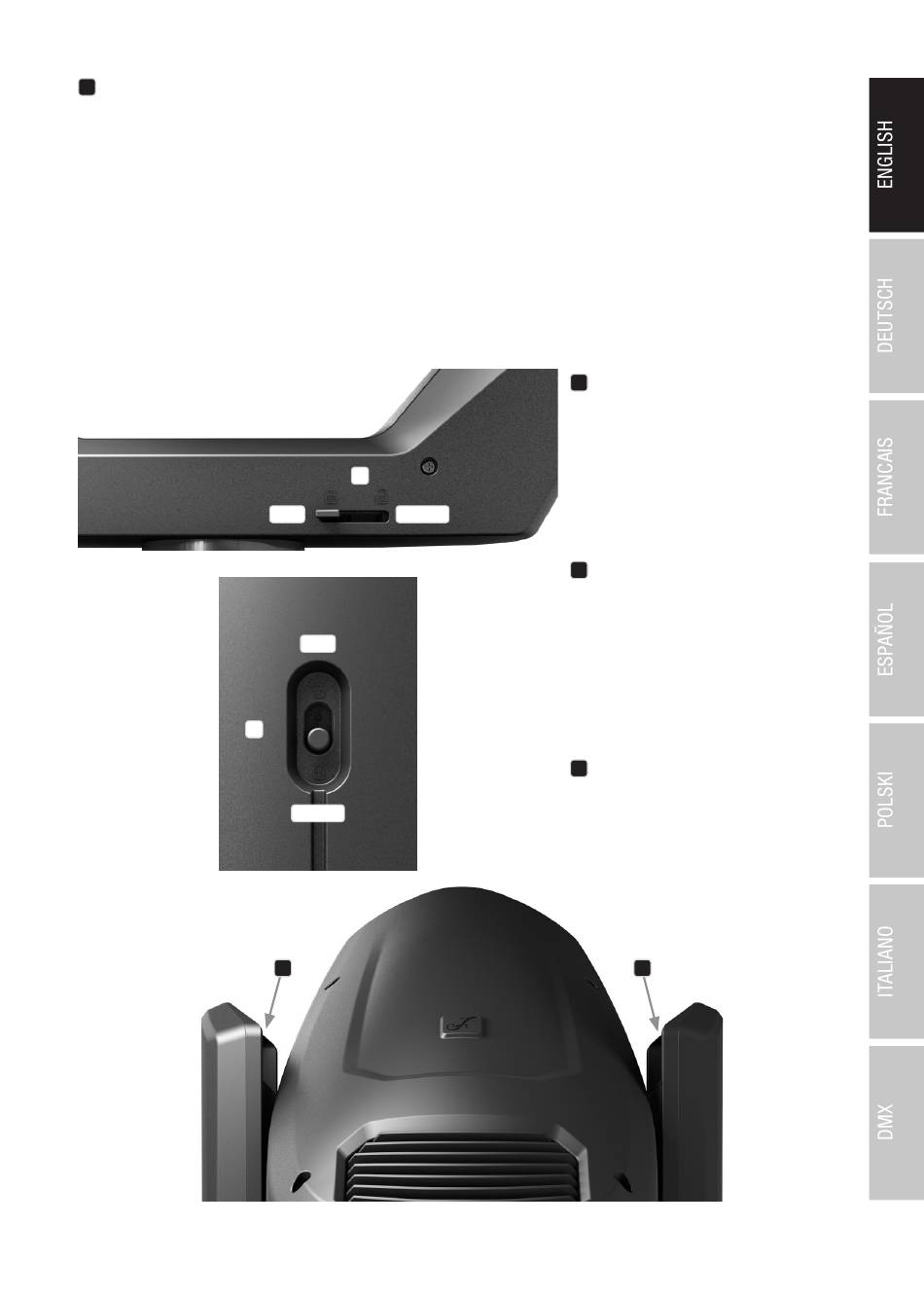

PAN LOCK
13
Mechanical locking device used to prevent the
rotation of the head in the horizontal direction
during transport. Disconnect the unit from the
mains, move the head parallel to the base (8
possible positions) and push the locking lever
in the direction of the pan rotation axis (LOCK)
to lock it in position. Unlock the device before
startup (UNLOCK).
TILT LOCK
14
Mechanical locking device used to prevent
rotation of the head in the vertical direction during
transport (7 possible positions). Disconnect the
unit from the mains and slide the locking lever
in the direction of the tilt rotation axis, moving
the head of the unit vertically until one of the 7
locking positions is found and the locking lever
engages (LOCK). Unlock the device before startup
(UNLOCK).
15 RECESSED GRIPS
In addition to the two transport handles on the
base of the unit, there are practical recessed grips
at the top of the inner sides of the two device
arms.
