CONNECTING AN ELECTRIC DRYER (cont.)

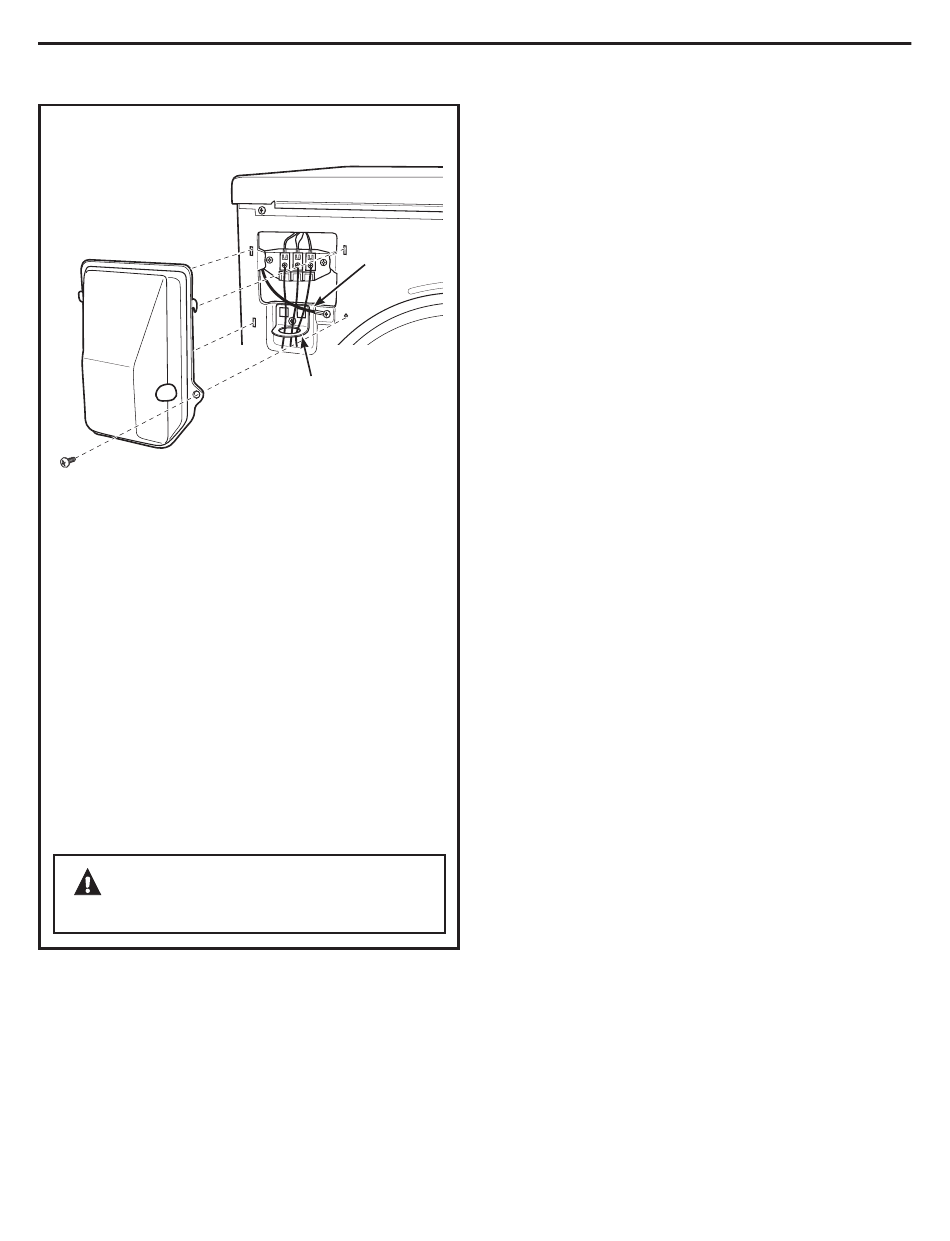

CONNECTING DRYER USING 3-WIRE
CONNECTION
1. Turn off the circuit breaker(s) (30 amp) or remove
the dryer's circuit fuse at the electrical box.
2. Be sure the dryer cord is unplugged from the
wall receptacle.
3. Remove the power cord cover located at the
upper back.
4. Bring the power cord through the bracket.
5. Connect power cord as follows:
A. Connect the 2 hot lines to the outer screws
of the terminal block (marked L1 and L2).
B. Connect the neutral (white) line to the center
of the terminal block (marked N).
6. Be sure ground strap is connected to green
ground screw on cabinet rear. Tighten all
terminal block screws (3) completely.
7. Reinstall the cover.
WARNING –
COVER OFF OF THE TERMINAL BLOCK.
Installation Instructions
Ground
strap
Bracket
NEVER LEAVE THE
16
