Aligning the racing shell (figures C and D)
1. Set the seat incline by selecting the front holes
(c, d, e, f (if available)).
2. Fix the racing shell (1) at the front to the
adapters (4) or (7) with the washer (6) or (9) and
the M8x20 screw (5) or (8).
Final installation
„ Tighten all 4 mounting screws (5) or (8) with a
tightening torque of 22 Nm +2/–3 Nm.
DANgER
Risk of serious injury if the racing shell be-
comes detached from its anchoring.
„ Use only the supplied micro­encapsulated
screws when installing the racing shell.
„ Use the supplied micro­encapsulated screws
only once.
„ Tighten all screws with the specified torque.
3.4. Fitting the protector on the HANS system
(Figure F)
NOtICE
the racing shell cover can be damaged by the
HANS system without a protector!
„ No warranty claims will be possible without the
HANS protector fitted.
„ Fit the factory­supplied protector (10) onto the
HANS system (11) using the self­adhesive
Velcro fasteners (12).
To do this, guide the restraining straps of the
HANS system through the openings provided for
that purpose on the supplied protector.
3.5. Replacing/cleaning seat cushions
(Figure E)
Refer to Page 4 for the associated draw-
ings.
Both the seat and rest cushions (2, 3) can be re­
moved for cleaning or reupholstering.
„ Pull the cushions firmly off the Velcro fastener.
The cushions can now be easily cleaned or re­
placed. See Page 14 for cleaning instructions.
4. use
Safety instructions before you start driving
DANgER
there is a danger to life if a damaged racing
shell is used when the car is driven!
„ Carefully inspect the racing shell and the
adapter for damage such as cracks, bumps,
dents or similar defects before every use.
„ If you find any damage, consult a specialist
motor sport workshop.
„ If there is damage that can affect safety, re­
place the racing shell immediately and make
sure that the damaged racing shell will not be
put back into a vehicle.
DANgER
Danger to life if a racing shell is used that is
no longer approved!
„ Use the racing shells for no longer than is
stated on the homologation sticker
(Not valid after: xxxx).
„ After this date the racing shells may never
again be used in a vehicle.

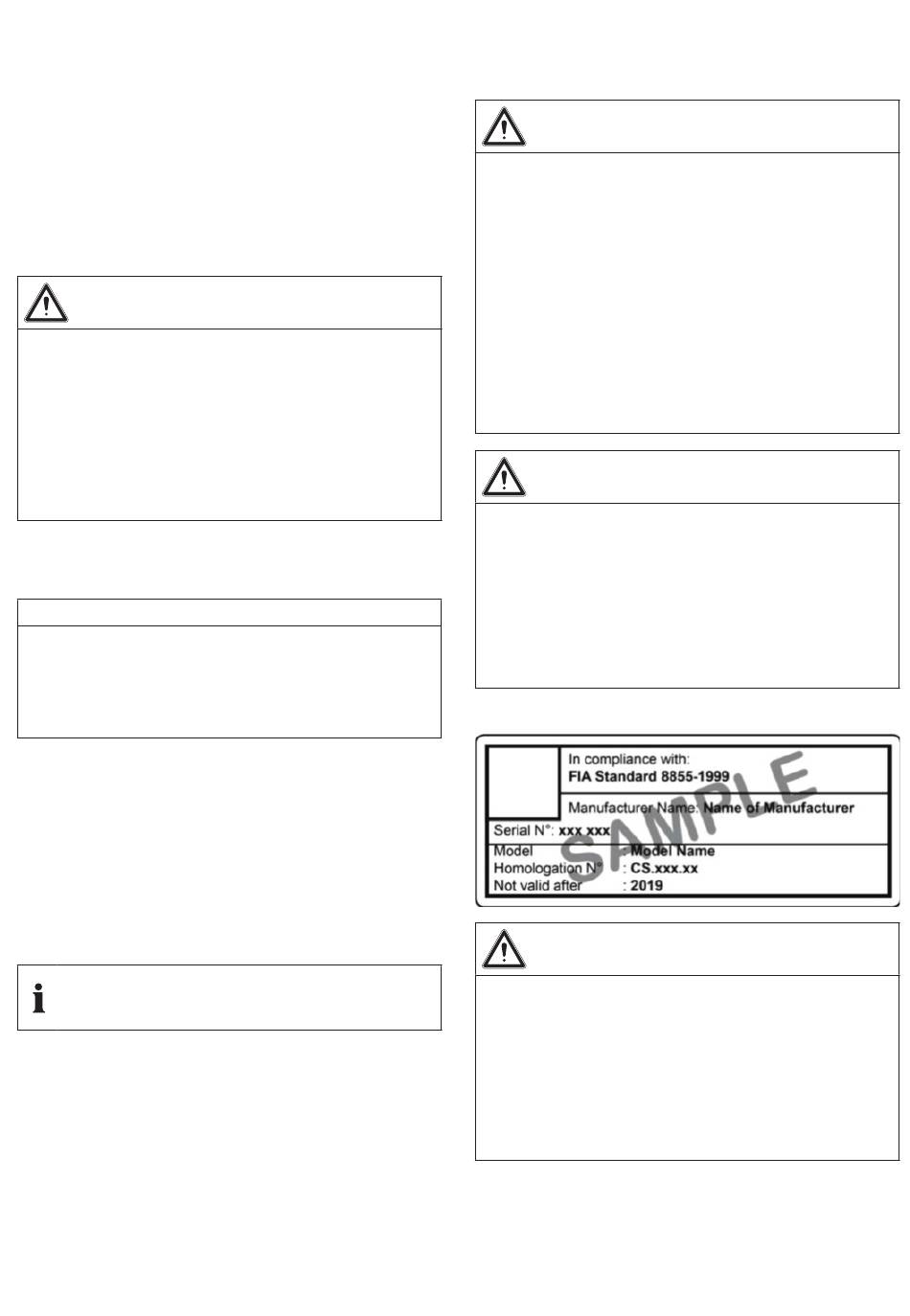

Homologation sticker
DANgER
there is a danger to life if a racing shell that
has been involved in an accident is used!
„ Racing shells that have been subjected to the
stresses of an accident (racing accident or col­
lision) must no longer be used.
„ Make sure that the damaged racing shell will
not be put back into a vehicle.
