ENGLISH
HYDRAULIC CUTTING TOOL
TYPE HT-TC026

1. GENERAL CHARACTERISTICS

– Application range: suitable for cutting steel ropes and conductors having a max. diameter
of 25 mm (see § 7).
– Rated operating pressure: ........................................................... 600 bar (8,700 psi)
– Dimensions: length ....................................................................... 382 mm (15.03 in.)
width ......................................................................... 129 mm (5.1 in.)
– Weight: ........................................................................................... 3,2 kg
– Oil: ......................................................... AGIP ARNICA 32
– Advancing speed: the tool automatically switches from a fast advancing speed of blades
to a slower cutting speed.
– Safety: the tool is provided with max pressure valve; MPC1 special manometer, is
available upon request to check the proper setting of the valve.
2. INSTRUCTIONS FOR USE
(Ref. to Fig. 1)
2.1) Setting
Insert the conductor between the blades, up to the desired cutting point.
For a running conductor, release the latch (25) and open the tool head.
Warning: fully retract the lower blade (24) before attempting to open the tool head.
With the conductor on the lower blade (24), close the tool head and fully secure the latch (25).
Before commencing the cutting operation ensure that the latch (25) is fully secured:
partial closure may damage the tool head.
2.2) Blade advancement
Operate moveable handle (40) for lower blade advancement. This fi rst stage rapidly
closes the lower blade to the conductor. Make sure that blades (21 and 24) are exactly
positioned on desired cutting point, otherwise re-open blades following instructions as
§ 2.4 and reposition the cable.
(7.1 lbs)
or
SHELL TELLUS OIL TX 32 or equivalent
3
03
40

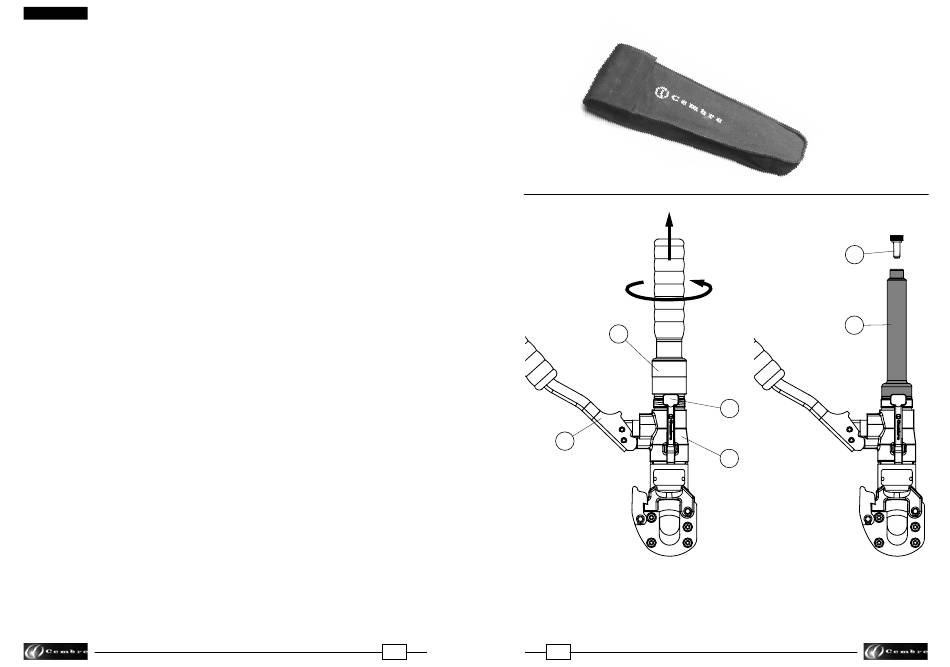

FIG. 3 TOOL POSITION FOR MAINTENANCE OPERATIONS
POSITION DE L'OUTIL POUR L'ENTRETIEN
WERKZEUG WARTUNGSPOSITION
COLOCACION PARA LAS OPERACIONES DE MANTENIMIENTO
POSIZIONAMENTO PER LE OPERAZIONI DI MANUTENZIONE
24
FIG. 2 CANVAS BAG 001
SACOCHE 001
SEGELTUCHTASCHE 001
BOLSA DE TELA 001
SACCA DI TELA 001
01
02
55
12
