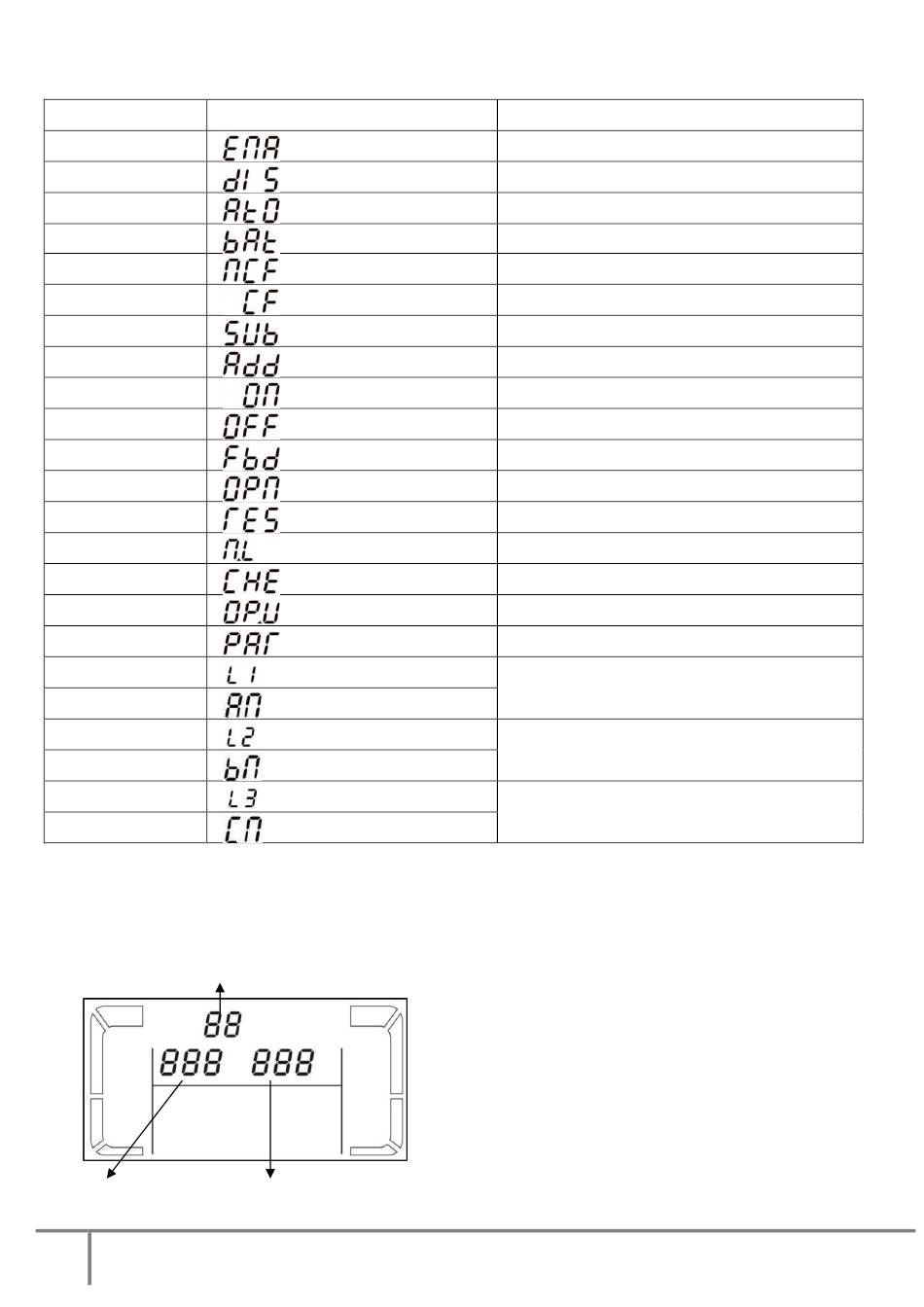

3-6. Abbreviation Meaning in LCD Display
Abbreviation

Display content

ENA
DIS
ATO
BAT
NCF
CF
SUB
ADD
ON
OFF
FBD
OPN
RES
N.L
CHE
OP.V
PAR
L1
AN
L2
BN
L3
CN

3-7. LCD Setting

There are three parameters to set up the UPS. Refer to following diagram.
Parameter 1
Parameter 2
INFOSEC UPS SYSTEM – 4 rue de la Rigotière – 44700 Orvault – France – www.infosec-ups.com
75
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 06 14 AA 59 203 46
Parameter 3
Meaning
Enable
Disable
Auto
Battery
Normal mode (not CVCF mode)
CVCF mode
Subtract
Add
On
Off
Not allowed
Allow
Reserved
Neutral line loss
Check
Output voltage
Parallel, 001 means the first UPS
The first phase
The second phase
The third phase
Parameter 1: It's for program alternatives. Refer
to below tables for the programs to set up.
Parameter 2 and parameter 3 are the setting
options or values for each program.
Note: Please select "Up" or "Down" button to
change the programs or parameters.
