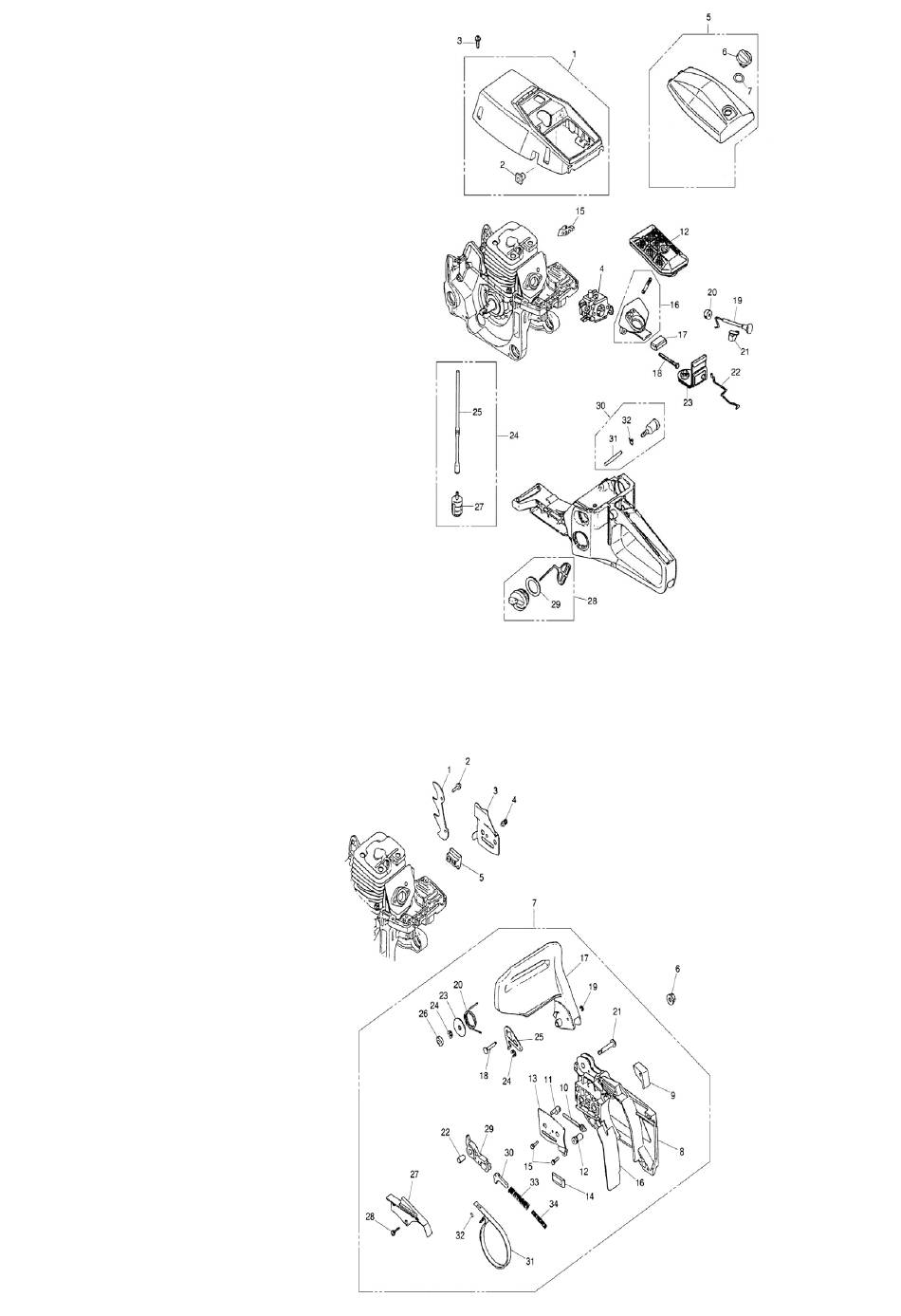

Рис.5
1 oil cap
2 oil cap gasket
3
4 oil pipe
5 oil filter
6 part 18
7 part 19
8 part 20
9 spring 4
10
11 oil pump
12 turbine
13 spring of oil pump
14 4*14 screw
15 oil pump cover
16 4*12 screw
17
18 clutch part 1
19 clutch part 2
20 clutch spring
21 clutch needle bearing
22 clutch drum
23 sprocket
24 clutch support
Рис.6
1 chain catcher
2 screw for chain catcher
3 part 18
4 4*12 screw
5 part 19
6 screw for brake assy
7 brake assy
8 brake
9
10 screw
11 screw
12 screw
13 part 20
14 part 21
15 4*10 screw
16 brake part
17 front damper
18 part 22
19 part 23
20 part 24
21 part 25
22 part 26
23 6*18*1.5 gasket
24 part 27
25 part 28
26 part 29
27 part 30
28 4*10 screw
29 part 31
30 part 32
31 brake part
32 part 33
33 spring 5
34 spring 6
