Only use accessories specifically
WARNING
recommended for this tool. Others
may be hazardous.
Blades are sharp. Keep hands away from cutting
edge. Laceration can occur.

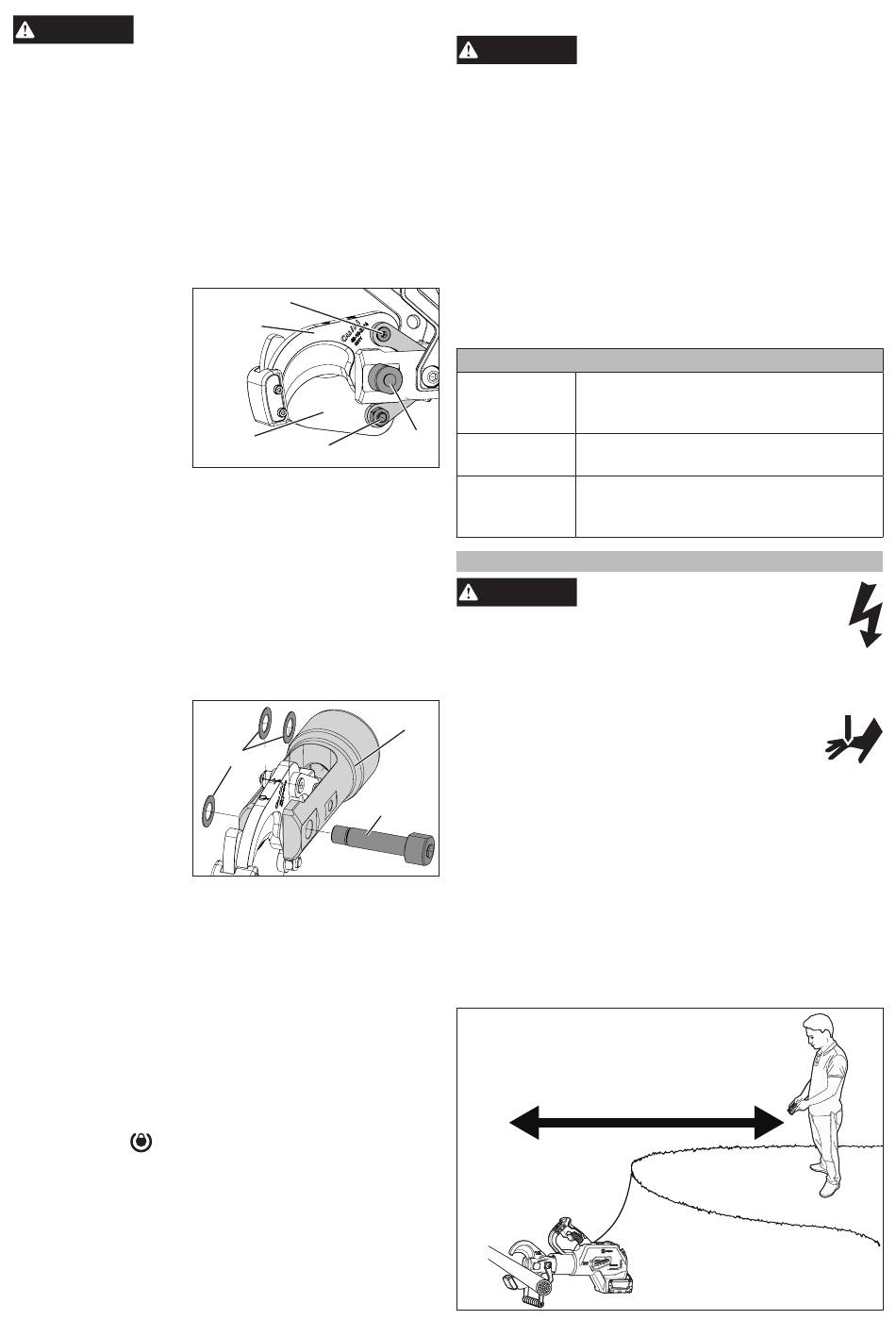

Changing the Blades
Replace the blades when they become chipped or
damaged. Always replace blades as a set. Use only
MILWAUKEE blades. Refer to "Specifications" for
replacement blade number.
1. Pull the trigger to close the blades slightly. The
locknut and 6 mm hex drive feature must be
exposed.
2. WARNING! Remove battery to avoid starting the tool.
3. Use a wrench to
remove the pivot
locknut, and Allen
key and wrench to
remove the linkage
locknuts (2). Dis-
card the pivot and
linkage locknuts.
4. Remove both the
linkage pins.
NOTE: Take notice of the blade orientation so the
new blades can be installed the same way. The
blades should be oriented so the flat sides contact
and the bevels face away from each other, like a
pair of scissors.
5. Carefully remove the blades by removing the pivot
pin from the assembly. NOTE: It may be easiest
to do so when the tool is on its side with the head
of the pivot pin facing up.
6. Install the new blades in the same orientation,
pay special attention to the washer location. See
image detailing washer locations in the assembly.
7. Slide the pivot pin
through the blades
and clevis. Re-
place the linkage
pins and torque the
linkage locknuts to
217 in-lbs. NOTE:
The pins must be
installed with the
locknuts on the in-
side of the blades, the 6 mm drive features facing
outwards.
8. Thread the pivot pin locknut onto the pivot pin.
Tighten the nut to 150 in-lbs, then back it off be-
tween 1/4 and 1/2 turn.
NOTE: To ensure proper installation, perform a test
cut. If the blades bind when opening, loosen the blade
nut slightly until the blades no longer bind.
Locking and Unlocking the Trigger
To lock the trigger, pull the trigger lock back.
To unlock the trigger, push the trigger lock to the
center position.
To lock for remote cut, pull the trigger and push the
trigger to the
position. Pull the trigger again to
release.
Linkage pin
Outside
of blade
Inside
of blade
Linkage locknut
Washers
Pivot pin
WARNING
electric shock. Check with a qualified electrician
if you are in doubt as to whether the product is
properly grounded.
To ground the tool during necessary applications:
1. WARNING! Remove battery to avoid starting the tool.
2. Remove the rubber plug from the pivot pin.
3. Attach the ground to the pivot pin using a compat-
ible threaded grounding adapter.
4. OR, use the 14-46-0452 Grounding Kit.
To learn more about the ONE-KEY™ functionality
for this tool, go to milwaukeetool.com/One-Key. To
download the ONE-KEY™ app, visit the App Store
or Google Play™ from a smart device.
Solid Blue
Pivot
Blinking Blue Tool is actively communicating with
pin
Blinking Red Tool is in security lockout and can
WARNING
damage, work on deenergized lines when
possible. Tool is not insulated. Should work
on energized lines be required, ensure all proper
precautions, including those contained in NFPA
70E, have been taken first.
Keep hands away from all cutting edges and
Clevis
moving parts. Laceration and amputation
can occur.
Always wear proper eye protection marked to
comply with ANSI Z87.1.
• Before cutting, ensure blades are properly installed.
• To set the tool on the ground, rotate the cutting head
180° to use the front handle as a "foot" and set the
tool in position on the ground.
• To hang the tool, use the front handle and tool
hanger to set the tool in a hanging position.
• Insert the workpiece squarely between the blades.
Do not attempt to make angled cuts as it will dam-
age the workpiece and blades.
6
Grounding
Improperly grounding the tool
could result in an increased risk of
ONE-KEY™
ONE-KEY™ Indicator
Wireless mode is active and
ready to be configured via the
ONE-KEY™ app.
the ONE-KEY™ app.
be unlocked by the owner via the
ONE-KEY™ app.
OPERATION
To reduce the risk of arc flash,
electric shock and property
Remote Cutting
Per NFPA 70E
®
